Productnummer: 3351654

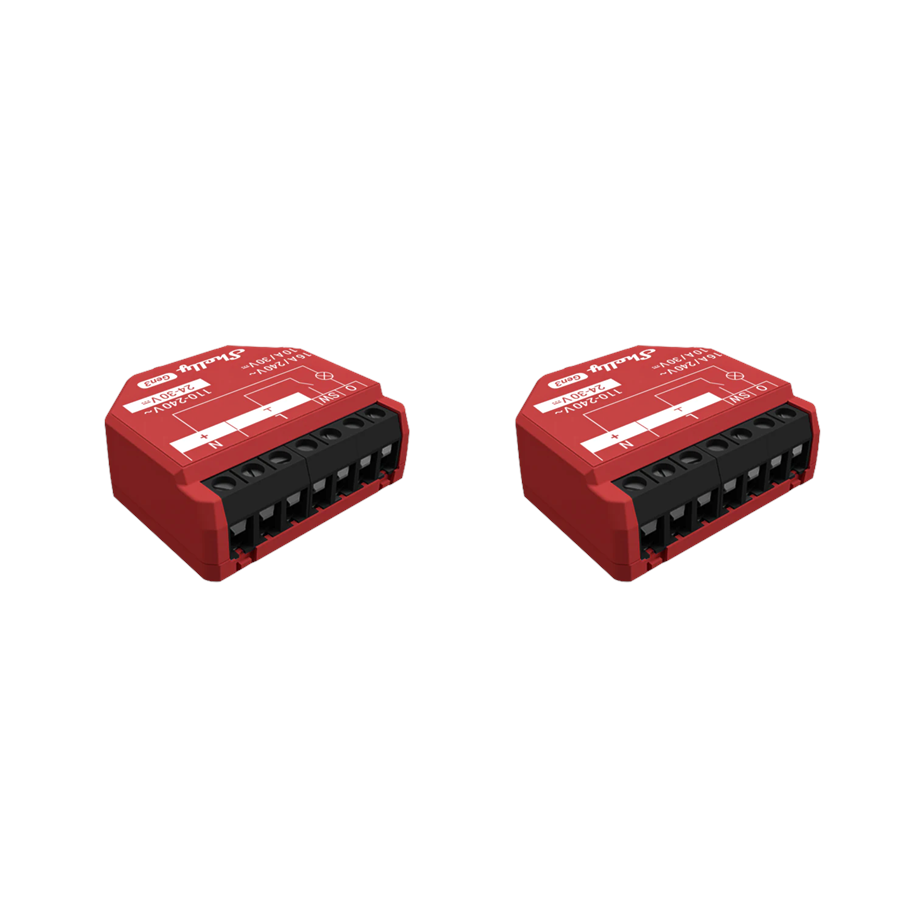

Shelly 1PM Gen3 - 2 pack

Shelly 1PM Gen3 is a WiFi-controlled 1-channel 16A relay with built-in power meter (PM = Power Metering) designed to be mounted behind the switch, socket or lamp socket and provides easy control and automation of lights, sockets and all kinds of electrical appliances. Thanks to its compact design, it fits in most wall and ceiling boxes.

Op voorraad
33,65 € 27,81 € excl. BTW
Goedkoopste privé verzending 6,99 €
5 stks Op voorraad - 2-3 werkdagen levertijd

Wi-Fi-operated smart switch with power metering, 1 channel 16A. Shelly 1PM Gen3 is a Wi-Fi-operated smart switch for remote appliance control and precise power monitoring. Automate your home devices in less than 10 minutes, and control and monitor them from anywhere. Compact enough to fit behind most wall switches and sockets, it is retrofit and compatible with your existing smart home system. Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization. New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB. Improved durability of terminals. High security. Wi-Fi range extender & Bluetooth gateway. Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates. No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.

Producent
Productnummer
3351654
Model
Shelly_1PM_Gen3_2er
EAN
3800235261804
Neem contact op met de fabrikant
Productbeschrijving
Shelly 1PM Gen3 - slimme schakelaar - 802.11 b/g/n, Bluetooth 4.2 - rood, zwart (pak van 2)
Producttype
Slimme schakelaar
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
EU-gegevenswet
Https://kb.shelly.cloud/knowledge-base/eu-data-act
Plaatsing/montage
Wandmontage console, op muurdoos te monteren
Functies
Meten van vermogen, lichtregeling
Geïntegreerde sensoren
Temperatuursensor
Geïntegreerde componenten
Energie meter
Voeding
Bekabeld
Internet van de Dingen (IvD)-platform
Google Home, Matter
Connectiviteit
Draadloos - 802.11 b/g/n, Bluetooth 4.2
Frequentieband
2401 - 2483 Mhz, 2400 - 2483.5 Mhz
Kleur
Rood, zwart
Afmetingen (BxDxH)
4.2 cm x 1.6 cm x 3.7 cm

Algemeen

Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Producttype
Slimme schakelaar
EU-gegevenswet
Https://kb.shelly.cloud/knowledge-base/eu-data-act
Functies
Meten van vermogen, lichtregeling
Geïntegreerde componenten
Energie meter
Geïntegreerde sensoren
Temperatuursensor
Voeding
Bekabeld
Plaatsing/montage
Wandmontage console, op muurdoos te monteren
Maximale belasting
Weerstand biedend
Capacitive
Inductief
Connectiviteit
Draadloos - Bluetooth 4.2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Max. bereik binnenshuis
30 m
Max. bereik buitenshuis
50 m
Frequentieband
2401 - 2483 Mhz, 2400 - 2483.5 Mhz
Interface Details
Schroefaansluiting
Relaisuitgang
Functies
Stroomcontrole, energiebesparend, oververhittingsbeveiliging, scripting ondersteuning, planningsfunctie, externe toegang, overbelastingsbeveiliging, overstroombeveiliging, amperemeterfunctie, voltmetermodus, hersteltbaar MQTT-ondersteuning, geschikt voor Matter, HTTP-ondersteuning, ondersteunt HTTPS, HTTPS-Webhook, UDP-ondersteuning, ondersteunt native KNX IP

Internet of Things (IoT)

Geschikt voor Internet of Things (IoT)
Ja
Compatibele toepassing
Samsung SmartThings, Amazon Alexa
Platform
Google Home, Matter

Processor

CPU
ESP-Shelly C38F

Flashgeheugen

Grootte geïnstalleerd
8 MB

Diversen

Productmateriaal
Plastic
Kleur
Rood, zwart
Vereiste netspanning
AC 110-240/ DC 24-30 V
Nominale stroom
16 A
Garantie
3 jaar garantie
Energieverbruik tijdens gebruik
1.2 watt
Conformiteitsnormen
EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU, RoHS 2 (2011/65/EU)

Afmetingen & gewicht

Breedte
4.2 cm
Diepte
1.6 cm
Hoogte
3.7 cm
Gewicht
27 g

Omgevingsparameters

Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
30 - 70% RH

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
