Productnummer: 2790280
Intel Compute Module
Server, insteekmodule 2-weg, zonder CPU, RAM 0 GB, geen HDD, Gigabit Ethernet, 10 Gigabit Ethernet, monitor: geen
1.079,32 €
892,00 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 15 - 16 werkdagen levertijd

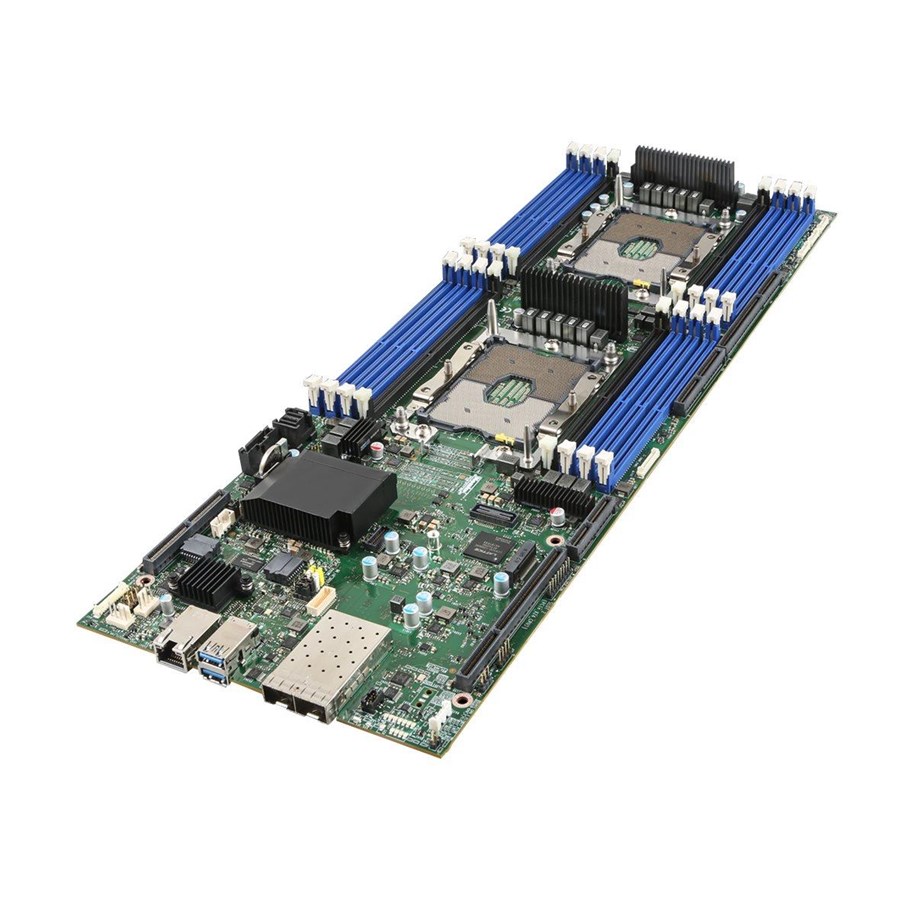

The Intel Server Board S2600BP family is purpose-built for breakthrough performance, compute density, high-speed networking and I/O with stability and increased uptime, making it ideal for High Performance Computing, storage and cloud.
Producent
Productnummer
2790280
Model
HNS2600BPBR
EAN
0675901714259
Naar de website van de producent
Neem contact op met de fabrikant
Type processor
Nee
Chipset moederbord
Intel® C621
Processor socket
LGA 3647 (Socket P)
Aantal ondersteunde processoren
2
ECC ondersteund door processor
Ja
Aantal DIMM sloten
16
Ondersteunde geheugen types
DDR4-SDRAM
Maximum intern geheugen
3 TB
Ondersteunende RDIMM klok snelheden
2133,2400,2666,2933 MHz
Geheugen kanaal
Dodeca-kanaal
ECC
Ja
Soorten RAID
0, 1, 5, 10, 50
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Aantal USB 2.0-poorten
0
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB-aansluitingen
2
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
VGA (D-Sub)poort(en)
1
Seriële poort(en)
1
Grafische uitvoer
VGA
PCI Express slots versie
3.0
Soort optische drive
Nee
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
aantal QPI links
2
Ingebouwde opties beschikbaar
Nee
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatibele besturingssystemen
Windows Server 2016*|VMware*|Ubuntu*
Code geharmoniseerd systeem (HS)
84713000
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Optane™ Memory Ready
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Type behuizing
Rack (2U)
Kleur van het product
Grijs
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Type koeling
Actief
Thermal Design Power (TDP)
165 W
Verpakkingsinhoud
(1) 1U node tray
(1) Intel® Server Board S2600BPBR
(1) Power Docking Board FHWBPNPB
(3) 40x56mm dual rotor managed fans FXX4056DRFAN2
(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS
(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS
(1) Air duct
(1) External VGA port bracket
(1) Slot 1 riser card
(1) Slot 2 riser card w/80mm M.2 SSD slot.
(1) Bridge Board Options: AHWBPBGB, AHWBP12GBGB, AHWBP12GBGBR5 or AHWBP12GBGBIT
Ingebouwde grafische adapter
Nee
Status
Launched
Processor
Type processor
Nee
Chipset moederbord
Intel® C621
Processor socket
LGA 3647 (Socket P)
Aantal ondersteunde processoren
2
ECC ondersteund door processor
Ja
Geheugen
Aantal DIMM sloten
16
Ondersteunde geheugen types
DDR4-SDRAM
Maximum intern geheugen
3 TB
Ondersteunende RDIMM klok snelheden
2133,2400,2666,2933 MHz
Geheugen kanaal
Dodeca-kanaal
ECC
Ja
Opslagmedia
Soorten RAID
0, 1, 5, 10, 50
Netwerk
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Poorten & interfaces
Aantal USB 2.0-poorten
0
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB-aansluitingen
2
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
VGA (D-Sub)poort(en)
1
Seriële poort(en)
1
Grafische uitvoer
VGA
Uitbreidingsmodules
PCI Express slots versie
3.0
Kenmerken
Soort optische drive
Nee
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
aantal QPI links
2
Ingebouwde opties beschikbaar
Nee
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatibele besturingssystemen
Windows Server 2016*|VMware*|Ubuntu*
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84713000
Processor speciale functies
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Optane™ Memory Ready
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Design
Type behuizing
Rack (2U)
Kleur van het product
Grijs
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Type koeling
Actief
Energie
Thermal Design Power (TDP)
165 W
Verpakking
Verpakkingsinhoud
(1) 1U node tray
(1) Intel® Server Board S2600BPBR
(1) Power Docking Board FHWBPNPB
(3) 40x56mm dual rotor managed fans FXX4056DRFAN2
(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS
(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS
(1) Air duct
(1) External VGA port bracket
(1) Slot 1 riser card
(1) Slot 2 riser card w/80mm M.2 SSD slot.
(1) Bridge Board Options: AHWBPBGB, AHWBP12GBGB, AHWBP12GBGBR5 or AHWBP12GBGBIT
Overige specificaties
Ingebouwde grafische adapter
Nee
Status
Launched
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
