Productnummer: 2774071
Intel Compute Module
Server, insteekmodule, 2-weg, zonder CPU tot, RAM 0 GB, geen HDD, Gigabit Ethernet, 10 Gigabit Ethernet, monitor: geen
1.039,93 €
859,45 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 15 - 16 werkdagen levertijd

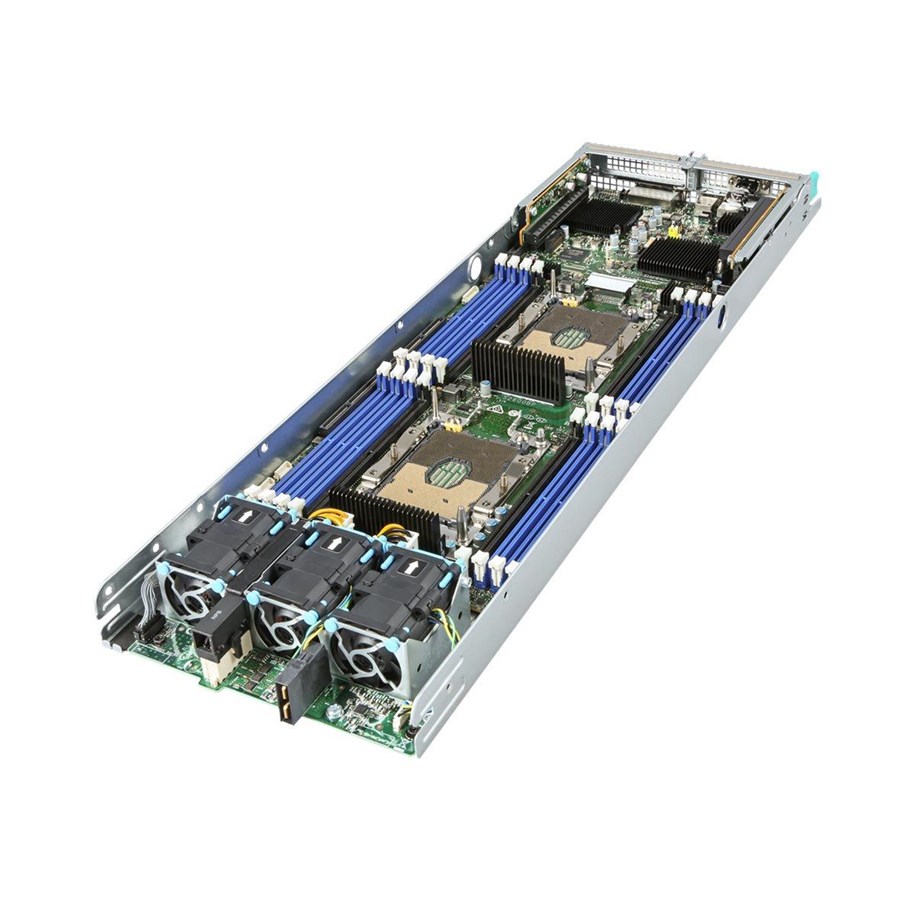

The Intel Compute Module HNS2600BPSR is a blade server designed to offer performance, scalability, and connectivity for your data center needs. With support for 2-way server scalability and upgradability, it ensures your infrastructure can keep pace with your business growth. The module features dual SFP+ Ethernet ports, providing high-speed 10 Gigabit Ethernet connectivity for demanding network environments. Memory demands are met with 16 DIMM slots that support Load-Reduced DIMM (LRDIMM) and registered DDR4 SDRAM, offering a high-capacity and reliable memory solution. Storage flexibility is ensured with an 8-channel Serial ATA controller that supports various RAID configurations, including RAID 0, 1, 10, 5, and 50, catering to diverse storage requirements. Additionally, the integrated BMC with IPMI 2.0 support offers comprehensive remote management capabilities, allowing for efficient monitoring and management of server resources. This server module is an ideal choice for businesses looking for a scalable, high-performance, and manageable server solution.
Producent
Productnummer
2774071
Model
HNS2600BPSR
EAN
0675901714266
Naar de website van de producent
Neem contact op met de fabrikant
Type processor
Nee
Chipset moederbord
Intel C622
Processor socket
LGA 3647 (Socket P)
Aantal ondersteunde processoren
2
ECC ondersteund door processor
Ja
Aantal DIMM sloten
16
Ondersteunde geheugen types
DDR4-SDRAM
Maximum intern geheugen
3 TB
Ondersteunende RDIMM klok snelheden
2666,2133,2933,2400 MHz
Geheugen kanaal
Dodeca-kanaal
ECC
Ja
Soorten RAID
0, 1, 50, 5, 10
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Aantal USB 2.0-poorten
0
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB-aansluitingen
2
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
VGA (D-Sub)poort(en)
1
Seriële poort(en)
1
Grafische uitvoer
VGA
PCI Express slots versie
3.0
Soort optische drive
Nee
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
aantal QPI links
2
Ingebouwde opties beschikbaar
Nee
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatibele besturingssystemen
Windows Server 2016*|VMware*|Ubuntu*
Code geharmoniseerd systeem (HS)
84713000
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Optane™ Memory Ready
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Type behuizing
Rack (2U)
Kleur van het product
Grijs
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Type koeling
Actief
Thermal Design Power (TDP)
165 W
Verpakkingsinhoud
(1) 1U node tray
(1) Intel® Server Board S2600BPSR
(1) Power Docking Board FHWBPNPB
(3) 40x56mm dual rotor managed fans FXX4056DRFAN2
(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS
(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS
(1) Air duct
(1) External VGA port bracket
(1) Slot 2 riser card w/80mm M.2 SSD slot.
Required Items – Sold Separately:
(1) bridge board option - AHWBPBGB, AHWBP12GBGB, AHWBP12GBGBR5 OR AHWBP12GBGBIT;
Ingebouwde grafische adapter
Nee
Status
Launched
Processor
Type processor
Nee
Chipset moederbord
Intel C622
Processor socket
LGA 3647 (Socket P)
Aantal ondersteunde processoren
2
ECC ondersteund door processor
Ja
Geheugen
Aantal DIMM sloten
16
Ondersteunde geheugen types
DDR4-SDRAM
Maximum intern geheugen
3 TB
Ondersteunende RDIMM klok snelheden
2666,2133,2933,2400 MHz
Geheugen kanaal
Dodeca-kanaal
ECC
Ja
Opslagmedia
Soorten RAID
0, 1, 50, 5, 10
Netwerk
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Poorten & interfaces
Aantal USB 2.0-poorten
0
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB-aansluitingen
2
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
VGA (D-Sub)poort(en)
1
Seriële poort(en)
1
Grafische uitvoer
VGA
Uitbreidingsmodules
PCI Express slots versie
3.0
Kenmerken
Soort optische drive
Nee
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
aantal QPI links
2
Ingebouwde opties beschikbaar
Nee
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatibele besturingssystemen
Windows Server 2016*|VMware*|Ubuntu*
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84713000
Processor speciale functies
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Optane™ Memory Ready
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Design
Type behuizing
Rack (2U)
Kleur van het product
Grijs
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Type koeling
Actief
Energie
Thermal Design Power (TDP)
165 W
Verpakking
Verpakkingsinhoud
(1) 1U node tray
(1) Intel® Server Board S2600BPSR
(1) Power Docking Board FHWBPNPB
(3) 40x56mm dual rotor managed fans FXX4056DRFAN2
(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS
(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS
(1) Air duct
(1) External VGA port bracket
(1) Slot 2 riser card w/80mm M.2 SSD slot.
Required Items – Sold Separately:
(1) bridge board option - AHWBPBGB, AHWBP12GBGB, AHWBP12GBGBR5 OR AHWBP12GBGBIT;
Overige specificaties
Ingebouwde grafische adapter
Nee
Status
Launched
