Productnummer: 2774067

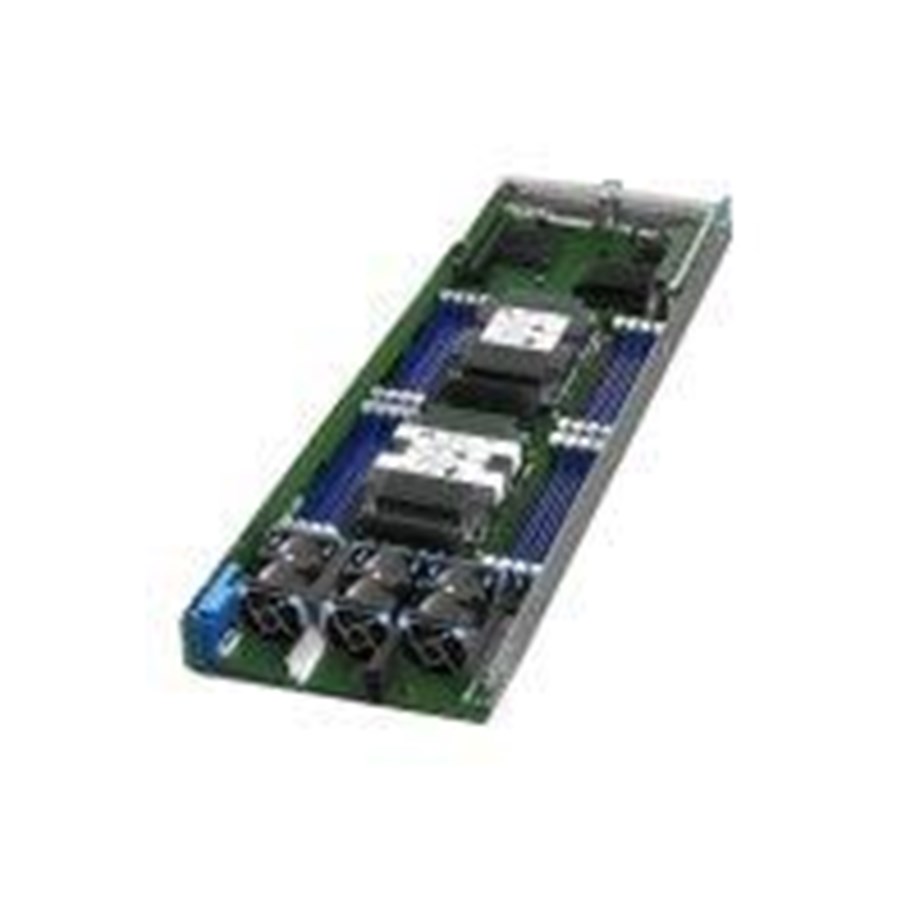

Intel Compute Module
Server, insteekmodule, 2-weg, zonder CPU tot, RAM 0 GB, geen HDD, Gigabit Ethernet, 10 Gigabit Ethernet, monitor: geen
1.341,89 €
1.109,00 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 15 - 16 werkdagen levertijd
The Intel Compute Module HNS2600BPB24R is a powerful, blade form factor server designed to meet the needs of modern data centers and high-demand computing environments. With no CPU included, it offers the flexibility to customize the processing power to match specific requirements. The module supports 2-way server scalability and is equipped with 16 DIMM slots for DDR4 SDRAM, ensuring ample memory capacity for even the most memory-intensive applications. Networking is made robust with dual 10 Gigabit Ethernet ports and an integrated BMC with IPMI 2.0 for remote management. Storage flexibility is a key feature, with support for up to 8 Serial ATA-600 channels and various RAID configurations, providing reliable data storage options. Additionally, the server's security is bolstered by a Trusted Platform Module (TPM 2.0) security chip, safeguarding data against external threats. This server module is an ideal choice for businesses looking for a scalable, secure, and high-performance computing solution.
Producent
Productnummer
2774067
Model
HNS2600BPB24R
Naar de website van de producent
Neem contact op met de fabrikant
Type processor
Nee
Chipset moederbord
Intel® C621
Processor socket
LGA 3647 (Socket P)
Aantal ondersteunde processoren
2
ECC ondersteund door processor
Ja
Aantal DIMM sloten
16
Ondersteunde geheugen types
DDR4-SDRAM
Maximum intern geheugen
3 TB
Ondersteunende RDIMM klok snelheden
2133,2400,2666,2933 MHz
Geheugen kanaal
Dodeca-kanaal
ECC
Ja
Soorten RAID
0, 1, 5, 10, 50
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Aantal USB 2.0-poorten
0
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB-aansluitingen
2
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
VGA (D-Sub)poort(en)
1
Seriële poort(en)
1
Grafische uitvoer
VGA
PCI Express slots versie
3.0
Soort optische drive
Nee
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
aantal QPI links
2
Ingebouwde opties beschikbaar
Nee
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatibele besturingssystemen
Windows Server 2016*|VMware*|Ubuntu*
Code geharmoniseerd systeem (HS)
84713000
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Optane™ Memory Ready
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Type behuizing
Rack (2U)
Kleur van het product
Grijs
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Type koeling
Actief
Thermal Design Power (TDP)
165 W
Verpakkingsinhoud
(1) 1U node tray
(1) Intel® Server Board S2600BPBR
(1) Power Docking Board FHWBPNPB24
(3) 40x56mm dual rotor managed fans FXX4056DRFAN2
(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS
(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS
(1) Air duct
(1) External VGA port bracket
(1) Slot 1 riser card
(1) Slot 2 riser card w/80mm M.2 SSD slot.
(1) bridge board option - AHWBPBGB24, AHWBPBGB24R OR AHWBPBGB24P;
Ingebouwde grafische adapter
Nee
Status
Launched
Processor
Type processor
Nee
Chipset moederbord
Intel® C621
Processor socket
LGA 3647 (Socket P)
Aantal ondersteunde processoren
2
ECC ondersteund door processor
Ja
Geheugen
Aantal DIMM sloten
16
Ondersteunde geheugen types
DDR4-SDRAM
Maximum intern geheugen
3 TB
Ondersteunende RDIMM klok snelheden
2133,2400,2666,2933 MHz
Geheugen kanaal
Dodeca-kanaal
ECC
Ja
Opslagmedia
Soorten RAID
0, 1, 5, 10, 50
Netwerk
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Poorten & interfaces
Aantal USB 2.0-poorten
0
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB-aansluitingen
2
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
VGA (D-Sub)poort(en)
1
Seriële poort(en)
1
Grafische uitvoer
VGA
Uitbreidingsmodules
PCI Express slots versie
3.0
Kenmerken
Soort optische drive
Nee
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
aantal QPI links
2
Ingebouwde opties beschikbaar
Nee
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatibele besturingssystemen
Windows Server 2016*|VMware*|Ubuntu*
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84713000
Processor speciale functies
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Optane™ Memory Ready
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Design
Type behuizing
Rack (2U)
Kleur van het product
Grijs
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Type koeling
Actief
Energie
Thermal Design Power (TDP)
165 W
Verpakking
Verpakkingsinhoud
(1) 1U node tray
(1) Intel® Server Board S2600BPBR
(1) Power Docking Board FHWBPNPB24
(3) 40x56mm dual rotor managed fans FXX4056DRFAN2
(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS
(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS
(1) Air duct
(1) External VGA port bracket
(1) Slot 1 riser card
(1) Slot 2 riser card w/80mm M.2 SSD slot.
(1) bridge board option - AHWBPBGB24, AHWBPBGB24R OR AHWBPBGB24P;
Overige specificaties
Ingebouwde grafische adapter
Nee
Status
Launched
