Productnummer: 3087794

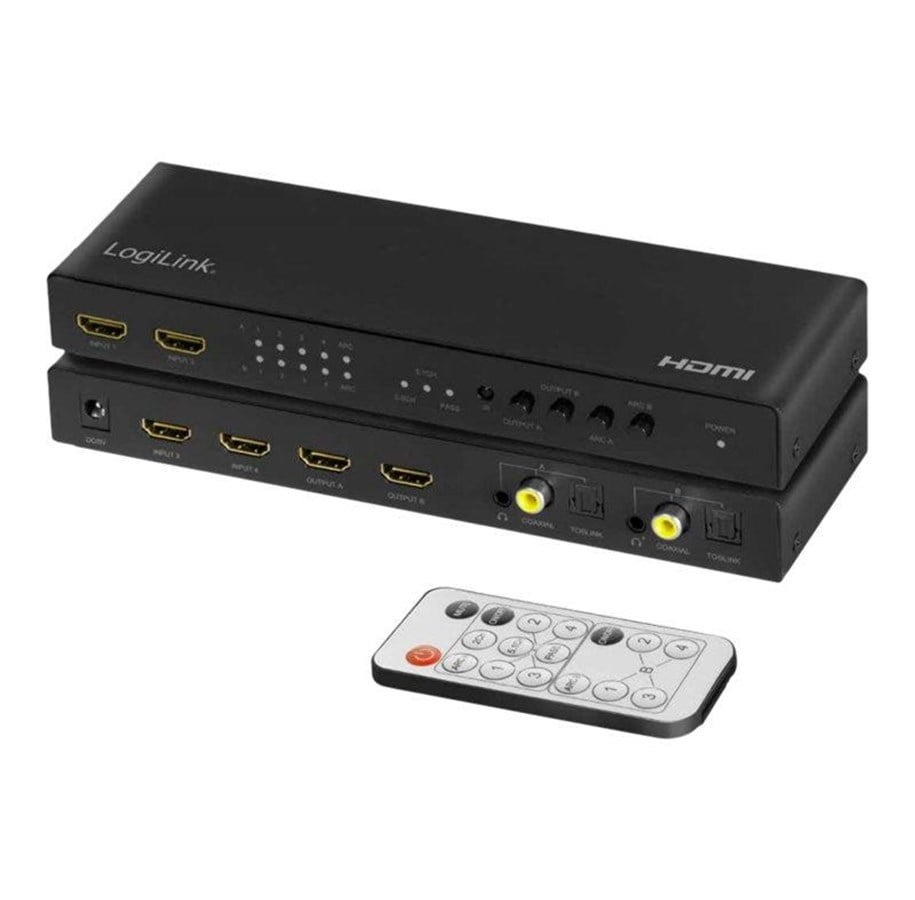

LogiLink HDMI Schakelaar 4x2-Port matrix 4K/60 Hz HDR ARC extract scaler RC

Video/audio-schakelaar, desktop

119,89 € 99,08 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 7 - 8 werkdagen levertijd
Inclusief oplader
Charger included

The LogiLink 4K HDMI matrix switch combines the advantages of a simple HDMI switch and a HDMI splitter. It routes one or two HDMI video signals from four selectable input signals to one or two selectable HDMI displays each. Control the unit remotely for maximum flexibility for all connected systems. All inputs are suitable for HD video sources such as video camera, HD DVD, receiver, set-top boxes, game consoles, etc. Thanks to Ultra HD (4K/60 Hz) experience media content in brilliantly sharp resolution. The integrated downscaler function supports the display of 4K content on Full HD displays, in addition, both 4K and Full HD displays can be operated simultaneously with support for HDCP 2.2, HDR, CEC as well as 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD as well as the connection of an external AV receiver (ARC), also leaves nothing to be desired.

Producent
Productnummer
3087794
Model
HD0049
EAN
4052792062472
Naar de website van de producent
Productbeschrijving
LogiLink 4K 4x2 HDMI Matrix Switch - video/audio-schakelaar
Type apparaat
Video/audio-schakelaar
Subtype
HDMI
Voorzieningen
In overeenstemming met de HDCP-norm, 4K resolutie-ondersteuning, DTS-ondersteuning, ondersteunt Dolby Digital, DTS-HD Master Audio support, Dolby TrueHD support, 3D-ondersteuning
Conformiteitsnormen
HDCP 2.2
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
21 cm x 6.6 cm x 2.6 cm
Gewicht
340 g

Algemeen

Type apparaat
Video/audio-schakelaar
Type bijvoegsel
Desktop
Subtype
HDMI
Max. resolutie
4K @ 60 Hz
Max. bandbreedte video
600 MHz
Voorzieningen
In overeenstemming met de HDCP-norm, 4K resolutie-ondersteuning, DTS-ondersteuning, ondersteunt Dolby Digital, DTS-HD Master Audio support, Dolby TrueHD support, 3D-ondersteuning
Conformiteitsnormen
HDCP 2.2
Statuslampjes
Voeding, ARC

Uitbreiding / Aansluiting

Interfaces
4 x HDMI-ingang
2 x HDMI-uitgang
2 x Coax
2 x TOSLINK output
2 x audio-uitgang ministekker

Stroom

Voeding
Externe stroomadapter
Geleverde energie
5 V - 1 A
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Energieverbruik tijdens gebruik
5 Watt

Diversen

Meegeleverde accessoires
Afstandsbediening
Conformiteitsnormen
DDC, CEC, RoHS

Afmetingen & gewicht

Breedte
21 cm
Diepte
6.6 cm
Hoogte
2.6 cm
Gewicht
340 g

Afmetingen & gewicht (transport)

Verzendbreedte
24.3 cm
Verzenddiepte
19.6 cm
Verzendhoogte
6 cm
Verzendgewicht
600 g

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
70 °C
Luchtvochtigheidsgraad bij gebruik
10 - 85% (niet condenserend)
Min. opslagtemperatuur
-10 °C
Max. opslagtemperatuur
80 °C
Luchtvochtigheidsgraad bij opslaan
5 - 90% (niet condenserend)
