Productnummer: 2730845

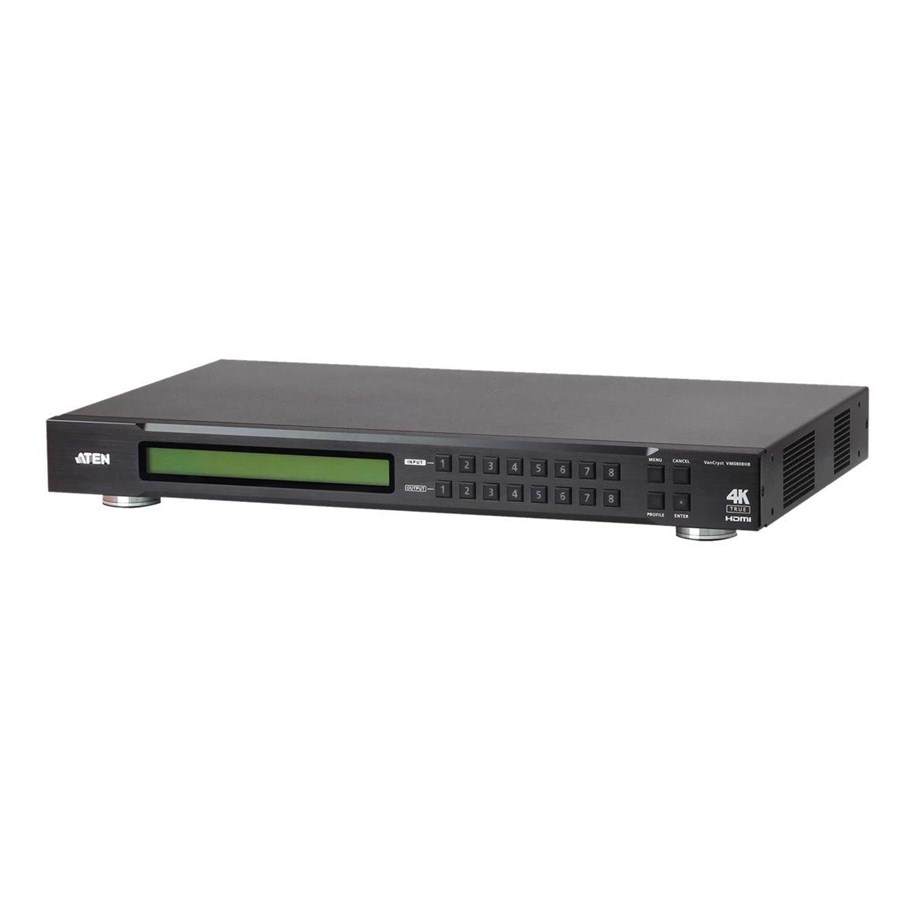

ATEN VanCryst VM0808HB 8 x 8 True 4K HDMI Matrix Switch

Video/audio-schakelaar, desktop, rack-uitvoering

1.115,77 € 922,12 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd

ATEN's VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Producent
Productnummer
2730845
Model
VM0808HB-AT-G
EAN
4719264646836
Naar de website van de producent
Type product
AV-matrixschakelaar
Overdrachtssnelheid
18 Gbit/s
Maximale pixelsnelheid
600 MHz
Maximum resolutie
4096 x 2160 Pixels
HDCP
Ja
HDCP versie
2.2
3D
Ja
HDR-ondersteuning
Ja
Extended display identification data (EDID)
Ja
Ondersteunende oplossingen
4096 x 2160, 3840 x 2160, 1920 x 1200
Kleur behuizing
Zwart
Materiaal behuizing
Metaal
Rack-montage
Ja
Rackcapaciteit
1U
Soort bediening
Knoppen
Aan/uitschakelaar
Ja
LED-indicatoren
Ja
Afstandsbediening inbegrepen
Ja
Ingebouwd display
Ja
Aantal HDMI-invoerpoorten
8
Aantal HDMI-uitvoerpoorten
8
Aantal Ethernet LAN (RJ-45)-poorten
1
RS-232 port
1
Remote (IR) ingang
1
Vermogensverbruik (max)
38,1 W
Stroomverbruik (typisch)
37,8 W
AC-ingangsspanning
100-240 V
AC-ingangsfrequentie
50-60 Hz
Stroom
1 A
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent
Luchtvochtigheid bij opslag
0 - 80 procent
Warmtedissipatie
177 BTU/h
Warmteafvoer (max)
179 BTU/h
Hoeveelheid per (buitenste) hoofdverpakking
1 stuk(s)
(Buitenste) hoofdverpakking brutogewicht
5,63 kg
(Buitenste) hoofdverpakking lengte
515 mm
(Buitenste) hoofdverpakking breedte
338 mm
(Buitenste) hoofdverpakking hoogte
155 mm
Netto gewicht kartonnen doos
4,15 kg
Code geharmoniseerd systeem (HS)
85299097
Breedte
432,4 mm
Diepte
262,3 mm
Hoogte
44 mm
Gewicht
4,15 kg
Breedte verpakking
338 mm
Diepte verpakking
515 mm
Hoogte verpakking
155 mm
Gewicht verpakking
5,63 kg
Meegeleverde kabels
AC
Rekbevestigingspakket
Ja
Snelstartgids
Ja
Inclusief IR-ontvanger
Ja

Kenmerken

Type product
AV-matrixschakelaar
Overdrachtssnelheid
18 Gbit/s
Maximale pixelsnelheid
600 MHz
Maximum resolutie
4096 x 2160 Pixels
HDCP
Ja
HDCP versie
2.2
3D
Ja
HDR-ondersteuning
Ja
Extended display identification data (EDID)
Ja
Ondersteunende oplossingen
4096 x 2160, 3840 x 2160, 1920 x 1200

Design

Kleur behuizing
Zwart
Materiaal behuizing
Metaal
Rack-montage
Ja
Rackcapaciteit
1U
Soort bediening
Knoppen
Aan/uitschakelaar
Ja
LED-indicatoren
Ja
Afstandsbediening inbegrepen
Ja

Beeldscherm

Ingebouwd display
Ja

Poorten & interfaces

Aantal HDMI-invoerpoorten
8
Aantal HDMI-uitvoerpoorten
8
Aantal Ethernet LAN (RJ-45)-poorten
1
RS-232 port
1
Remote (IR) ingang
1

Energie

Vermogensverbruik (max)
38,1 W
Stroomverbruik (typisch)
37,8 W
AC-ingangsspanning
100-240 V
AC-ingangsfrequentie
50-60 Hz
Stroom
1 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent
Luchtvochtigheid bij opslag
0 - 80 procent
Warmtedissipatie
177 BTU/h
Warmteafvoer (max)
179 BTU/h

Logistieke gegevens

Hoeveelheid per (buitenste) hoofdverpakking
1 stuk(s)
(Buitenste) hoofdverpakking brutogewicht
5,63 kg
(Buitenste) hoofdverpakking lengte
515 mm
(Buitenste) hoofdverpakking breedte
338 mm
(Buitenste) hoofdverpakking hoogte
155 mm
Netto gewicht kartonnen doos
4,15 kg
Code geharmoniseerd systeem (HS)
85299097

Gewicht en omvang

Breedte
432,4 mm
Diepte
262,3 mm
Hoogte
44 mm
Gewicht
4,15 kg
Breedte verpakking
338 mm
Diepte verpakking
515 mm
Hoogte verpakking
155 mm
Gewicht verpakking
5,63 kg

Inhoud van de verpakking

Meegeleverde kabels
AC
Rekbevestigingspakket
Ja
Snelstartgids
Ja
Inclusief IR-ontvanger
Ja

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
