Productnummer: 3166254

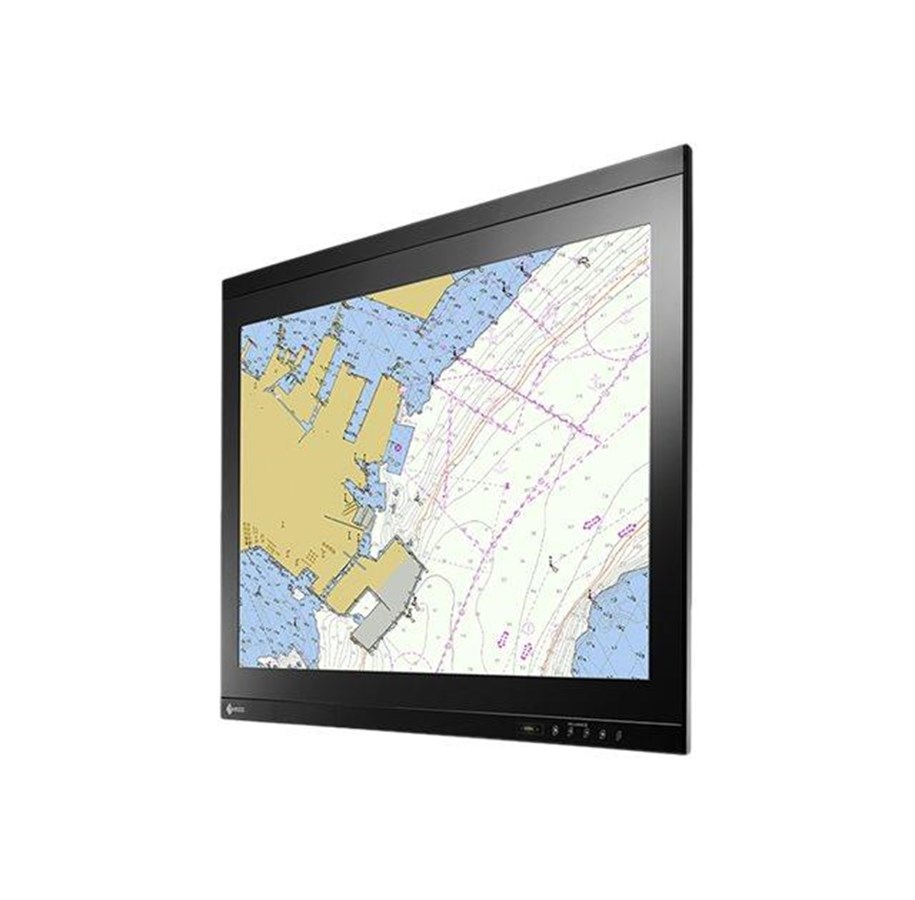

19" EIZO DuraVision FDS1904T - 1280x1024 - Touchscreen

EIZO DuraVision FDS1904T monitor biedt robuuste, maritiem-geschikte touch-betrouwbaarheid en stabiele VA-beeldprestaties voor industriële en maritieme workflows.

  • Formaat: 19"
  • Resolutie: 1280 x 1024
  • Paneltype: VA
  • Aansluitingen: DVI-D, VGA
  • Bijzondere kenmerken: Projectieve capacitieve multi-touch; LED-achtergrondverlichting; Antireflecterende AR-coating; 5H harde coating; IP65 maritieme classificatie; Vervangbare koelventilator

Afgedichte constructie, hoge helderheid en robuuste touchbediening zorgen voor consistente, duurzame werking in zware maritieme en industriële omgevingen.


2.024,10 € 1.672,81 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 4 - 5 werkdagen levertijd

The monitor offers durability for use in harsh maritime environments, complying with the conditions for temperature, humidity, and vibration. It can withstand dust ingress and is protected against low-pressure water jets. A coating is applied to make the electronic substrates moisture-proof and the cooling fan is easily accessible for exchanging purposes. The monitor is equipped with an LED backlight. LED backlights last longer and consume less power. The monitor is also mercury-free for minimal impact on the environment.The wide dimming range allows you to adjust to the appropriate brightness level for viewing during the day or at night. The VA panel features wide viewing angles that minimize changes in contrast and gradation to maintain excellent visibility when the screen is viewed from the side. An AR coating is applied to reduce the amount of reflections on the screen for a clear display. The monitor features a projected capacitive touch panel that accepts touch input from a bare hand or special stylus and supports multi-touch operation. The panel is also highly resistant to dust and water droplets to minimize unintended input.

Producent
Productnummer
3166254
Model
DVFDS1904T
EAN
4995047045441
Naar de website van de producent
Productbeschrijving
EIZO DuraVision FDS1904T - Marine - LED-monitor - 19"
Type apparaat
LCD-monitor met LED-achtergrondverlichting - 19" - aanraakscherm
Voorzieningen
Aanraakscherm
Paneeltype
VA
Aspectverhouding
5:4
Native resolutie
1280 x 1024
Pixel Pitch
0.294 mm
Helderheid
590 cd/m²
Contrastverhouding
2000:1
Responstijd
20 ms (zwart/wit)
Kleurondersteuning
16,8 miljoen kleuren
Invoerconnectors
DVI-D, VGA
Schermtoplaag
Antireflectie, 5H Hard Coating
Voltage
100-240 Volt wisselstroom V (50/60 Hz)
Kleur
Zwart
Afmetingen (BxDxH) - zonder standaard
42.9 cm x 7.5 cm x 40.6 cm
Gewicht
5.9 kg
Conformiteitsnormen
DDC-2B, CB, EMC, RoHS, WEEE, IEC 60945, DNV, IP65, KC, IP22, K60950-1, China RoHS, IEC 62288, IEC 61174, IEC 62388, K00022, K00024

Algemeen

Display-type
LCD-monitor met LED-achtergrondverlichting / TFT actieve matrix
Diagonale afmeting
19"
Paneeltype
VA
Aspectverhouding
5:4
Native resolutie
1280 x 1024
Pixel Pitch
0.294 mm
Helderheid
590 cd/m²
Helderheid met aanraakscherm
540 cd/m²
Contrastverhouding
2000:1
Kleurondersteuning
16,8 miljoen kleuren
Responstijd
20 ms (zwart/wit)
Verticale snelheid van verversen
56 - 76 Hz
Horizontale snelheid van verversen
31 - 80 KHz
Horizontale kijkhoek
178
Verticale kijkhoek
178
Schermtoplaag
Antireflectie, 5H Hard Coating
Achtergrondverlichtingtechnologie
LED-achtergrondlicht
OSD-talen
Chinees (traditioneel), Chinees (vereenvoudigd), Engels, Duits, Frans, Italiaans, Zweeds, Spaans, Japans
Functies
ECDIS gekalibreerd, ClearView
Kleur
Zwart
Afmetingen (BxDxH)
42.9 cm x 7.5 cm x 40.6 cm - zonder standaard
Gewicht
5.9 kg

Ingang

Type
Aanraakscherm - aanraakscherm
Bewegingsdetectietechnologie
Capacitieve projectie
Leven aanraakscherm
50 miljoen aanrakingen

Connectiviteit

Interfaces
DVI-D
VGA (HD-15)
USB 2.0 (Type B)
Serieel (DB-9)
VGA-uitgang (HD-15)
RS-232C

Mechanisch

VESA-montageverbinding
100 x 100 mm

Diversen

Voorzieningen
Marien monteerbaar
Meegeleverde accessoires
Schoonmaakdoek
Conformiteitsnormen
DDC-2B, CB, EMC, RoHS, WEEE, IEC 60945, DNV, IP65, KC, IP22, K60950-1, China RoHS, IEC 62288, IEC 61174, IEC 62388, K00022, K00024

Stroom

Input Voltage
100-240 Volt wisselstroom V (50/60 Hz)
Energieverbruik (gemiddeld)
64 Watt
Energieverbruik (max)
64 Watt
Stroomverbruik stand-by
7 Watt

Software / Systeemvereisten

Bijgeleverde software
Stuurprogramma's & hulpprogramma's
Benodigd besturingssysteem
Microsoft Windows XP 32-bit, Microsoft Windows Vista / 7 / 8 / 8.1 / 10 (32/64 bits)

Garantie van de fabrikant

Service & Support
Beperkte garantie - 3 jaar

Omgevingsparameters

Min. gebruikstemperatuur
-15 °C
Max. gebruikstemperatuur
55 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
