Productnummer: 3512866

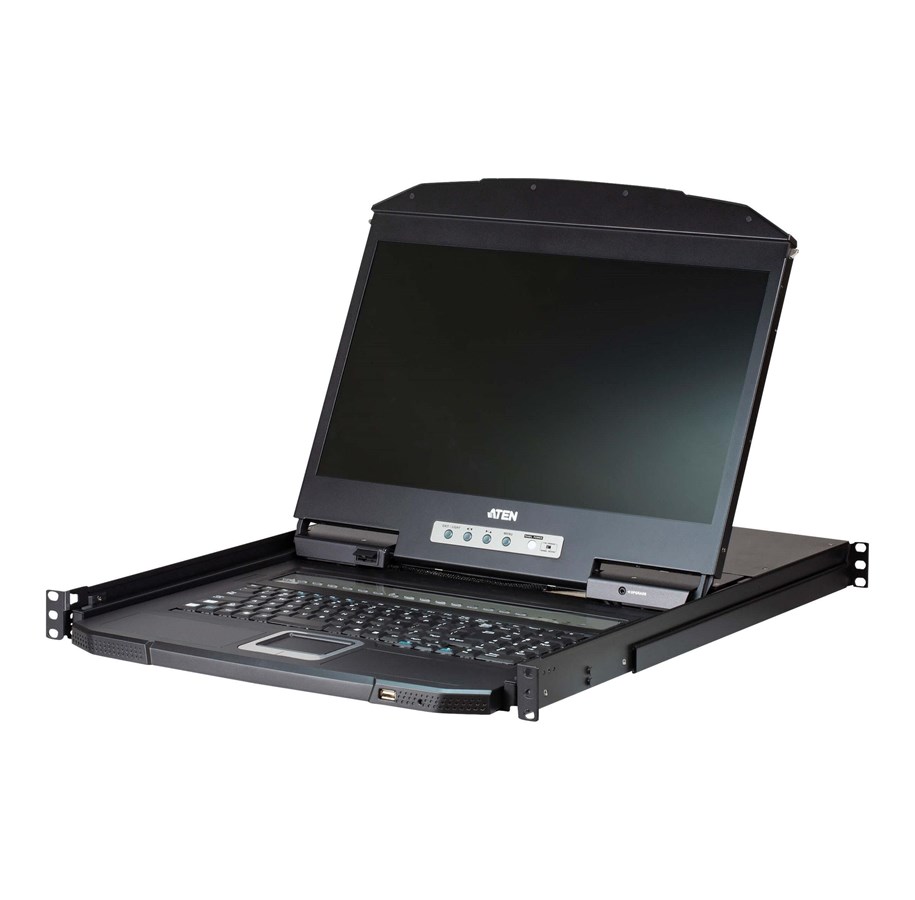

18" ATEN CL3108NX - KVM console - 18.5"

KVM-console, PS/2, USB, VS, Engels (QWERTY), 18.5", bevestigbaar in rack, 1366 x 768 @ 60 Hz, 250 cd/m², 1000:1, 5 ms, VGA, 1U

1.297,66 € 1.072,45 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 5 - 6 werkdagen levertijd

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

Producent
Productnummer
3512866
Model
CL3108NX-ATA-AG
EAN
4719264648977
Naar de website van de producent
Productbeschrijving
ATEN CL3108NX - KVM-console - 18.5"
Type apparaat
KVM-console - 18.5"
KVM-schakeling
PS/2, USB
Toetsenbordindeling
VS - Engels (QWERTY)
Voorzieningen
Toetsenbord, touchpad
Native resolutie
1366 x 768 bij 60 Hz
Pixel Pitch
0.3 mm
Helderheid
250 cd/m²
Contrastverhouding
1000:1
Responstijd
5 ms
Kleurondersteuning
16,7 miljoen kleuren
Invoerconnectors
VGA
Voltage
100 - 240 V wisselstroom (50 - 60 Hz)
Afmetingen (BxDxH)
63.17 cm x 48.06 cm x 4.28 cm
Hoogte (rekeenheden)
1U
Gewicht
10.5 kg
Conformiteitsnormen
DDC-2B, RoHS

Algemeen

Display-type
KVM-console / TFT actieve matrix
Diagonale afmeting
18.5"
Native resolutie
1366 x 768 bij 60 Hz
Pixel Pitch
0.3 mm
Helderheid
250 cd/m²
Contrastverhouding
1000:1
Kleurondersteuning
16,7 miljoen kleuren
Responstijd
5 ms
Horizontale kijkhoek
170
Verticale kijkhoek
160
Achtergrondverlichtingtechnologie
LED-achtergrondlicht
Afmetingen (BxDxH)
63.17 cm x 48.06 cm x 4.28 cm
Hoogte (rekeenheden)
1U
Gewicht
10.5 kg

Ingang

Type
Toetsenbord, touchpad

KVM

Toetsenbord / Muisinterface
PS/2, USB
Max. resolutie
1920 x 1200 @ 60 Hz

Connectiviteit

Interfaces
8 x KVM (SPHD-18)

Diversen

Voorzieningen
Firmware die kan worden opgewaardeerd, enkele rail
Kabels meegeleverd
2 x kabel voor toetsenbord / muis / video - 1.8 m
Rackmontagekit
Inclusief
Conformiteitsnormen
DDC-2B, RoHS

Stroom

Input Voltage
100 - 240 V wisselstroom (50 - 60 Hz)
Energieverbruik (gemiddeld)
14.9 watt

Afmetingen & gewicht

Afmetingen & gewicht details
Behuizing - breedte: 58.4 cm - diepte: 44.92 cm - hoogte: 4.28 cm

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 80% (niet-condenserend)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
