Productnummer: 2766844

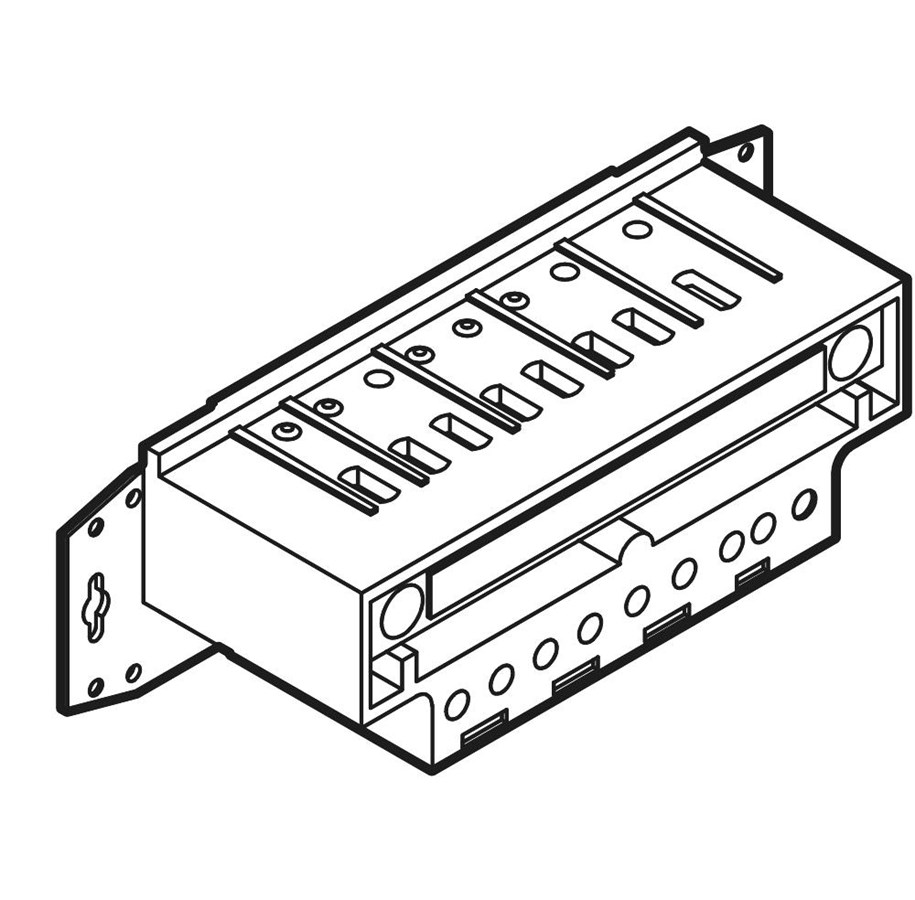

LK meter socket for um's -ie and um's joy. type pms iu
Meter Socket for switch cabinets of the type UMS ie, the UM's and the previous version of PMS IU.
137,78 €
113,87 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
LK Metering socket for UMs-ie and UM-s old type PMs-ie Product description: Metering socket for meter cabinets of the types UMs-ie, UM-s and the previous version of PMs-ie. Technical specifications: Terminals: Cu 4-25 mm2, Al 16-25 mm2 only solid round. Ambient temperature (°C): -10 °C to +35 °C. Rated current: Max. 63 A. Connection options: Cu 2x16 mm2 or 1x16 mm2 + 2x10 mm2. Al 16-25 mm2 solid round.
