Productnummer: 2766802

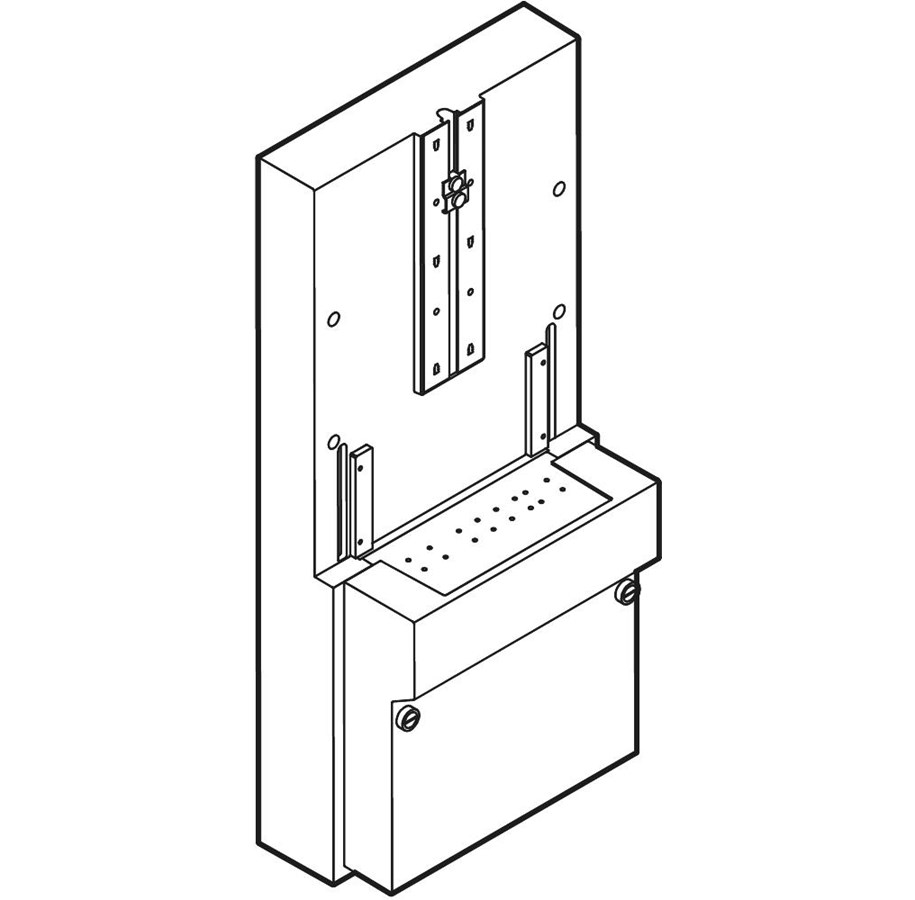

LK empty consumer unit - um-s - light grey - for pin connect
Gauge Plate UM-p, light gray, to the pin connection. UM-p boards intended for installation outside of the wall. Can be combined horizontally or vertically with panelboard type UG and used with fuse holder for tariff protection D02 3P.
163,35 €
135,00 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
External meter board UM-s for plug-in connection, gray. Product description: UM-s meter board, light gray, for plug-in connection. UM-s boards are designed for external wall mounting and can be assembled horizontally or vertically with UG group boards and used with D02 3P tariff fuse holders. Technical specifications: Terminals: Cu 4-25 mm2, Al 16-25 mm2 only solid round wire. Ambient temperature (°C): -10 °C to +35 °C. Color: light gray Rated current: Max. 63 A.
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
