Productnummer: 2747060

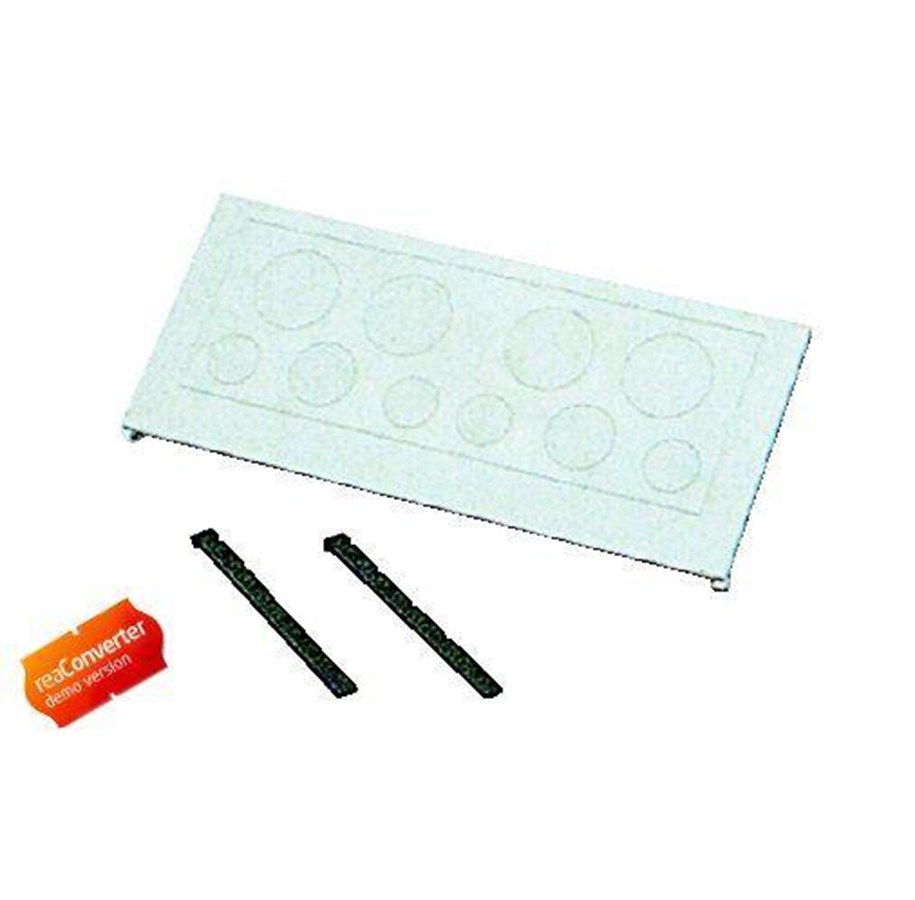

FIBOX F320-3
Kabelwartelplaat, Type 323, 1xM50/40 + 2xM32/M25 + 4xM25/M20
18,95 €
15,66 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Blanketflange Type 323, 1xM50/40 + 2xM32/M25 + 4xM25/M20 Product description: Tightness class according to EN 60529 IP65. Impact resistance according to EN 62262 IK08. Temperature range continuously -20 --80 Celsius. Protection. Double insulated. Color Ral7035.Isolation voltage 690 V AC /800 VDC.Nominal current rating 1250 Amp.Short-circuit test 30 kA/0,3 sec..and peak65 kA.UV resistant according to UL746C Very good.Chemical resistant Very good.Glow wire tested according to IEC960 degrees.Built in accordance with EN60439.Environment and surroundings Halogen-free.Flammability classification94V1
