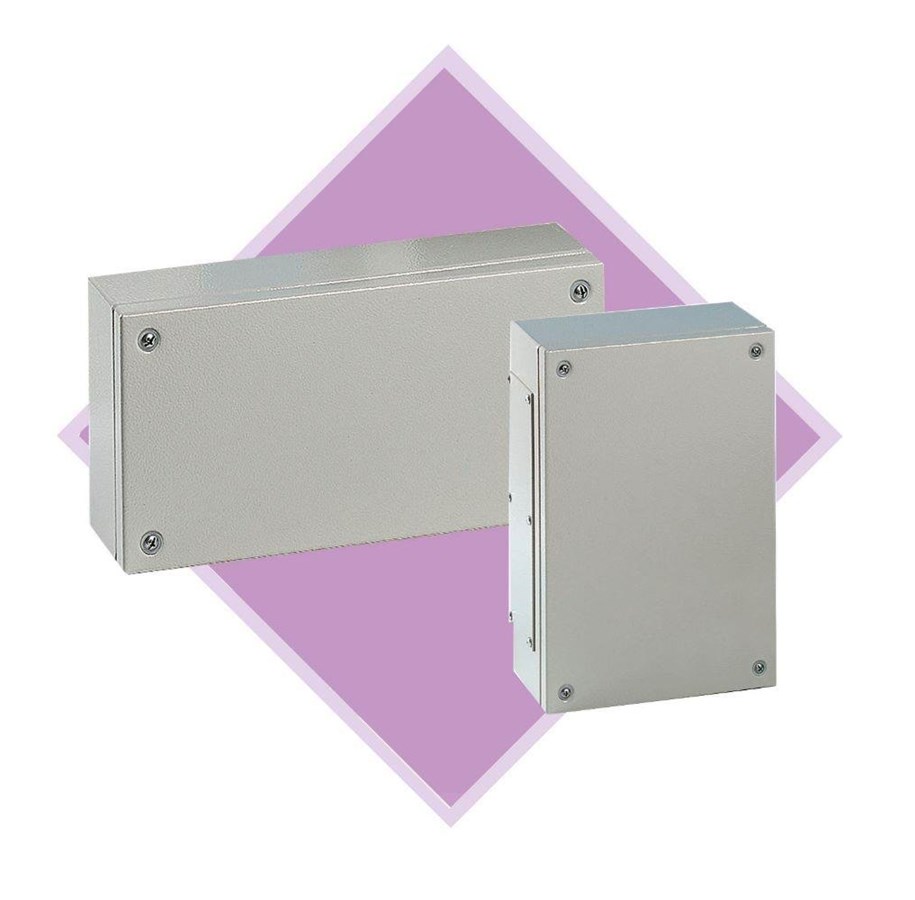

ELDON Terminal box 300x300x120

Junction box 300x300x120 STB303012 Product description: Description: Junction box, painted 300x300x120 Material: 1.2mm steel Cabinet: Four holes with a diameter of 8.5 mm for wall mounting. 4 M6x13 studs for bottom profile/mounting plate. Gasket: Polyurethane (PUR). Temperature resistant -50 °C +80 °C Ground point: Earth bolts M6 x15 in the bottom and lid, M6 nuts and ground plates. Degree of protection: In accordance with IP66, IK10 Surface treatment: RAL7032, structured powder coating Approvals : CE, KEMA, cUL UL Delivery includes : Bottom, lid , stainless steel lid screws , mounting screws and lid plugs Technical specifications : Mounting method : Surface mounted Protection class : I Width : 300 Height : 300
