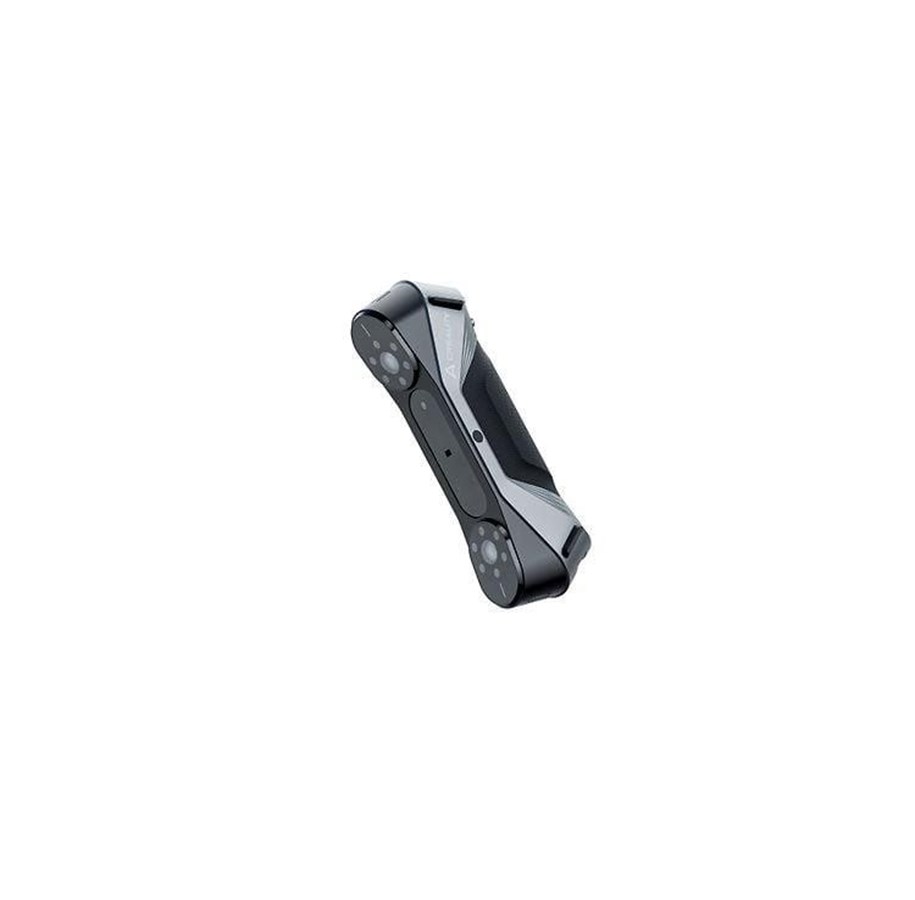

CREALITY CR-Scan Raptor 3D Scanner
The CR-Scan Raptor covers both near and far scanning and is equipped with good stability at high and low temperatures, providing reliable measurement results.
Versatile scanning for objects of all sizes
By combining line lasers and infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5 mm' to 2000*2000*200 mm'. It effortlessly scans small figures, bolts, faces, human bodies, car parts and more.
Anti-shake function for smoother scanning
The CR-Scan Raptor is equipped with One-Shot 3D imaging technology, which ensures natural stability and reduces tracking errors. The fast return speed ensures smoother handheld scanning.
Scans black/metal objects without sprays
You can scan cars, car parts, tires and other black/metal objects without a scanning spray and get the desired model effect.
24-bit full color scanning
With 12 round LED texture lights, it enhances the brightness of color mapping in dark environments and presents the colors of objects realistically.
Scanning in different environments
Bi-color circular LED texture lights help achieve more realistic scanning results. Blue light provides additional illumination for laser line scanning. White light enhances the brightness of color surfaces.
Improving mark recognition: 12 infrared LEDs
Laser safety: Class 1 (eye-friendly)
IMU: Yes
File format: OBJ/STL/PLY
Input power: 12 V 2 A
Data interface: Type C / USB 3.0
Device dimensions: 215 x 50 x 74 mm
Device weight: 372 g
Wireless scanning: Support
Compatible operating systems: Windows 10/11 (64 bit) and macOS
Operating temperature: -10°C–40°C
Scanning mode: Blue light (blue 7-laser lines)
Accuracy: Up to 0.002 mm @ 100 mm
3D resolution: 0.02–2 mm
Scanning speed: Up to 60 fps
Minimum scan volume: 5 x 5 x 5 mm
Single scan area: 270 x 170 mm @1000 mm
Operating distance: 150–400 mm
Color Mapping: Yes
Focus mode: Character
3D camera resolution: 1920 x 1200
Color-complementing light: 12 white LEDs
Scanning mode: NIR (infrared binary structured light)
Accuracy: Up to 0.01 mm
3D resolution: 0.1–2 mm
Scanning speed: Up to 20 fps
Minimum scanning volume: 150 x 150 x 150 mm
Single scan area: 930 x 580 mm @ 1000 mm
Operating distance: 170–1000 mm
Color Mapping: Yes
Alignment mode: Character/Geometric/Texture
3D camera resolution: 1920 x 1200
Color-complementing light: 12 white LEDs
