Productnummer: 3320656

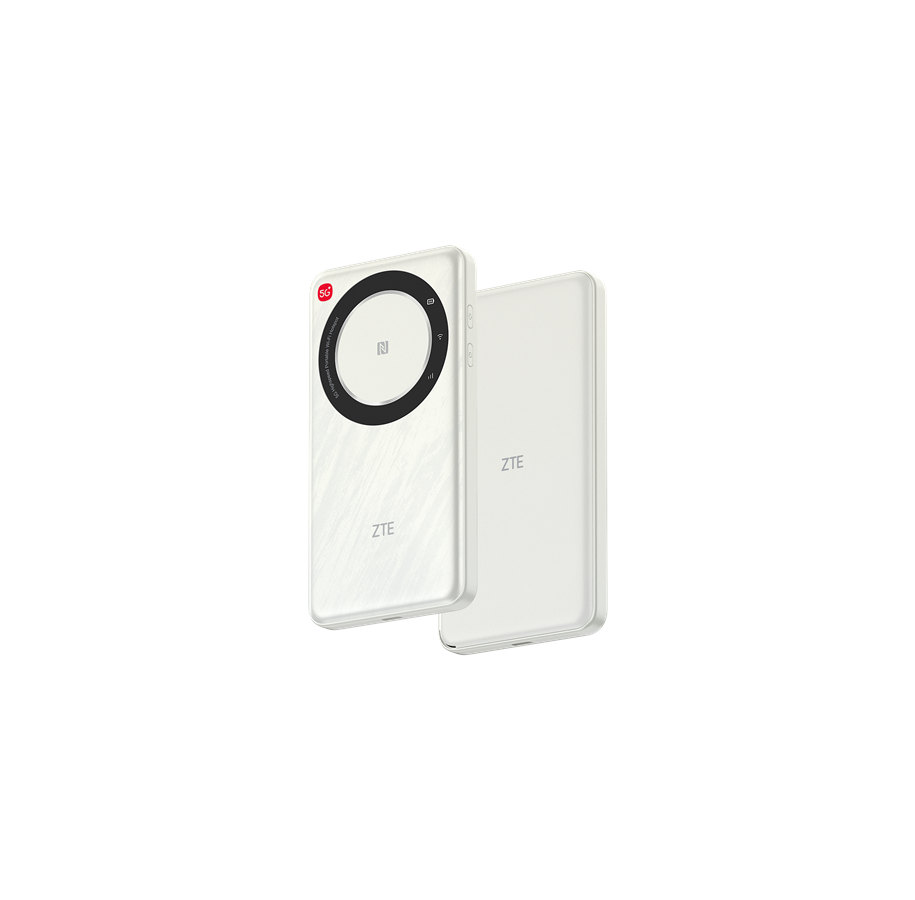

ZTE U30 Air Portable 5G Router - 5G

U30 Air is a ZTE 5th-generation exquisite entry-level 5G portable router that supports the 5G NR Rel.15 technologies and integrates Wi-Fi5, and an large battery of 4500mAh capacity. It enables users to smoothly connect to 5G networks anytime & anywhere on tablets, mobile phones, laptops, and control consoles, allowing incredible new experience in ARs, cloud games, and 4K videos.

- 5G NR SA&NSA;3GPP Rel.15
- 5G Up to 1.83Gbps DL rate
- 4500mAh Lithium-ion Battery
- USB 3.0 Type-C
- Wi-Fi5 (802.11ac)
- ZTE security and stable FOTA
- Directly Connect WiFi

Het product is niet meer leverbaar

Ultra-high-speed internet connection
With its compact single-chip architecture, U30 Air achieves an ultra-high performance-to-cost ratio.Based on the 1.83Gbps-based 5GNR download rate, WiFi5, and USB3.0 high-speed interfaces, U30 Air fully demonstrates the end-to-end ultra-high rate and ultra-low latency of 5G networks.

Rich combinations to exploit the potential of spectrum
U30 Air supports global mainstream 3G/4G/5G frequency bands and combinations of multi-band ENDC, making full use of operators' existing spectrum resources, and providing users with high-speed, wide-coverage, and smooth-handover cellular network roaming experience.

Abundant management and configuration interfaces
U30 Air supports traditional WEB UI and mobile APP management modes.With the cooperation of the MQTT server, users can use the mobile APP to implement configuration management on the U30 Air locally or remotely, greatly improving user experience.

Producent
Productnummer
3320656
Model
123439901113
EAN
6902176133367
Naar de website van de producent
Productbeschrijving
ZTE U30 Air - draadloze mobiele modem - 5G LTE
Type apparaat
Draadloze mobiele modem - USB-C
Vormfactor
Extern
Max. overdrachtsnelheid
867 Mbps
Mobiele protocol
DC-HSDPA, DC-HSPA+, LTE, UMTS, 5G NR, 4G LTE
Frequentieband mobiele telefoon
5G NR n1/n3/n7/n8/n20/n28/n38/n78 / LTE B1/B3/B7/B8/B20/B28/B38
Netwerkgebruik
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac
Batterij
4500 mAh - tot 10 uren
Afmetingen (BxDxH)
14 cm x 7.28 cm x 1.25 cm
Gewicht
165 g

Algemeen

Type apparaat
Draadloze mobiele modem
Vormfactor
Extern

Modem

Bus
USB-C
Connectiviteit
Draadloos
Max. overdrachtsnelheid
867 Mbps
Frequentieband mobiele telefoon
5G NR n1/n3/n7/n8/n20/n28/n38/n78 / LTE B1/B3/B7/B8/B20/B28/B38
Mobiele protocol
DC-HSDPA, DC-HSPA+, LTE, UMTS, 5G NR, 4G LTE
Antenne
Intern
Voorzieningen
Up to 10 WiFi devices

Netwerkgebruik

Connectiviteit
Draadloos
Protocol voor gegevenskoppeling
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac
Voorzieningen
2x2 MIMO-technologie, APN-beheer, sim-PUK-beheer, sim-pin-beheer, Firmware Over-the-Air (FOTA), reset-knop, led-statusindicator

Internet of Things (IoT)

Geschikt voor Internet of Things (IoT)
Ja
Communicatietechnologieën
NFC

Uitbreiding / Aansluiting

Interfaces
1 x USB 3.0 - Type C

Diversen

Ondersteunde SIM-kaart
Normaal (mini-SIM) x 1
Kabels meegeleverd
1 x USB-C cable
Conformiteitsnormen
WEEE, REACH, RoHS

Stroom

Energieverbruik tijdens gebruik
10 Watt
Batterij
Lithiumion
Capaciteit
4500 mAh - tot 10 uren

Afmetingen & gewicht

Breedte
14 cm
Diepte
7.28 cm
Hoogte
1.25 cm
Gewicht
165 g

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
35 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95%
