Productnummer: 3419914

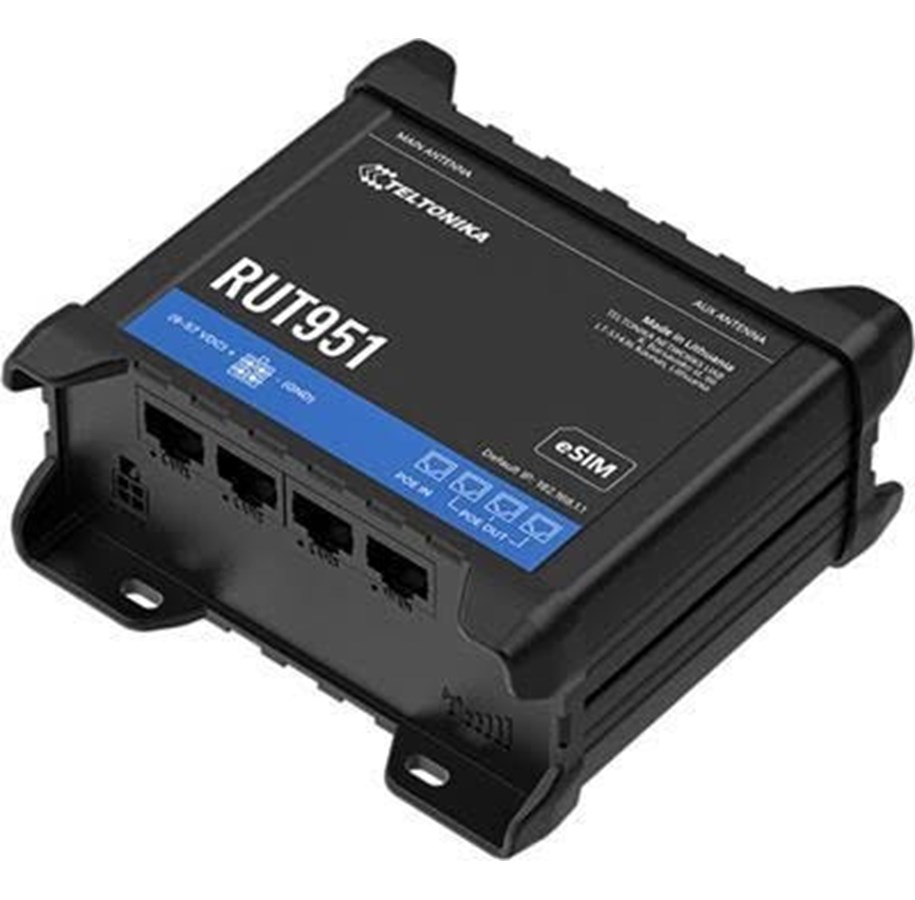

Teltonika RUT951 (RUT951B10K00 PoE+) - Wireless router LTE
Draadloze router, WWAN 3-poorts switch 2,4 GHz, 3G, 4G, monteerbaar op DIN-rails, monteerbaar op oppervlak, wandbevestiging
249,93 €
206,55 € excl. BTW
Goedkoopste privé verzending 6,99 €
Besteld: verwacht op voorraad 29-6-2026
The Teltonika RUT951 is designed for versatility and reliability, making it a choice for various networking needs. With four external detachable antennas, this router ensures strong signal strength and stable connections, suitable for both remote and on-site usage. It supports 3G and 4G mobile broadband, providing seamless Internet access with a maximum transfer rate of 150 Mbps, ideal for IoT applications and VoIP services.Operating under extreme conditions, the RUT951 performs efficiently with a wide temperature range from -40°C to 75°C, along with a humidity tolerance of 10 to 90% (non-condensing). The device features two expansion slots for future enhancements and 16 MB of flash memory. With security algorithms including AES-CCMP and multiple VPN options, it ensures secure data transmission, making it suitable for business and enterprise applications.
Producent
Productnummer
3419914
Model
RUT951B10K00
EAN
4779051843718
Productbeschrijving
Teltonika RUT951 - draadloze router - WWAN - Wi-Fi, LTE - 3G, 4G - monteerbaar op DIN-rails, monteerbaar op oppervlak, wandbevestiging
Type apparaat
Draadloze router - draadloze mobiele modem - 3-poorts switch (geïntegreerd)
Type bijvoegsel
Monteerbaar op DIN-rails, monteerbaar op oppervlak, wandbevestiging
Mobiele protocol
4G LTE
Generatie
3G, 4G
Aantal WAN-poorten
1
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequentieband
2,4 GHz
Capaciteit
Gelijktijdige verbindingen: 100
Netwerk-/transportprotocol
TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, ARP, PPPoE, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6, Telnet
Routingprotocol
BGP, OSPFv2, RIP-1, RIP-2, NHRP, VRRP, GRE, statische IP-routing
Platform
Clouds of Things, ThingWorx, Azure IoT Hub, AWS IoT Core
Protocol voor beheer op afstand
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP, MQTT, RADIUS
VoIP-protocollen
H.323, SIP
Voorzieningen
Firewall-beveiliging, NAT-ondersteuning, VPN-ondersteuning, load balancing, WOL, auto-uplink (auto MDI/MDI-X), ALG-ondersteuning, E-mail waarschuwing, MAC adresfiltering, toegangspunt operationele modus, firmware die kan worden opgewaardeerd, DDos aanvalspreventie, ondersteuning WMM, gebeurtenislogboek, QoS, IPSec NAT-T, DMVPN, sms-alert, doorgeschakelde poorten, reset-knop, DHCP relay, SNMP trap, monteerbaar op DIN-rails, GRE-tunneling, FOTA, gemerkte VLAN, SYN Flooding, Captive Portal, systeemlogboek, Web Filtering, mogelijkheid voor Hotspot-toegangspunt, DMZ-ondersteuning, op basis van VLAN-poort, zwarte lijst, witte lijst, brugmodus, PPP, OpenVPN-client, OpenVPN-server, aluminium behuizing, ondersteunt VoIP-doorvoer
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, Wi-Fi GECERTIFICEERD, IEEE 802.11e, IEEE 802.11n, UPnP
Stroom
DC 9 - 57 V
Afmetingen (BxDxH)
11 cm x 10 cm x 5 cm
Gewicht
287 g
Lokalisatie
Europa
Algemeen
Type apparaat
Draadloze router - 3-poorts switch (geïntegreerd)
Type bijvoegsel
Monteerbaar op DIN-rails, monteerbaar op oppervlak, wandbevestiging
Connectiviteit
Met bekabeling, draadloos
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequentieband
2,4 GHz
Capaciteit
Gelijktijdige verbindingen: 100
Netwerk-/transportprotocol
TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, ARP, PPPoE, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6, Telnet
Routingprotocol
BGP, OSPFv2, RIP-1, RIP-2, NHRP, VRRP, GRE, statische IP-routing
Protocol voor beheer op afstand
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP, MQTT, RADIUS
Encryptie-algoritme
DES, drievoudige DES-codering, RC2, CAST5, TLS, SSL 3.0, PEAP, TKIP, WPA-PSK, AES-CCMP, 128-bits AES, 192-bits AES, 256-bits AES, WPA2-PSK, WPA2-Enterprise, IKEv2, WEP, 256-bit AES-CBC, 128 bits-AES-CBC, 192 bits-AES-CBC, IKEv1
Authentificatiemethode
Secure Shell (SSH), RADIUS, X.509 certificaten, Radio Service Set ID (SSID), Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Voorzieningen
Firewall-beveiliging, NAT-ondersteuning, VPN-ondersteuning, load balancing, WOL, auto-uplink (auto MDI/MDI-X), ALG-ondersteuning, E-mail waarschuwing, MAC adresfiltering, toegangspunt operationele modus, firmware die kan worden opgewaardeerd, DDos aanvalspreventie, ondersteuning WMM, gebeurtenislogboek, QoS, IPSec NAT-T, DMVPN, sms-alert, doorgeschakelde poorten, reset-knop, DHCP relay, SNMP trap, monteerbaar op DIN-rails, GRE-tunneling, FOTA, gemerkte VLAN, SYN Flooding, Captive Portal, systeemlogboek, Web Filtering, mogelijkheid voor Hotspot-toegangspunt, DMZ-ondersteuning, op basis van VLAN-poort, zwarte lijst, witte lijst, brugmodus, PPP, OpenVPN-client, OpenVPN-server, aluminium behuizing, ondersteunt VoIP-doorvoer
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, Wi-Fi GECERTIFICEERD, IEEE 802.11e, IEEE 802.11n, UPnP, CCC, FCC, RoHS, FCC CFR47 Part 15, WEEE, ANATEL, FCC CFR47 Part 15 C, REACH, PTCRB, DNV, GCF, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, RCM, TRA, EN 61000-4-3:2006+A1:2008+A2:2010, EN 62311:2008, EN 61000-4-5:2014, SDPPI, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, ANSI C63.4-2014, AS/NZS 60950-1:2015, EN 300 328 V2.1.1, RED, EN 301 489-1 V2.2.0, NBTC, EN 301 489-52 V1.1.0, EN 301 489-17 V3.2.0, AS/NZS 4268:2017, Postel, EN 301 489-19 V2.1.0, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 61000-4-4:2012, ISO 7632-2:2004, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/CA S042.1:2018, FCC CFR47 Part 22H, FCC CFR47 Part 24E, FCC CFR47 Part 27, EN 50665:2017, FCC CFR47 Part 1 1.1310, EN 60529:1999+A1+AC:2002, EN 60068-2-6:2008
Processor
MediaTek MIPS 24Kec 580 MHz
RAM
128 MB DDR2 SDRAM
Flashgeheugen
16 MB
Statuslampjes
Voeding, signaalsterkte, WAN, LAN
Communicatie
Type
Draadloze mobiele modem
Mobiele protocol
4G LTE
Generatie
3G, 4G
Max. overdrachtsnelheid
150 Mbps
IP-telefonie
VoIP-protocollen
H.323, SIP
Internet of Things (IoT)
Geschikt voor Internet of Things (IoT)
Ja
Platform
Clouds of Things, ThingWorx, Azure IoT Hub, AWS IoT Core
Communicatietechnologieën
LTE Cat 4
Uitbreiding / Aansluiting
Interfaces
LAN: 3 x 10Base-T/100Base-TX - RJ-45
WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45
Antenne: 2 x SMA - LTE
Antenne: 2 x RP-SMA - Wi-Fi
1 x DI/DO - 4 pins-voeding
WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45
Antenne: 2 x SMA - LTE
Antenne: 2 x RP-SMA - Wi-Fi
1 x DI/DO - 4 pins-voeding
Uitbreidingssleuven
2 (totaal) / 2 (vrij) x Mini-SIM
Antenne
Antenne
Kan extern worden losgemaakt
Hoeveelheid antennes
4
Configuratiegegevens
2 afneembare externe LTE-antennes, 2 externe Wi-Fi-antennes
Stroom
Voeding
Externe stroomadapter
Vereiste netspanning
DC 9 - 57 V
Diversen
Meegeleverde accessoires
2 x LTE-antennes, 2 x WiFi-antennes, voedingsadapter (EU)
Lokalisatie
Europa
Software / Systeemvereisten
Inclusief OS
RutOS
Afmetingen & gewicht
Breedte
11 cm
Diepte
10 cm
Hoogte
5 cm
Gewicht
287 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
