Productnummer: 3345382

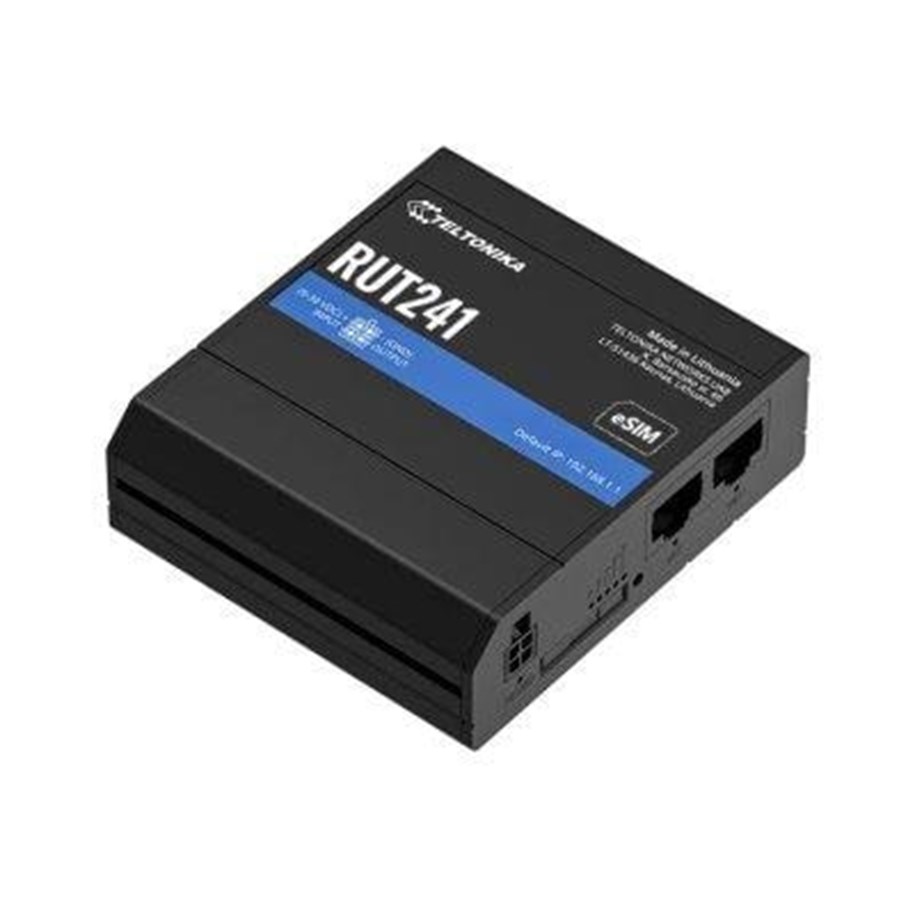

Teltonika RUT241 Industrial 4G eSIM Router (Global RUT241230000 / Standard package with EU PSU) - Wireless router N Standard - 802.11n
Draadloze router, WWAN, 2,4 GHz, 2G, 3G, 4G, monteerbaar op DIN-rails
188,55 €
155,83 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
The Teltonika RUT241 eSIM offers connectivity solutions for various networking needs. With support for up to 50 simultaneous connections, this wireless cellular modem operates efficiently in a temperature range of -40°C to 75°C, making it suitable for diverse environments. It features external detachable antennas, enhancing signal strength and transmission quality.Equipped with significant security features, including encryption algorithms and multiple authentication methods, it assures reliable performance for business and personal use. The device supports various networking protocols, including VoIP and can function as a versatile router with both wired and wireless connection options. With management capabilities and compliance with multiple standards, it presents a solution for Internet of Things (IoT) applications and beyond.
Producent
Productnummer
3345382
Model
RUT241230000
EAN
4779051841998
Productbeschrijving
Teltonika RUT241 eSIM - draadloze router - WWAN - Wi-Fi - 2G, 3G, 4G - monteerbaar op DIN-rails
Type apparaat
Draadloze router - draadloze mobiele modem
Type bijvoegsel
Monteerbaar op DIN-rails
Mobiele protocol
FDD LTE, TDD LTE
Generatie
2G, 3G, 4G
Frequentieband mobiele telefoon
LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B40
Aantal WAN-poorten
1
Protocol voor gegevenskoppeling
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Frequentieband
2,4 GHz
Capaciteit
Gelijktijdige verbindingen: 50
Netwerk-/transportprotocol
TCP/IP, UDP/IP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, Telnet, OpenVPN, PPTP, L2TPv3, DDNS
Routingprotocol
Statische IP-routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, VXLAN
Platform
Azure IoT Hub, AWS IoT Core, Cumulocity, ThingWorx, Clouds of Things
Protocol voor beheer op afstand
ICMP, HTTP, HTTPS, SFTP, SMTP, SSH, SMPP, MQTT, DDNS, DNS, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus
VoIP-protocollen
SIP, H.323
Voorzieningen
eSIM-ondersteuning, reset-knop, ondersteuning USSD, SMS afstandsbediening, witte lijst, zwarte lijst, meervoudige PDN, bandbeheer, auto APN, brugmodus, toegangspunt operationele modus, operationele modus station, Stealth Mode, snelle roaming, MAC adresfiltering, TravelMate, lijst toestaan/blokkeren, Captive Portal, RADIUS Server, dynamische routering, PPP, WOL, DHCP relay, DHCP-server, ondersteuning WMM, QoS, SQM, ondersteunt SSHFS, auto-uplink (auto MDI/MDI-X), DLMS-ondersteuning, PSK, digitale certificaten, DDos aanvalspreventie, port scan prevention, VLAN-ondersteuning, mobiele quotumregeling, Web Filtering, GRE-tunneling, DMVPN, ondersteunt SSTP-cliëntexemplaar, VPN client, WireGuard, DNP3-outstation, DNP3-station, FOTA, Teltonika RMS, aluminium behuizing
Conformiteitsnormen
IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, UPnP, IEEE 802.11e, IEEE 802.3, IEEE 802.3u, IEEE 802.3az
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
8.3 cm x 7.4 cm x 2.5 cm
Gewicht
125 g
Lokalisatie
Global (excluding Belarus, Iran, Russia)
Algemeen
Type apparaat
Draadloze router
Type bijvoegsel
Monteerbaar op DIN-rails
Connectiviteit
Met bekabeling, draadloos
Protocol voor gegevenskoppeling
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Frequentieband
2,4 GHz
Capaciteit
Gelijktijdige verbindingen: 50
Netwerk-/transportprotocol
TCP/IP, UDP/IP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, Telnet, OpenVPN, PPTP, L2TPv3, DDNS
Routingprotocol
Statische IP-routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, VXLAN
Protocol voor beheer op afstand
ICMP, HTTP, HTTPS, SFTP, SMTP, SSH, SMPP, MQTT, DDNS, DNS, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus
Encryptie-algoritme
SSL, TLS, DES, RC2, DESX, 128 bits-AES-CBC, 192 bits-AES-CBC, 256-bit AES-CBC, CAST5, 3DES, MODBUS, IKEv1, IKEv2, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK, AES-CCMP, TKIP
Authentificatiemethode
Secure Shell v.2 (SSH2), X.509 certificaten, TACACS+, RADIUS, Secure Shell (SSH), Radio Service Set ID (SSID)
Voorzieningen
eSIM-ondersteuning, reset-knop, ondersteuning USSD, SMS afstandsbediening, witte lijst, zwarte lijst, meervoudige PDN, bandbeheer, auto APN, brugmodus, toegangspunt operationele modus, operationele modus station, Stealth Mode, snelle roaming, MAC adresfiltering, TravelMate, lijst toestaan/blokkeren, Captive Portal, RADIUS Server, dynamische routering, PPP, WOL, DHCP relay, DHCP-server, ondersteuning WMM, QoS, SQM, ondersteunt SSHFS, auto-uplink (auto MDI/MDI-X), DLMS-ondersteuning, PSK, digitale certificaten, DDos aanvalspreventie, port scan prevention, VLAN-ondersteuning, mobiele quotumregeling, Web Filtering, GRE-tunneling, DMVPN, ondersteunt SSTP-cliëntexemplaar, VPN client, WireGuard, DNP3-outstation, DNP3-station, FOTA, Teltonika RMS, aluminium behuizing
Conformiteitsnormen
IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, UPnP, IEEE 802.11e, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IP30, UKCA, ANRT, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E Mark, CB, UL, CSA, RoHS, REACH, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.0, EN 61000-4-2:2009, IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020, EN 50665:2017, AS/NZS 62368-1:2022, IEC 62368-1:2018, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19
Processor
1 x MediaTek MIPS 24KC 580 MHz
RAM
128 MB DDR2 SDRAM
Flashgeheugen
16 MB
Statuslampjes
Verbindingsstatus, signaalsterkte, LAN, voeding
Communicatie
Type
Draadloze mobiele modem
Mobiele protocol
FDD LTE, TDD LTE
Generatie
2G, 3G, 4G
Frequentieband mobiele telefoon
LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B40
Max. overdrachtsnelheid
150 Mbps
IP-telefonie
VoIP-protocollen
SIP, H.323
Internet of Things (IoT)
Geschikt voor Internet of Things (IoT)
Ja
Platform
Azure IoT Hub, AWS IoT Core, Cumulocity, ThingWorx, Clouds of Things
Uitbreiding / Aansluiting
Interfaces
LAN: 1 x 10Base-T/100Base-TX - RJ-45
WAN: 1 x 10Base-T/100Base-TX - RJ-45
Antenne: 2 x SMA - LTE
Antenne: 1 x RP-SMA - Wi-Fi
1 x DI
1 x DO
WAN: 1 x 10Base-T/100Base-TX - RJ-45
Antenne: 2 x SMA - LTE
Antenne: 1 x RP-SMA - Wi-Fi
1 x DI
1 x DO
Antenne
Antenne
Kan extern worden losgemaakt
Hoeveelheid antennes
3
Stroom
Voeding
Externe stroomadapter - 9 watt
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Diversen
Meegeleverde accessoires
Voedingsadapter (EU), 2 x LTE-antennes, wifi-antenne
Kabels meegeleverd
1 x netwerkkabel - 1.5 m
Lokalisatie
Global (excluding Belarus, Iran, Russia)
Software / Systeemvereisten
Inclusief OS
RutOS
Afmetingen & gewicht
Breedte
8.3 cm
Diepte
7.4 cm
Hoogte
2.5 cm
Gewicht
125 g
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
75 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
