Productnummer: 2214720

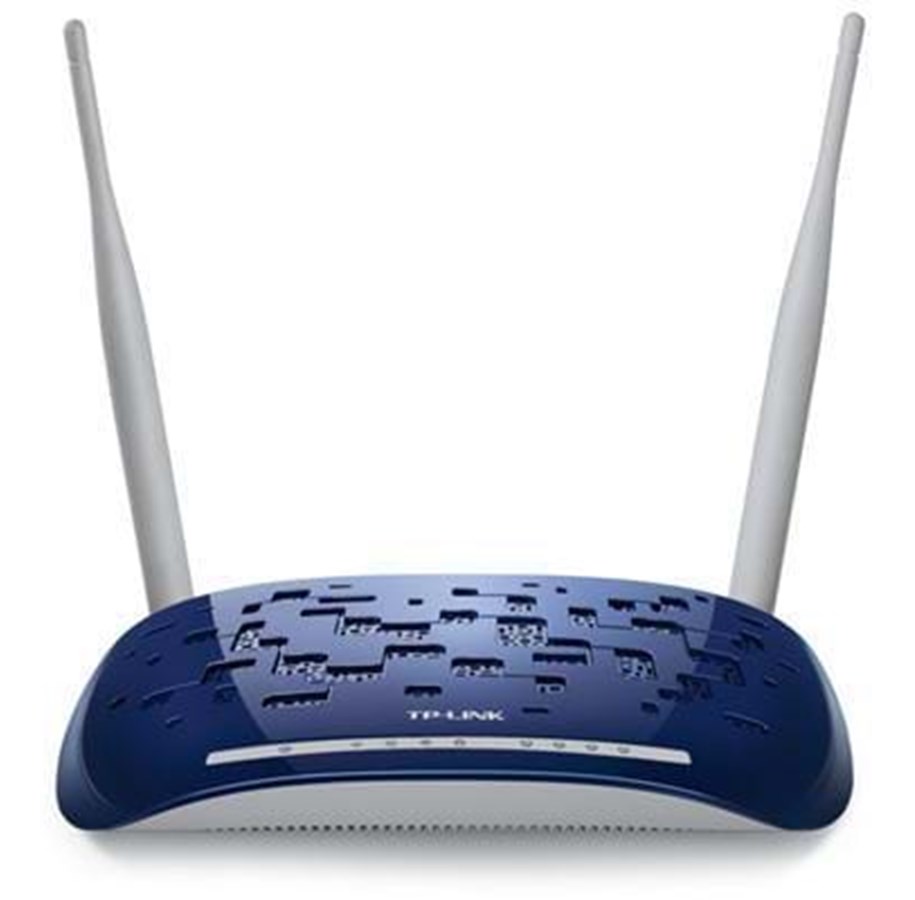

TP-Link TD-W8960N Wireless N Router - Wireless router N Standard - 802.11n
Wireless router, DSL, 4-port switch, 802.11b/g/n, desktop
107,34 €
88,71 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The TP-LINK Wireless N ADSL2+ Modem Router (TD-W8960N) is an all-in-one device that combines the functions of a high speed DSL modem, a 4-port 10/100Mbps NAT router and a wireless N access point. The TD-W8960N is designed to give you a one-stop solution to acquiring and sharing high speed Internet access over a wired/wireless network.Supporting the latest ADSL standards to provide higher performance and longer reach from your Internet Service Provider (ISP) Digital Subscriber Line Access Multiplexer (DSLAM), the TD-W8960N brings with it much higher speed than a dial-up connection without tying up the phone line.Complies with the IEEE 802.11n standard, users can create a wireless network and get up to 15x the speed and 5x the range of conventional 11g products. Now you can share your high-speed DSL Internet connection, photos, music, videos, printers, Network Attached Storage (NAS) and even bandwidth consuming applications like HD video streaming wirelessly which cannot be accommodated by 11g products
Producent
Productnummer
2214720
Model
TD-W8960N
EAN
6935364060343
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
TP-Link TD-W8960N - draadloze router - DSL-modem - Wi-Fi - desktop
Type apparaat
Draadloze router - DSL-modem - 4-poorts switch (geïntegreerd)
Type bijvoegsel
Desktop
Protocol voor digitale signaaltransmissie
ADSL, ADSL2, ADSL2+
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequentieband
2,4 GHz
Gegevensoverdrachtsnelheid
300 Mbps
Capaciteit
Permanente virtuele circuits (PVC): tot 8
IPSec VPN-tunnels: tot 10
IPSec VPN-tunnels: tot 10
Netwerk-/transportprotocol
PPTP, L2TP, IPSec, PPPoE, PPPoA, IPoA, DHCP, DNS, DDNS
Routingprotocol
Statische IP-routing
Protocol voor beheer op afstand
SNMP 1, Telnet, SNMP 2c, HTTP
Voorzieningen
Firewall-beveiliging, DMZ-poort, NAT-ondersteuning, VLAN-ondersteuning, IGMP-spionage, verkeersregeling, pakket filteren, MAC adresfiltering, VPN passthrough, URL filtering, ouderlijke controle, IP-adres filtering, firmware die kan worden opgewaardeerd, MIMO-technologie, IPSec VPN, ACL-ondersteuning, QoS, virtuele serverondersteuning, WPS, IPSec doorvoer, doorgeschakelde poorten, beheer van bandbreedte, SPIF, DNS relay, applicatiefiltering, DoS, SYN Flooding, Ping of Death
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP
Afmetingen (BxDxH)
18.16 cm x 12.57 cm x 3.62 cm
Systeemvereisten
UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000 / NT, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Algemeen
Type apparaat
Draadloze router - 4-poorts switch (geïntegreerd)
Type bijvoegsel
Desktop
Connectiviteit
Draadloos, met bekabeling
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequentieband
2,4 GHz
Gegevensoverdrachtsnelheid
300 Mbps
Capaciteit
Permanente virtuele circuits (PVC): tot 8
IPSec VPN-tunnels: tot 10
IPSec VPN-tunnels: tot 10
Netwerk-/transportprotocol
PPTP, L2TP, IPSec, PPPoE, PPPoA, IPoA, DHCP, DNS, DDNS
Routingprotocol
Statische IP-routing
Protocol voor beheer op afstand
SNMP 1, Telnet, SNMP 2c, HTTP
Encryptie-algoritme
128-bits WEP, 64-bit WEP, SSL, WPA, WPA2, WPA-PSK, WPA2-PSK
Voorzieningen
Firewall-beveiliging, DMZ-poort, NAT-ondersteuning, VLAN-ondersteuning, IGMP-spionage, verkeersregeling, pakket filteren, MAC adresfiltering, VPN passthrough, URL filtering, ouderlijke controle, IP-adres filtering, firmware die kan worden opgewaardeerd, MIMO-technologie, IPSec VPN, ACL-ondersteuning, QoS, virtuele serverondersteuning, WPS, IPSec doorvoer, doorgeschakelde poorten, beheer van bandbreedte, SPIF, DNS relay, applicatiefiltering, DoS, SYN Flooding, Ping of Death
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP, FCC, RoHS
Lijneigenschappen
Frame-indeling
ANSI T1.413i2
Communicatie
Type
DSL-modem
Protocol voor digitale signaaltransmissie
ADSL, ADSL2, ADSL2+
Protocollen & specificaties
ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5, ITU G.995.1
Max. overdrachtsnelheid
24 Mbps
Uitbreiding / Aansluiting
Interfaces
WAN: 1 x ADSL2+ - RJ-11
WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45
LAN: 3 x 10Base-T/100Base-TX - RJ-45
WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45
LAN: 3 x 10Base-T/100Base-TX - RJ-45
Antenne
Antenne
Extern opgenomen
Hoeveelheid antennes
2
Directiviteit
Omnidirectioneel
Toenameniveau
5 dBi
Stroom
Voeding
Externe stroomadapter
Diversen
Meegeleverde accessoires
ADSL-splitser
Kabels meegeleverd
1 x telefoonkabel
1 x netwerkkabel
1 x netwerkkabel
Software / Systeemvereisten
Software meegeleverd
Easy Setup Assistant
Benodigd besturingssysteem
UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000 / NT, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Afmetingen & gewicht
Breedte
18.16 cm
Diepte
12.57 cm
Hoogte
3.62 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
