Productnummer: 3021133

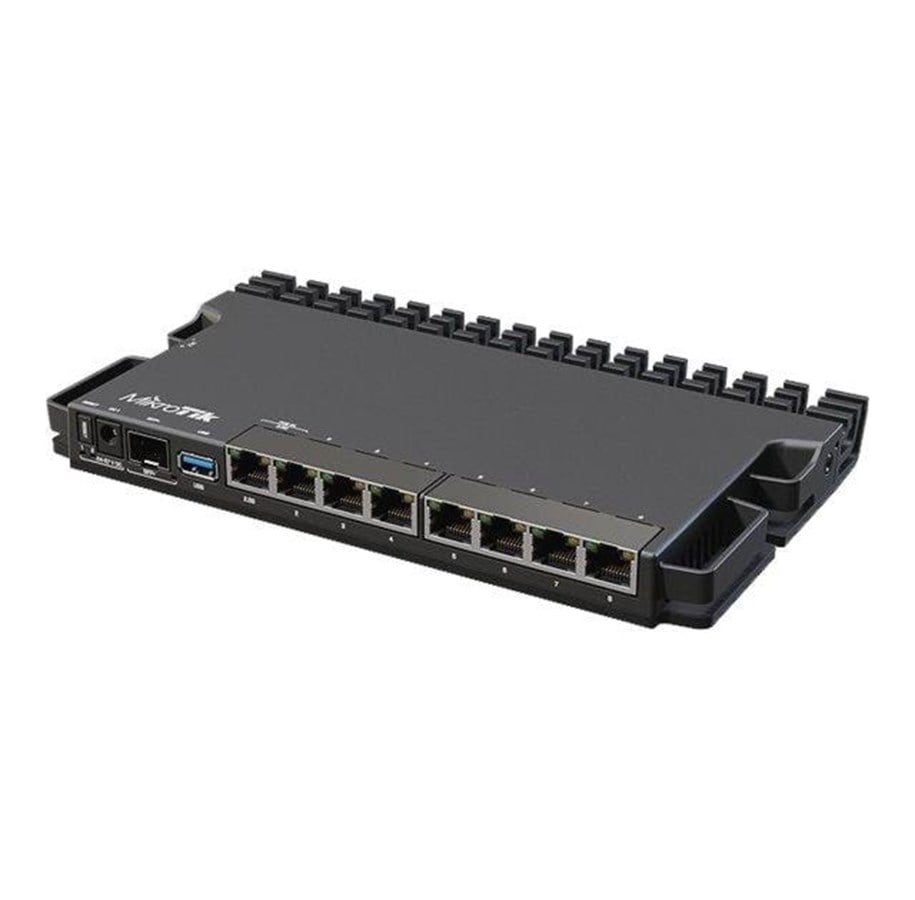

MikroTik RB5009UG+S+IN 9-Port Router (7x 1G RJ45 / 1x 2.5G RJ45 / 1x 10G SFP+) USB 3.0 - Router
Router, 10 GigE, 2.5 GigE, rack-uitvoering
Op voorraad
175,11 €
144,72 € excl. BTW
Goedkoopste privé verzending 6,99 €
15 stks
Op voorraad - 2-3 werkdagen levertijd
MikroTik created the perfect home lab router: compact, powerful, with multiple powering solutions and efficient cooling. RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board - so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways: PoE-in from Ethernet port, DC jack, 2-pin terminal on the side.
Boards offer large DDR4 RAM and NAND storage. This combination of ports and components, compared to the other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
You can mount four of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board - so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways: PoE-in from Ethernet port, DC jack, 2-pin terminal on the side.
Boards offer large DDR4 RAM and NAND storage. This combination of ports and components, compared to the other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
You can mount four of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
Producent
Productnummer
3021133
Model
RB5009UG+S+IN
EAN
4752224007148
Naar de website van de producent
Productbeschrijving
MikroTik RB5009UG+S+IN - router - rack-uitvoering
Type apparaat
Router
Type bijvoegsel
Rack-uitvoering - 1U
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Voorzieningen
PoE, zonder ventilator, metalen behuizing
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at
Afmetingen (BxDxH)
22 cm x 12.5 cm x 2.2 cm
Algemeen
Type apparaat
Router
Type bijvoegsel
Rack-uitvoering - 1U
Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Voorzieningen
PoE, zonder ventilator, metalen behuizing
Conformiteitsnormen
IEEE 802.3af, IEEE 802.3at, EAC, RoHS
Processor
1 x ARM8 88F7040 1.4 GHz
RAM
1 GB
Flashgeheugen
1 GB
Uitbreiding / Aansluiting
Interfaces
LAN: 7 x 10Base-T/100Base-TX/1000Base-TX - RJ-45
LAN: 1 x 2.5GBase-T (PoE) - RJ-45
LAN: 1 x 10Gb Ethernet - SFP+
USB 3.0: 1 x 9-pins USB type A
LAN: 1 x 2.5GBase-T (PoE) - RJ-45
LAN: 1 x 10Gb Ethernet - SFP+
USB 3.0: 1 x 9-pins USB type A
Stroom
Voeding
Externe stroomadapter
Diversen
Rackmontagekit
Optioneel
MTBF (gemiddelde tijd tussen twee storingen)
200,000 uur
Software / Systeemvereisten
Inclusief OS
MikroTik RouterOS v7
Afmetingen & gewicht
Breedte
22 cm
Diepte
12.5 cm
Hoogte
2.2 cm
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
60 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
