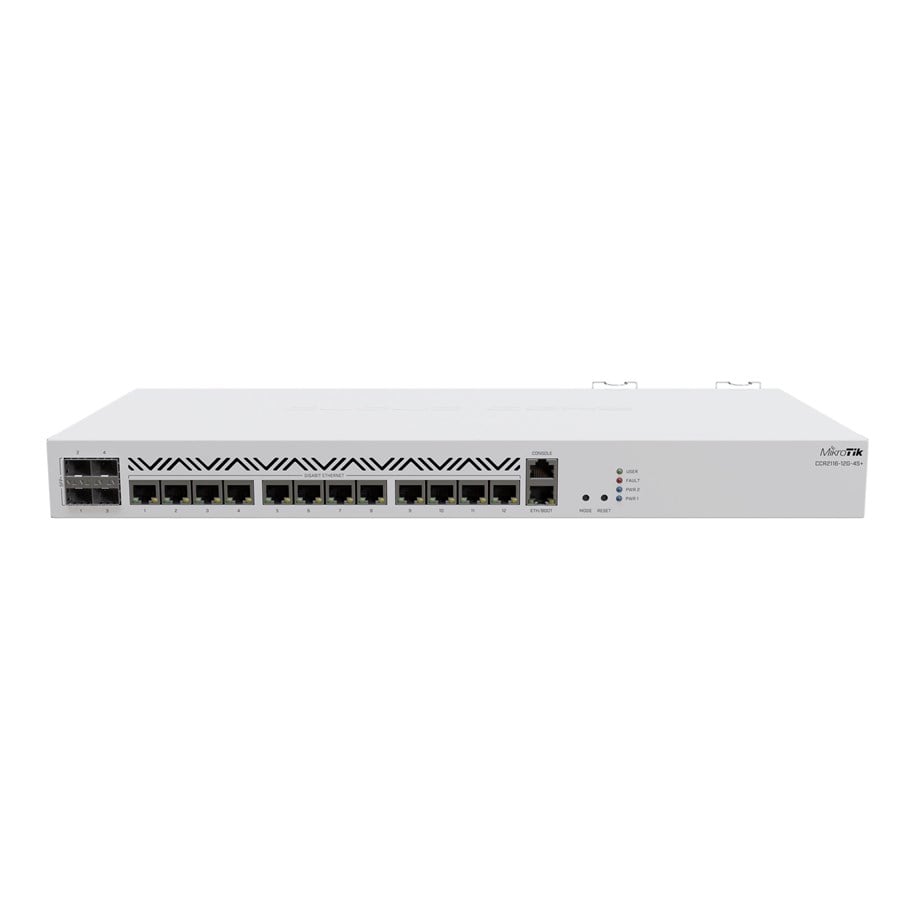

MikroTik CCR2116-12G-4S+ 16-Core 12-Port Gbe / 4-Port 10G SFP+ - Router
Maximize your network performance with the MikroTik CCR2116-12G-4S+, a high-powered Cloud Core Router designed for enterprise and ISP environments. Featuring a 16-core ARM 64-bit CPU and 16 GB of RAM, this router delivers exceptional speed and efficiency for handling complex networking tasks.
- 4x 10G SFP+ ports + 12x Gigabit Ethernet ports for high-speed connectivity
- Supports Layer 3 Hardware Offloading to enhance routing efficiency and performance
- Features an M.2 PCIe slot for expandable storage
- Dual-redundant power supply for uninterrupted operation and reliability
- Compact 1U rackmount design
861,97 €
712,37 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
The CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother - the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.
There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then it has Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.
Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If you look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.
If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations. This is the right device for you. Combination of raw power and utility with the reliable 10G networking.
CCR2116-12G-4S+: technology tested by time, built for the future.
There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then it has Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.
Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If you look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.
If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations. This is the right device for you. Combination of raw power and utility with the reliable 10G networking.
CCR2116-12G-4S+: technology tested by time, built for the future.
Producent
Productnummer
3183453
Model
CCR2116-12G-4S+
EAN
4752224007919
Naar de website van de producent
Productbeschrijving
MikroTik Cloud Core Router CCR2116-12G-4S+ - router - desktop, rack-uitvoering
Type apparaat
Router
Type bijvoegsel
Desktop, rack-uitvoering
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Prestaties
Routing verwerkingscapaciteit (1518-byte pakketgrootte): up to 3212.2 Kpps
Routingprotocol
BGP
Voorzieningen
4 ventilatoren, reset-knop, modusknop, Marvell 98DX3255 schakelchip, PCB-temperatuurbewaking, full-duplexcapaciteit
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
44.3 cm x 19.9 cm x 4.4 cm
Algemeen
Type apparaat
Router
Type bijvoegsel
Desktop, rack-uitvoering
Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Prestaties
Routing verwerkingscapaciteit (1518-byte pakketgrootte): up to 3212.2 Kpps
Routingprotocol
BGP
Voorzieningen
4 ventilatoren, reset-knop, modusknop, Marvell 98DX3255 schakelchip, PCB-temperatuurbewaking, full-duplexcapaciteit
Conformiteitsnormen
RoHS, EAC, IC
Processor
1 x Annapurna Labs AL73400 2 GHz
RAM
16 GB DDR4 SDRAM
Flashgeheugen
128 MB
Ingebouwde apparaten
Temperature sensor
Statuslampjes
Link/activiteit, fout, gebruiker, voeding 1, voeding 2
Uitbreiding / Aansluiting
Interfaces
12 x 10Base-T/100Base-TX/1000Base-T - RJ-45
4 x 10Gb Ethernet - SFP+
1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - Ethernet/boot
Console: 1 x RJ-45
4 x 10Gb Ethernet - SFP+
1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - Ethernet/boot
Console: 1 x RJ-45
Uitbreidingssleuven
1 M.2
Stroom
Voeding
Interne stroomvoorziening
Stroomredundantie
Ja
Aantal geïnstalleerd
2 (geïnstalleerd) / 2 (max.)
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Energieverbruik tijdens gebruik
60 watt
Diversen
Meegeleverde accessoires
8 schroeven, 2 x netsnoeren, K-57 bevestigingsset
Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
200,000 uur
Software / Systeemvereisten
Inclusief OS
MikroTik RouterOS
Afmetingen & gewicht
Breedte
44.3 cm
Diepte
19.9 cm
Hoogte
4.4 cm
Omgevingsparameters
Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
60 °C
