Productnummer: 3336233

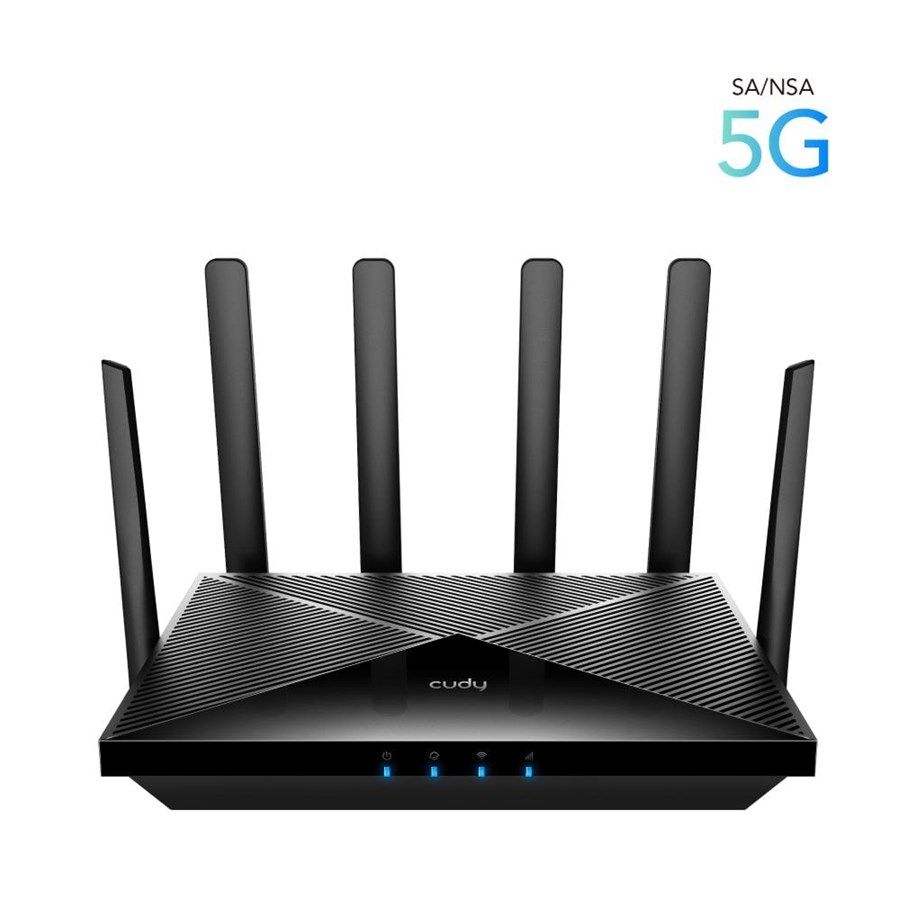

Cudy P5 5G SA/NSA AX3000 Wi-Fi 6 Router - Wireless router 5G

Cudy P5 draadloze router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G Zwart

Op voorraad
268,02 € 221,50 € excl. BTW
Goedkoopste privé verzending 6,99 €
4 stks Op voorraad - 2-3 werkdagen levertijd
Inclusief oplader
Charger included

A result of the fine-turned collaboration of Qualcomm 5G and Qualcomm Wi-Fi 6 solutions, focusing on unleashing full Wi-Fi and 5G speeds without creating interference. Equipped with upgraded 5G standard (3GPP REL. 16), P5 delivers a fiber-like low latency network for any demanding tasks.

P5 provides 5G peak speeds at 2.4 Gbps (DL/SA) and 900 Mbps (UL/SA), perfectly matching the mighty 3000 Mbps dual-band Wi-Fi 6 for 4K streaming. P5 also supports Mesh technology to reach extensive coverage. VPN and DNS over TLS enable safe connection through public networks.

Super-Fast Wi-Fi 6 Connects 4× More Devices
Full 160 Mhz channel width enables peak speed at 2402 Mbps on the 5 GHz band, best for lag-free gaming and live streaming in flawless quality. Far-reaching 2.4 GHz signal covers an expansive area, so you can enjoy the network in the backyard. OFDMA and powerful CPU enables 4× capacity for more devices.

Redundant SIM Slots
Dual SIM slots provide redundancy and Dual Nano SIM slots for redundant backup. Both SIM slots can be filled. Auto and manual mode is available for redundancy settings

WAN Internet, 4G Backup
Set WAN/LAN port as WAN to enable Cudy to use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.

Easily Optimize Signal Reception
Set WAN/LAN port as WAN to further assure staying online. Detachable cellular antennas enable reception optimization by plugging extension cables up to 12 meters* into SMA interface connectors.

4G/5G Band Lock
Band lock makes it possible to lock the 4/5G working frequency to one or several bands to keep the stability of operation.

TTL Settings
Support manual set TTL values to meet ISP's requirement(such as Verizon, Visible).
Support set IPv4 TTL and IPv6 HL Values.

Advanced DNS Security
Support DNS Encryption with trustful partners, preventing eavesdropping and manipulation of DNS data via man-in-the middle attack.

Producent
Productnummer
3336233
Model
P5
EAN
6971690792282
Naar de website van de producent
Productbeschrijving
Cudy P5 - draadloze router - WWAN - Wi-Fi 6 - 5G, 4G - desktop, wandbevestiging
Type apparaat
Draadloze router - draadloze mobiele modem - 4-poorts switch (geïntegreerd)
Type bijvoegsel
Desktop, wandbevestiging
Mobiele protocol
5G, 5G Sub-6 Ghz, 5G NR, FDD LTE, WCDMA, TDD LTE, 4G LTE
Generatie
5G, 4G
Frequentieband mobiele telefoon
5G n1, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n41, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B71, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, WCDMA B1, WCDMA B5, WCDMA B8
Aantal WAN-poorten
1
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6)
Frequentieband
2,4 GHz / 5 GHz
Gegevensoverdrachtsnelheid
3.4 Gbps
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 574 Mbps
Maximale gegevenssnelheid (5 GHz): 2402 Mbps
Kanaalbandbreedte: 160 MHz
Capaciteit
Streams: 4
Netwerk-/transportprotocol
IPv4, IPv6, DHCPv6, PPTP, L2TP, OpenVPN, WireGuard, IPSec, DS-Lite
Routingprotocol
Statische IP-routing, IGMP
Protocol voor beheer op afstand
TR-069, TR-098, TR-111, TR-181
Voorzieningen
ZeroTier VPN-clientondersteuning, adresreservering, DHCP client, DHCP-server, DMZ-ondersteuning, dynamisch DNS, dynamische IP-modus, Guest Network, NAT-poort-herroutering, NAT-ondersteuning, poort-triggering, statische IP-modus, beheer toegang op afstand, DHCP IPv6-relais, toegangspunt operationele modus, 2T2R MIMO-technologie, bundelvormende technologie, reset-knop, WPS-knop, dual band, MU-MIMO-technologie, VPN client, VPN-server, Backhaul Technology, WISP-modus, app-bediening, reservekopie/herstellen, standaard configuratie kopiëren/bijwerken/herstellen via web, domeinfilter, DoS-bescherming, firmware die kan worden opgewaardeerd, H.323 Pass-Through, IGMP proxy, IGMP-spionage, IP-adres filtering, IP-MAC verbinding, IPSec doorvoer, ondersteunt IPTV, L2TP passthrough, MAC adresfiltering, OpenVPN-client, override functie, PPTP passthrough, fireware bijwerken op afstand, RTSP Pass-Through, SIP Pass-Through, SPIF, TFTP-ondersteuning, VLAN-ondersteuning, VLAN Tagging, WOL, Wi-Fi-planning, WireGuard, 4x4 MIMO-technologie, CPE VLAN
Conformiteitsnormen
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, UPnP
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
25.3 cm x 15.25 cm x 4.82 cm
Gewicht
670 g
Systeemvereisten
Android, Apple MacOS, Microsoft Windows
Lokalisatie
Europa

Algemeen

Type apparaat
Draadloze router - 4-poorts switch (geïntegreerd)
Type bijvoegsel
Desktop, wandbevestiging
Connectiviteit
Met bekabeling, draadloos
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6)
Frequentieband
2,4 GHz / 5 GHz
Gegevensoverdrachtsnelheid
3.4 Gbps
Max. bereik buitenshuis
170 m
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 574 Mbps
Maximale gegevenssnelheid (5 GHz): 2402 Mbps
Kanaalbandbreedte: 160 MHz
Capaciteit
Streams: 4
Netwerk-/transportprotocol
IPv4, IPv6, DHCPv6, PPTP, L2TP, OpenVPN, WireGuard, IPSec, DS-Lite
Routingprotocol
Statische IP-routing, IGMP
Protocol voor beheer op afstand
TR-069, TR-098, TR-111, TR-181
Encryptie-algoritme
WPA2-PSK, WPA-PSK, WPA3
Wifi-classificatie
AX3000
Voorzieningen
ZeroTier VPN-clientondersteuning, adresreservering, DHCP client, DHCP-server, DMZ-ondersteuning, dynamisch DNS, dynamische IP-modus, Guest Network, NAT-poort-herroutering, NAT-ondersteuning, poort-triggering, statische IP-modus, beheer toegang op afstand, DHCP IPv6-relais, toegangspunt operationele modus, 2T2R MIMO-technologie, bundelvormende technologie, reset-knop, WPS-knop, dual band, MU-MIMO-technologie, VPN client, VPN-server, Backhaul Technology, WISP-modus, app-bediening, reservekopie/herstellen, standaard configuratie kopiëren/bijwerken/herstellen via web, domeinfilter, DoS-bescherming, firmware die kan worden opgewaardeerd, H.323 Pass-Through, IGMP proxy, IGMP-spionage, IP-adres filtering, IP-MAC verbinding, IPSec doorvoer, ondersteunt IPTV, L2TP passthrough, MAC adresfiltering, OpenVPN-client, override functie, PPTP passthrough, fireware bijwerken op afstand, RTSP Pass-Through, SIP Pass-Through, SPIF, TFTP-ondersteuning, VLAN-ondersteuning, VLAN Tagging, WOL, Wi-Fi-planning, WireGuard, 4x4 MIMO-technologie, CPE VLAN
Conformiteitsnormen
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, UPnP, FCC
Processor
A53 IPQ5018 1 GHz
RAM
256 MB DDR3 SDRAM
Flashgeheugen
128 MB
Statuslampjes
Internet, voeding, signalering, Wi-Fi

Lijneigenschappen

Lijncoderingsindeling
1024 QAM, OFDMA

Communicatie

Type
Draadloze mobiele modem
Mobiele protocol
5G, 5G Sub-6 Ghz, 5G NR, FDD LTE, WCDMA, TDD LTE, 4G LTE
Generatie
5G, 4G
Frequentieband mobiele telefoon
5G n1, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n41, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B71, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, WCDMA B1, WCDMA B5, WCDMA B8

Internet of Things (IoT)

Geschikt voor Internet of Things (IoT)
Ja
Communicatietype
Cloud
Communicatietechnologieën
Wi-Fi, 5G, 4G

Uitbreiding / Aansluiting

Interfaces
LAN: 3 x 10Base-T/100Base-TX/1000Base-TX - RJ-45
WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-TX - RJ-45
Uitbreidingssleuven
2 (totaal) / 2 (vrij) x Nano-SIM

Antenne

Antenne
Extern geïntegreerd en afneembaar
Hoeveelheid antennes
6
Configuratiegegevens
4 detachable external LTE antennas, 2 fixed external WiFi antennas
Toenameniveau
4.79 dBi

Stroom

Voeding
Externe stroomadapter
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)

Diversen

Kabels meegeleverd
1 x netwerkkabel
Lokalisatie
Europa

Software / Systeemvereisten

Benodigd besturingssysteem
Android, Apple MacOS, Microsoft Windows

Afmetingen & gewicht

Breedte
25.3 cm
Diepte
15.25 cm
Hoogte
4.82 cm
Gewicht
670 g

Afmetingen & gewicht (transport)

Verzendbreedte
39.3 cm
Verzenddiepte
25 cm
Verzendhoogte
6 cm
Verzendgewicht
1.231 kg

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
