Productnummer: 3378506

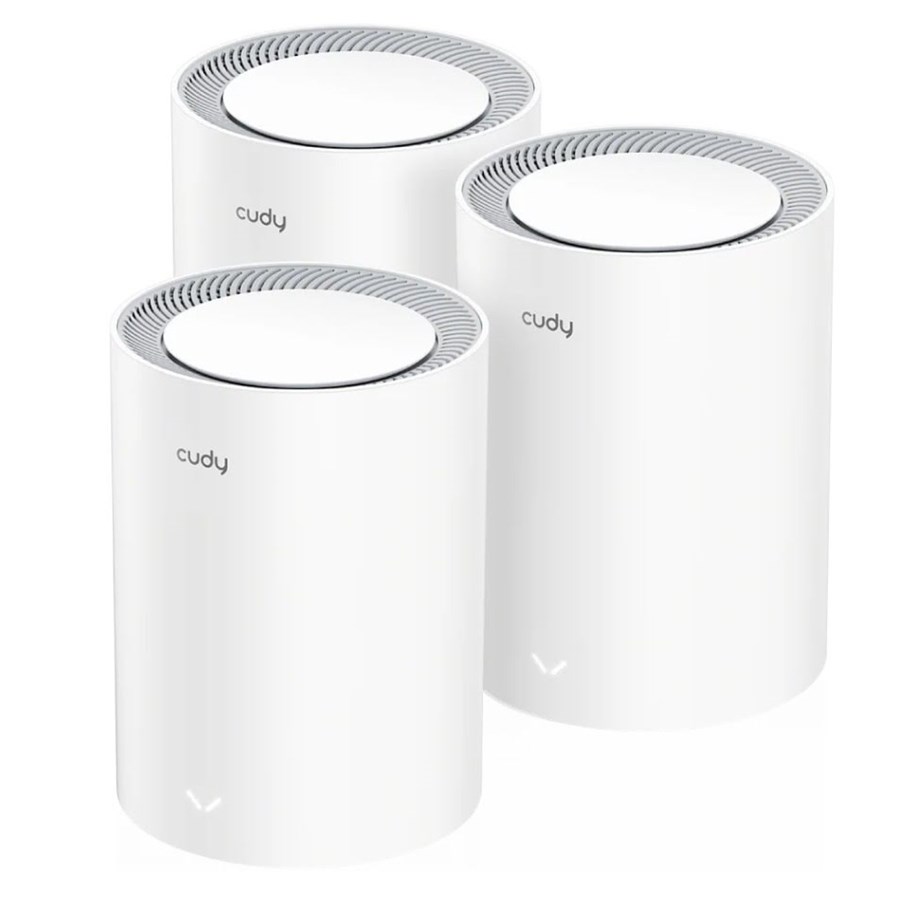

Cudy BE3600 Gigabit Mesh Wi-Fi 7 System (3-Pack) - Mesh router 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
1.0, wifi-systeem, (3 routers), tot 270 m², maas Wi-Fi 7, 1GbE Dual Band
173,79 €
143,63 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd
Inclusief oplader
The Cudy M3600 offers a powerful networking solution for both wired and wireless connectivity. With a maximum data transfer rate of 3.6 Gbps, this Wi-Fi system ensures faster and stable connections, ideal for streaming and online gaming. It supports multiple devices with a capacity for up to 200 connected devices, making it suitable for households or small offices that require extensive network coverage.Equipped with 4 internal antennas, the M3600 provides coverage of up to 270 sq.m and features technologies such as MU-MIMO, beamforming, and Quality of Service (QoS) for optimal performance. The device operates on both 2.4 GHz and 5 GHz bands, ensuring flexibility in connectivity options while supporting various encryption algorithms including WPA3 for enhanced security.
Producent
Productnummer
3378506
Model
M3600(3-Pack)
EAN
6971690793661
Naar de website van de producent
Productbeschrijving
Cudy M3600 - 1.0 - wifi-systeem - Wi-Fi 7 - desktop
Type apparaat
Wifi-systeem - maas
Type bijvoegsel
Desktop
Wifi-systeemcomponenten
3 routers
Wifi-systeembereik
Tot 270 m²
Aantal WAN-poorten
1
Protocol voor gegevenskoppeling
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet
Frequentieband
2,4 GHz / 5 GHz
Gegevensoverdrachtsnelheid
3.6 Gbps
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 2882 Mbps
Kanaalbreedte: 20 / 40 / 80 / 160 MHz
Maximale gegevenssnelheid (5 GHz): 2882 Mbps
Kanaalbreedte: 20 / 40 / 80 / 160 MHz
Capaciteit
Streams: 4
Verbonden apparaten: 200
Verbonden apparaten: 200
Netwerk-/transportprotocol
IPv4, IPv6, DHCPv6, PPTP, L2TP, PPPoE, OpenVPN, WireGuard, IPSec, DHCP, DS-Lite, FTP, TFTP, RTSP, DNS
Routingprotocol
Statische IP-routing, IGMP
Protocol voor beheer op afstand
SLAAC, TR-069, TR-098, TR-111, TR-181
Voorzieningen
Cloudbeheerd, VPN-server, VPN client, CPU met viervoudige kern, 2T2R MIMO-technologie, bundelvormende technologie, WPS-knop, reset-knop, MLO, MRU, MU-MIMO-technologie, BSS-kleuren, toegangspunt operationele modus, routermodus, draadloze extendermodus, WISP-modus, Backhaul Technology, DHCP client, DHCP-server, QoS, ondersteunt IPTV, IGMP proxy, IGMP-spionage, doorgeschakelde poorten, poort-triggering, DMZ-ondersteuning, SPI, DoS-bescherming, pingdetectie, IPSec doorvoer, L2TP passthrough, PPTP passthrough, FTP passthrough, TFTP passthrough, H.323 Pass-Through, SIP Pass-Through, RTSP Pass-Through, WOL, Wi-Fi-planning, MAC adresfiltering, IP-MAC verbinding, IP-adres filtering, ZeroTier VPN-clientondersteuning, firmware die kan worden opgewaardeerd, domeinfilter
Conformiteitsnormen
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11b, wifi-gecertificeerd 7, UPnP
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
11 cm x 11 cm x 15.45 cm
Algemeen
Type apparaat
Wifi-systeem - maas - 2-poorts switch (geïntegreerd)
Wifi-systeemcomponenten
3 routers
Wifi-systeembereik
Tot 270 m²
Type bijvoegsel
Desktop
Connectiviteit
Met bekabeling, draadloos
Protocol voor gegevenskoppeling
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet
Frequentieband
2,4 GHz / 5 GHz
Gegevensoverdrachtsnelheid
3.6 Gbps
Max. bereik buitenshuis
220 m
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 2882 Mbps
Kanaalbreedte: 20 / 40 / 80 / 160 MHz
Maximale gegevenssnelheid (5 GHz): 2882 Mbps
Kanaalbreedte: 20 / 40 / 80 / 160 MHz
Capaciteit
Streams: 4
Verbonden apparaten: 200
Verbonden apparaten: 200
Netwerk-/transportprotocol
IPv4, IPv6, DHCPv6, PPTP, L2TP, PPPoE, OpenVPN, WireGuard, IPSec, DHCP, DS-Lite, FTP, TFTP, RTSP, DNS
Routingprotocol
Statische IP-routing, IGMP
Protocol voor beheer op afstand
SLAAC, TR-069, TR-098, TR-111, TR-181
Encryptie-algoritme
WPA2, WPA, WPA3
Wifi-classificatie
BE3600
Maasnetwerken
Ja
Voorzieningen
Cloudbeheerd, VPN-server, VPN client, CPU met viervoudige kern, 2T2R MIMO-technologie, bundelvormende technologie, WPS-knop, reset-knop, MLO, MRU, MU-MIMO-technologie, BSS-kleuren, toegangspunt operationele modus, routermodus, draadloze extendermodus, WISP-modus, Backhaul Technology, DHCP client, DHCP-server, QoS, ondersteunt IPTV, IGMP proxy, IGMP-spionage, doorgeschakelde poorten, poort-triggering, DMZ-ondersteuning, SPI, DoS-bescherming, pingdetectie, IPSec doorvoer, L2TP passthrough, PPTP passthrough, FTP passthrough, TFTP passthrough, H.323 Pass-Through, SIP Pass-Through, RTSP Pass-Through, WOL, Wi-Fi-planning, MAC adresfiltering, IP-MAC verbinding, IP-adres filtering, ZeroTier VPN-clientondersteuning, firmware die kan worden opgewaardeerd, domeinfilter
Conformiteitsnormen
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11b, wifi-gecertificeerd 7, UPnP, FCC
Processor
1 x Broadcom BCM6764 2 GHz
RAM
512 MB DDR3L SDRAM
Flashgeheugen
128 MB
Statuslampjes
Systeem, koppeling/activiteit/snelheid
Lijneigenschappen
Lijncoderingsindeling
4096 QAM, OFDMA
Uitbreiding / Aansluiting
Interfaces
LAN: 2 x 10Base-T/100Base-TX - RJ-45
WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45
WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45
Antenne
Antenne
Intern
Hoeveelheid antennes
4
Stroom
Voeding
Externe stroomadapter
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Diversen
Kabels meegeleverd
1 x netwerkkabel
Afmetingen & gewicht
Breedte
11 cm
Diepte
11 cm
Hoogte
15.45 cm
Afmetingen & gewicht (transport)
Verzendbreedte
38 cm
Verzenddiepte
13 cm
Verzendhoogte
26.5 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
