Productnummer: 3414682

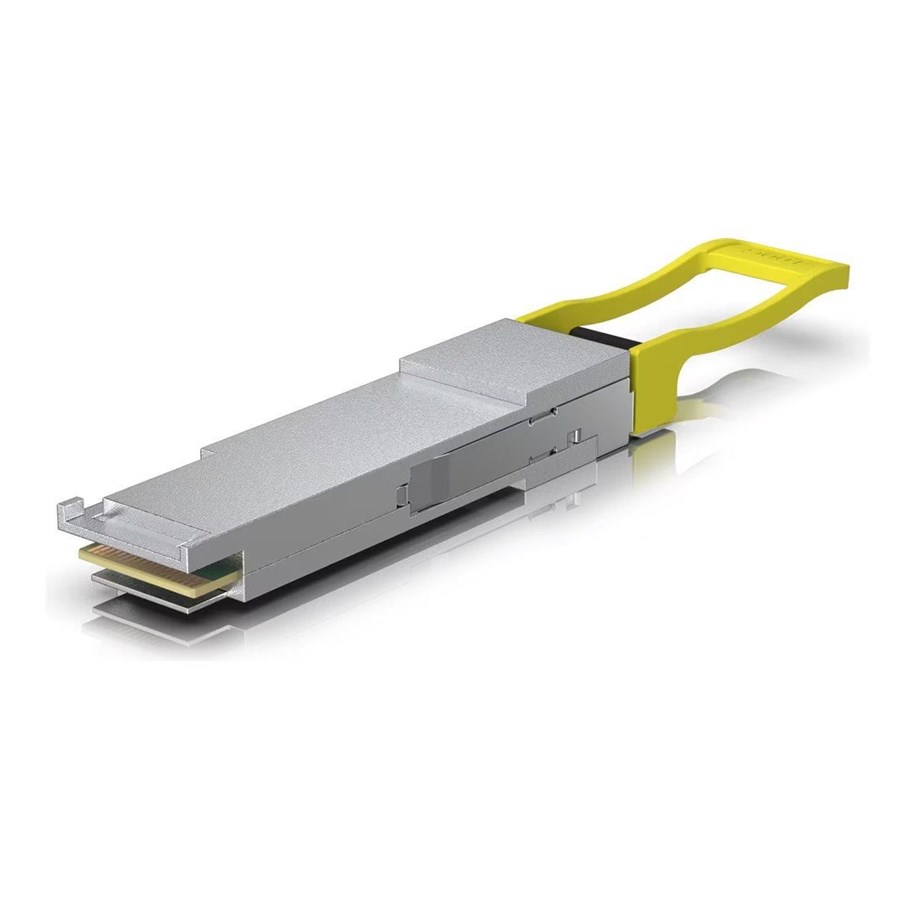

Ubiquiti UniFi - QSFP28 transceiver module - 100GbE
QSFP28 zendontvangermodule, 100GbE, 100GBase-PSM4, MPO-12/APC enkele modus, maximaal 2 km, 1310 (TX) / 1310 (RX) nm
183,02 €
151,26 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
The Ubiquiti UniFi QSFP28 transceiver module offers connectivity with a data transfer rate of 100 Gbps. It features an MPO-12/APC single-mode connector type, ensuring reliability in high-speed wired networking environments. With a maximum transfer distance of 2 km, this Plug-and-Play module is designed for versatility, supporting various applications while maintaining compliance with standards such as Laser Class 1 and EN 60825-1:2014.Operating efficiently between 0°C and 70°C, the module is suitable for a range of environments. It consumes a modest 3.5 watts during operation, making it energy-efficient while delivering performance for 100 Gigabit Ethernet connectivity. Ideal for data centers or enterprise networks, this transceiver module fully supports Ethernet 100GBase-PSM4 cabling, ensuring seamless integration and optimized network performance.
Producent
Productnummer
3414682
Model
UACC-OM-QSFP28-PSM4
EAN
0810084690017
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Ubiquiti UniFi - QSFP28 zendontvangermodule - 100GbE
Type apparaat
QSFP28 zendontvangermodule - MPO-12/APC enkele modus
Model
Insteekmodule
Bekabelingstype
100GBase-PSM4
Gegevensoverdrachtsnelheid
100 Gbps
Optische golflengte
1310 (TX) / 1310 (RX) nm
Protocol voor gegevenskoppeling
100GbE
Max. overdrachtsafstand
2 km
Algemeen
Type apparaat
QSFP28 zendontvangermodule
Model
Insteekmodule
Netwerk
Connectiviteit
Met bekabeling
Bekabelingstype
100GBase-PSM4
Protocol voor gegevenskoppeling
100GbE
Gegevensoverdrachtsnelheid
100 Gbps
Optische golflengte
1310 (TX) / 1310 (RX) nm
Max. overdrachtsafstand
2 km
Uitbreiding / Aansluiting
Interfaces
1 x Ethernet 100GBase-PSM4 - MPO-12/APC enkele modus
Diversen
Conformiteitsnormen
Laser Class 1, EN 60825-1:2014, RCM, UKCA, WEEE
Stroom
Energieverbruik tijdens gebruik
3.5 watt
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
70 °C
