Productnummer: 3414681

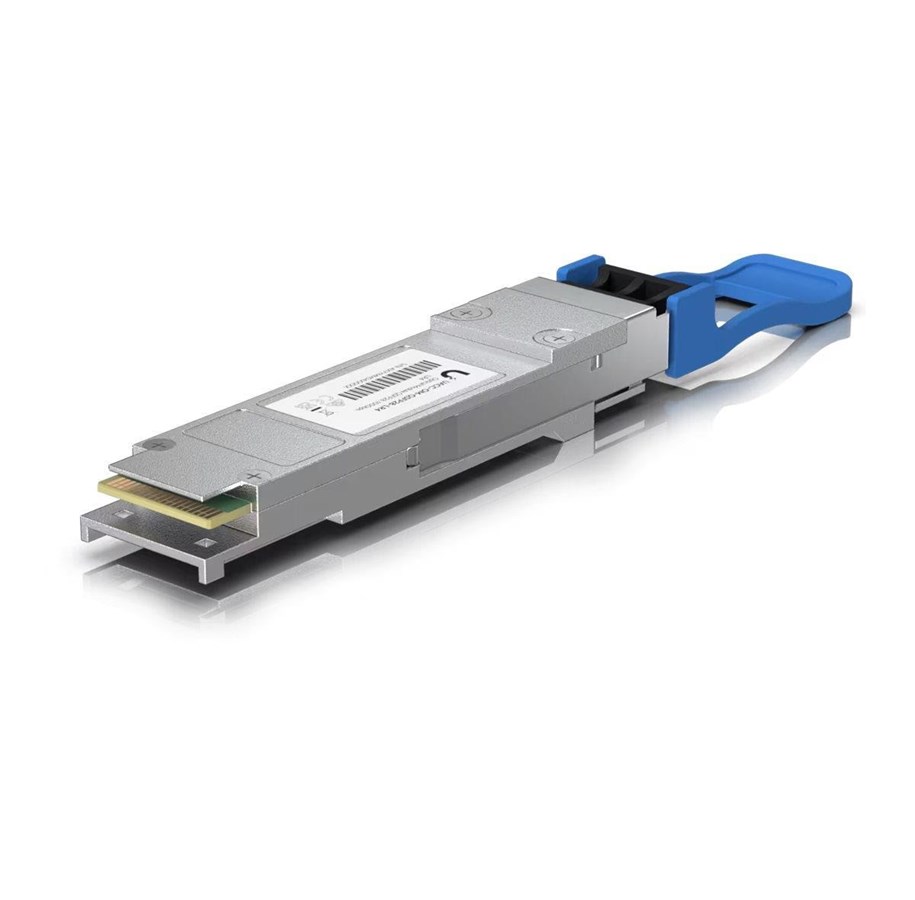

Ubiquiti UniFi - QSFP28 transceiver module - 100GbE
QSFP28 zendontvangermodule, 100GbE, 100GBase-LR4, LC/UPC enkele modus, maximaal 10 km, 1295 nm / 1300 nm / 1304 nm / 1309 nm (TX) / 1295 nm / 1300 nm / 1304 nm / 1309 nm (RX)
317,49 €
262,39 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The Ubiquiti UniFi UACC-OM-QSFP28-LR4 is designed for high-performance networking. This QSFP28 transceiver module supports a data transfer rate of 100 Gbps, suitable for demanding applications. With a maximum transfer distance of 10 km, it ensures reliable communication over long distances. The dual LC/UPC single-mode connectors allow for integration into Ethernet 100GBase-LR4 cabling, providing robust connectivity for network infrastructures. Operating under various environmental conditions, this module functions effectively between temperatures of 0°C and 70°C. Compliance with Laser Class 1 standards ensures safety, while adherence to WEEE, RCM, and UKCA standards highlights its reliability and environmental responsibility. The power consumption during operation is 4 watts, making it an energy-efficient choice for modern networking solutions.
Producent
Productnummer
3414681
Model
UACC-OM-QSFP28-LR4
EAN
810084690000
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Ubiquiti UniFi - QSFP28 zendontvangermodule - 100GbE
Type apparaat
QSFP28 zendontvangermodule - LC/UPC enkele modus
Model
Insteekmodule
Bekabelingstype
100GBase-LR4
Gegevensoverdrachtsnelheid
100 Gbps
Optische golflengte
1295 nm / 1300 nm / 1304 nm / 1309 nm (TX) / 1295 nm / 1300 nm / 1304 nm / 1309 nm (RX)
Protocol voor gegevenskoppeling
100GbE
Max. overdrachtsafstand
10 km
Algemeen
Type apparaat
QSFP28 zendontvangermodule
Model
Insteekmodule
Netwerk
Connectiviteit
Met bekabeling
Bekabelingstype
100GBase-LR4
Protocol voor gegevenskoppeling
100GbE
Gegevensoverdrachtsnelheid
100 Gbps
Optische golflengte
1295 nm / 1300 nm / 1304 nm / 1309 nm (TX) / 1295 nm / 1300 nm / 1304 nm / 1309 nm (RX)
Max. overdrachtsafstand
10 km
Uitbreiding / Aansluiting
Interfaces
1 x Ethernet 100GBase-LR4 (duplex) - LC/UPC single-mode x 2
Diversen
Conformiteitsnormen
Laser Class 1, EN 60825-1:2014, RCM, UKCA, WEEE
Stroom
Energieverbruik tijdens gebruik
4 Watt
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
70 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
