Productnummer: 2292792

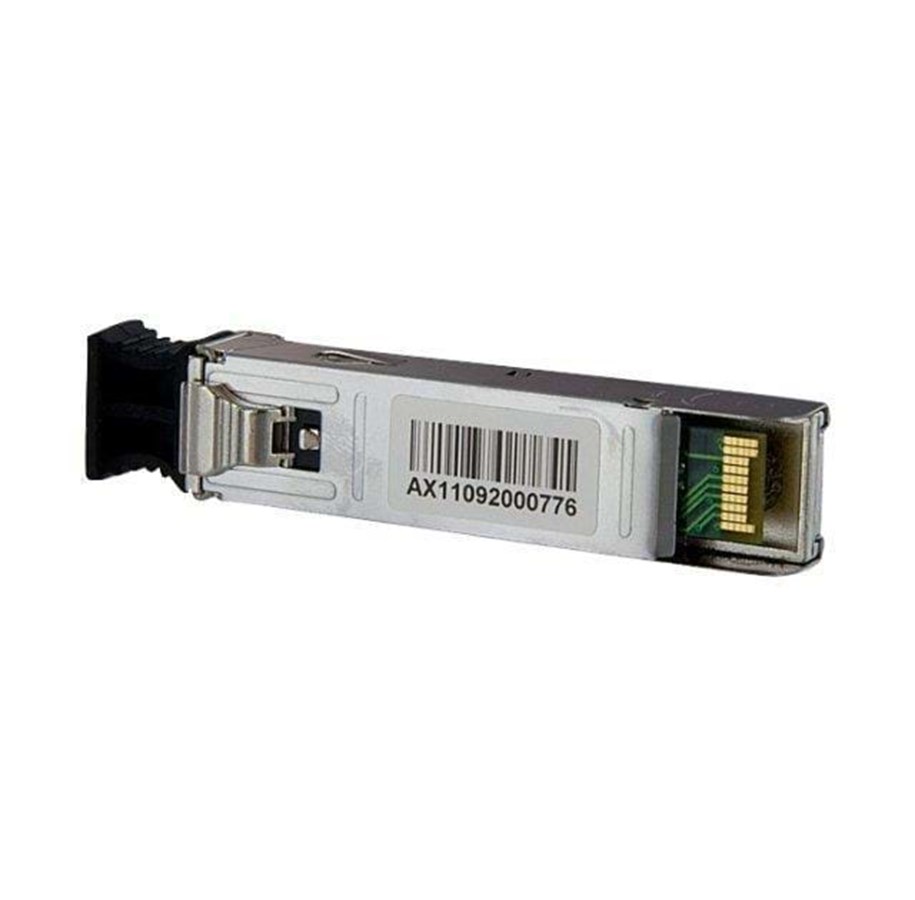

StarTech.com Gigabit 850nm Multi Mode SF
LC 550m, SFP (mini-GBIC) transceiver module, 1000Base-SX, LC multimode, plug-in module, up to 550 m, 850 nm
55,31 €
45,71 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
StarTech.com's Multi Mode SFP (Mini GBIC) LC Optical Transceiver Module is a cost-effective solution for improving the performance and connectivity of fiber-connected network devices. It can be installed into any fiber networking device with a SFP MSA compliant port, allowing for easy upgrades to connect to remote locations using LC terminated multimode fiber. The optical transceiver allows for convenient and scalable installation without interrupting network traffic or requiring a device reboot. With a short wavelength VCSEL laser diode, it enables a maximum cable distance of 550m over multi mode fiber cables and is compatible with SFP Multi-Sourcing Agreement (MSA) hardware and networks while fully complying with IEEE 802.3z 1000BASE-SX Standards.
Producent
Productnummer
2292792
Model
SFPSXMM
EAN
0065030834940
Naar de website van de producent
Productbeschrijving
StarTech.com MSA conform Gigabit glasvezel SFP module - Single mode SFP transceiver - 1000BASE-SX - MM LC - 550 m - 850nm - SFP (mini-GBIC) transceivermodule - 1GbE
Type apparaat
SFP (mini-GBIC) transceivermodule - LC multi-modus
Model
Insteekmodule
Bekabelingstype
1000Base-SX
Gegevensoverdrachtsnelheid
1 Gbps
Optische golflengte
850 nm
Protocol voor gegevenskoppeling
1GbE
Max. overdrachtsafstand
550 m
Afmetingen (BxDxH)
1.3 cm x 5.5 cm x 0.9 cm
Gewicht
18 g
Ontworpen voor
P/N: MCM1110SFP
Algemeen
Type apparaat
SFP (mini-GBIC) transceivermodule
Model
Insteekmodule
Netwerk
Connectiviteit
Met bekabeling
Bekabelingstype
1000Base-SX
Protocol voor gegevenskoppeling
1GbE
Gegevensoverdrachtsnelheid
1 Gbps
Optische golflengte
850 nm
Max. overdrachtsafstand
550 m
Voorzieningen
Full-duplexcapaciteit
Conformiteitsnormen
IEEE 802.3z
Uitbreiding / Aansluiting
Interfaces
1 x Ethernet 1000Base-SX - LC multi-mode x 2
Uitwisselbare slots
1 x SFP (mini-GBIC)
Diversen
Conformiteitsnormen
CSA, UL, TUV, FCC, RoHS
Afmetingen & gewicht
Breedte
1.3 cm
Diepte
5.5 cm
Hoogte
0.9 cm
Gewicht
18 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
70 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95%
Informatie over Compatibiliteit
Ontworpen voor
P/N: MCM1110SFP
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
