Productnummer: 2401809

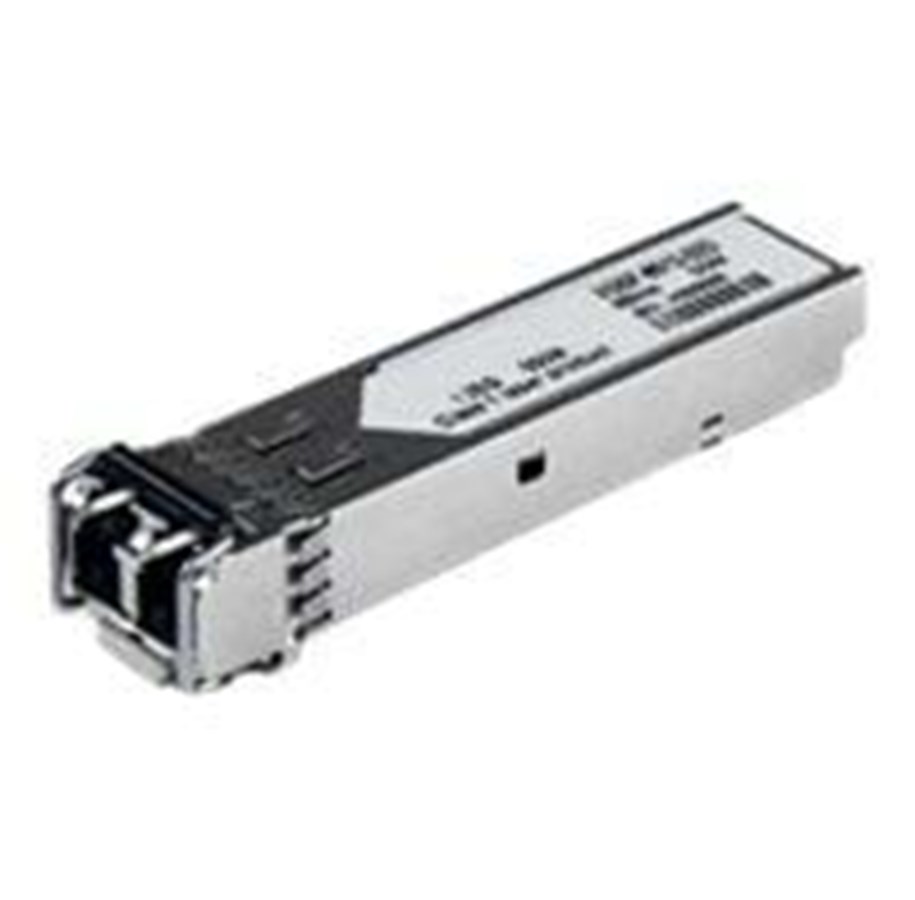

StarTech.com Cisco Compatible Gigabit Fiber SFP Module MM LC
550m (DDM), SFP (mini-GBIC) transceiver module, 1000Base-SX, LC multimode, plug-in module, up to 550 m, 850 nm
38,74 €
32,02 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
Add, replace or upgrade SFP modules on Gigabit fiber equipment. The SFPGESST Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.This 850nm multi-mode SFP module is compatible with the Cisco SFP-GE-S transceiver.
Producent
Productnummer
2401809
Model
SFPGESST
EAN
0065030849432
Naar de website van de producent
Productbeschrijving
StarTech.com Cisco-compatibele gigabit glasvezel SFP-zendontvangermodule MM LC met DDM - 550 m (mini-GBIC) - SFP (mini-GBIC) transceivermodule - 1GbE
Type apparaat
SFP (mini-GBIC) transceivermodule - LC multi-modus
Model
Insteekmodule
Bekabelingstype
1000Base-SX
Optische golflengte
850 nm
Protocol voor gegevenskoppeling
1GbE
Max. overdrachtsafstand
550 m
Afmetingen (BxDxH)
1.2 cm x 6 cm x 1 cm
Gewicht
17 g
Ontworpen voor
P/N: ET91000LCOAM, ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2
Algemeen
Type apparaat
SFP (mini-GBIC) transceivermodule
Model
Insteekmodule
Netwerk
Connectiviteit
Met bekabeling
Bekabelingstype
1000Base-SX
Protocol voor gegevenskoppeling
1GbE
Optische golflengte
850 nm
Max. overdrachtsafstand
550 m
Voorzieningen
Full-duplexcapaciteit, half duplex modus, Digital Diagnostics Monitoring Interface (DDMI)
Conformiteitsnormen
IEEE 802.3z
Uitbreiding / Aansluiting
Interfaces
1 x Ethernet 1000Base-SX - LC multi-mode x 2
Uitwisselbare slots
1 x SFP (mini-GBIC)
Diversen
Conformiteitsnormen
UL, FCC, RoHS
Afmetingen & gewicht
Breedte
1.2 cm
Diepte
6 cm
Hoogte
1 cm
Gewicht
17 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
70 °C
Luchtvochtigheidsgraad bij gebruik
30 - 70%
Informatie over Compatibiliteit
Ontworpen voor
P/N: ET91000LCOAM, ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
