Productnummer: 2372600

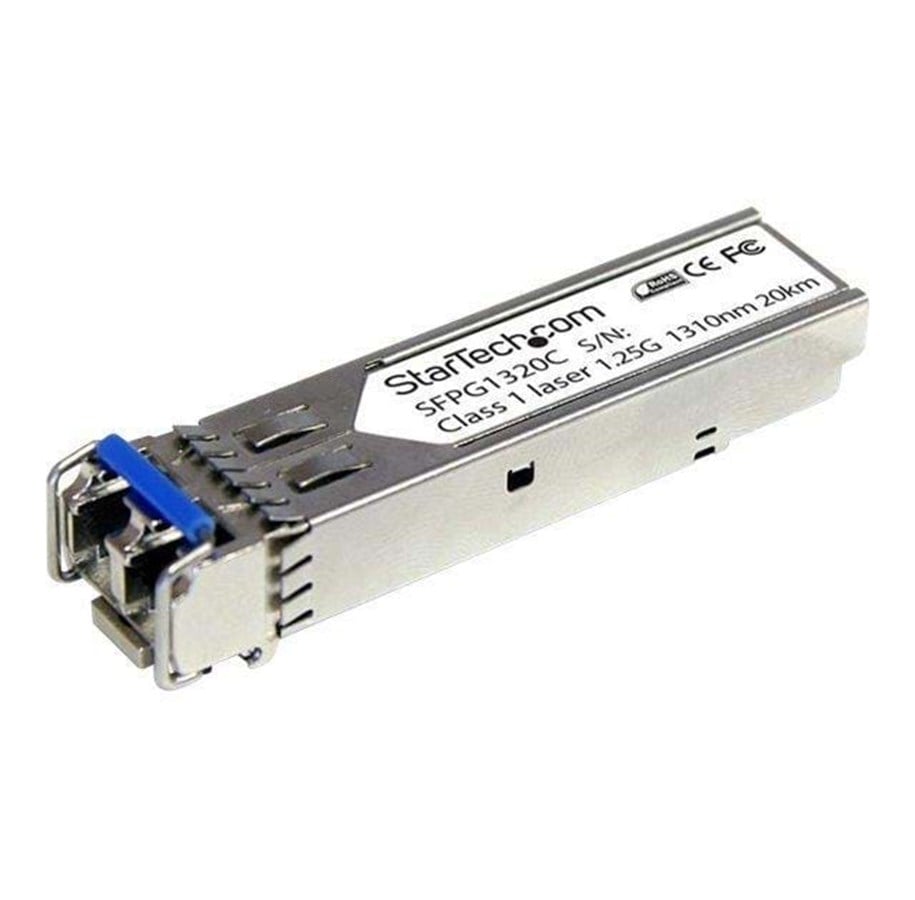

StarTech.com 1.25 Gbps Gigabit 1310nm GB
SFP transmitter/receiver module (mini-GBIC), 1000Base-LH, LC single mode, plug-in module, up to 20 km, 1310 nm
51,70 €
42,73 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Add, replace or upgrade SFP modules on Gigabit fiber equipment. The SFPG1320C Single-Mode Fiber Transceiver LC SFP w/ DDM (20km, 1310nm) offers a cost-effective way to add, replace or upgrade a Single-Mode LC port on your Gigabit fiber networking equipment or fiber media converter.Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any networking device with an SFP Multi-Sourcing Agreement (MSA) compliant, or Cisco compliant mini GBIC port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
Producent
Productnummer
2372600
Model
SFPG1320C
EAN
0065030846677
Naar de website van de producent
Productbeschrijving
StarTech.com Cisco-compatibele gigabit glasvezel SFP-zendontvanger module SM LC met DDM - 20 km (mini-GBIC) - SFP (mini-GBIC) transceivermodule - 1GbE
Type apparaat
SFP (mini-GBIC) transceivermodule - LC enkele modus
Model
Insteekmodule
Bekabelingstype
1000Base-LH
Optische golflengte
1310 nm
Protocol voor gegevenskoppeling
1GbE
Max. overdrachtsafstand
20 km
Afmetingen (BxDxH)
0.9 cm x 6.5 cm x 1.4 cm
Gewicht
25 g
Ontworpen voor
P/N: ET91000LCOAM, ET91000SFP2, ET91000SFP2C, IES101002SFP, IES101G2SFPW, IES101GP2SFW, MCM1110SFP, PEX1000SFP2
Algemeen
Type apparaat
SFP (mini-GBIC) transceivermodule
Model
Insteekmodule
Netwerk
Connectiviteit
Met bekabeling
Bekabelingstype
1000Base-LH
Protocol voor gegevenskoppeling
1GbE
Optische golflengte
1310 nm
Max. overdrachtsafstand
20 km
Voorzieningen
Full-duplexcapaciteit, half duplex modus, Digital Diagnostics Monitoring Interface (DDMI)
Conformiteitsnormen
IEEE 802.3z
Uitbreiding / Aansluiting
Interfaces
1 x Ethernet 1000Base-LH - LC enkele modus
Uitwisselbare slots
1 x SFP (mini-GBIC)
Diversen
Conformiteitsnormen
FCC, RoHS, MSA
Afmetingen & gewicht
Breedte
0.9 cm
Diepte
6.5 cm
Hoogte
1.4 cm
Gewicht
25 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
70 °C
Informatie over Compatibiliteit
Ontworpen voor
P/N: ET91000LCOAM, ET91000SFP2, ET91000SFP2C, IES101002SFP, IES101G2SFPW, IES101GP2SFW, MCM1110SFP, PEX1000SFP2
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
