Productnummer: 3414189

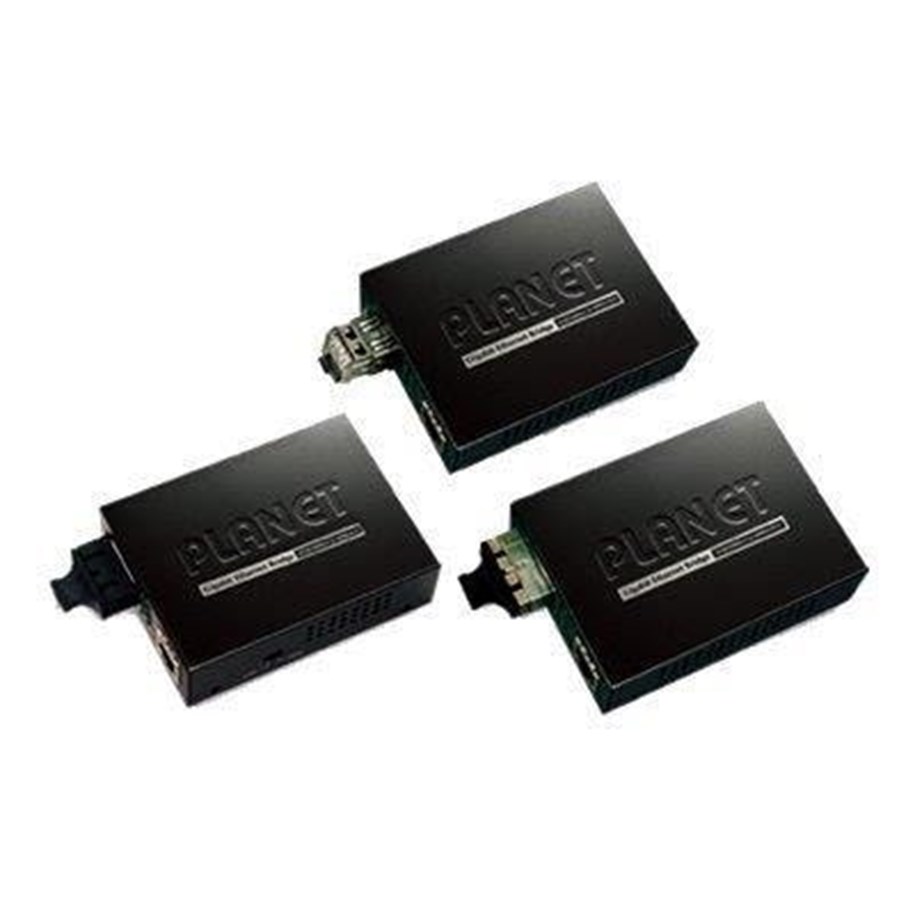

PLANET GT-802 - fibre media converter - 10Mb LAN 100Mb LAN 1GbE
Glasvezel mediaconverter, 1GbE, 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T, RJ-45 / SC multimodus, maximaal 550 m, 850 nm
79,13 €
65,40 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
Offering the flexibility with all kinds of Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the Planet Gigabit media converter GT-802 offers SC connector, with multi mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.
Designed in compact size, the GT-802 can be used as a standalone unit or being installed in the media converter chassis. The media chassis can feed GT-802 power to maintain the fiber-optic network at one location.
The installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-802 also supports flow control and back pressure in half duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
Designed in compact size, the GT-802 can be used as a standalone unit or being installed in the media converter chassis. The media chassis can feed GT-802 power to maintain the fiber-optic network at one location.
The installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-802 also supports flow control and back pressure in half duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
Producent
Productnummer
3414189
Model
GT-802
EAN
4711213686207
Naar de website van de producent
Productbeschrijving
PLANET GT-802 - glasvezel mediaconverter - 10Mb LAN, 100Mb LAN, 1GbE
Type apparaat
Glasvezel mediaconverter - RJ-45 / SC multimodus
Model
Extern
Bekabelingstype
10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
Gegevensoverdrachtsnelheid
1 Gbps
Optische golflengte
850 nm
Protocol voor gegevenskoppeling
10Mb LAN, 100Mb LAN, 1GbE
Max. overdrachtsafstand
550 m
Afmetingen (BxDxH)
9.7 cm x 6.9 cm x 2.6 cm
Algemeen
Type apparaat
Glasvezel mediaconverter
Model
Extern
Netwerk
Connectiviteit
Met bekabeling
Bekabelingstype
10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
Protocol voor gegevenskoppeling
10Mb LAN, 100Mb LAN, 1GbE
Gegevensoverdrachtsnelheid
1 Gbps
Optische golflengte
850 nm
Max. overdrachtsafstand
550 m
Statuslampjes
Voeding, link/activiteit
Voorzieningen
Automatische onderhandeling, auto-uplink (auto MDI/MDI-X), half duplex modus, volledige duplex modus
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah
Uitbreiding / Aansluiting
Interfaces
1 x Ethernet 1000Base-SX - SC multi-mode x 2
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Diversen
Conformiteitsnormen
FCC klasse A-gecertificeerd
Stroom
Energieverbruik tijdens gebruik
5.6 Watt
Afmetingen & gewicht
Breedte
9.7 cm
Diepte
6.9 cm
Hoogte
2.6 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
5 - 90%
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
