Productnummer: 2915649

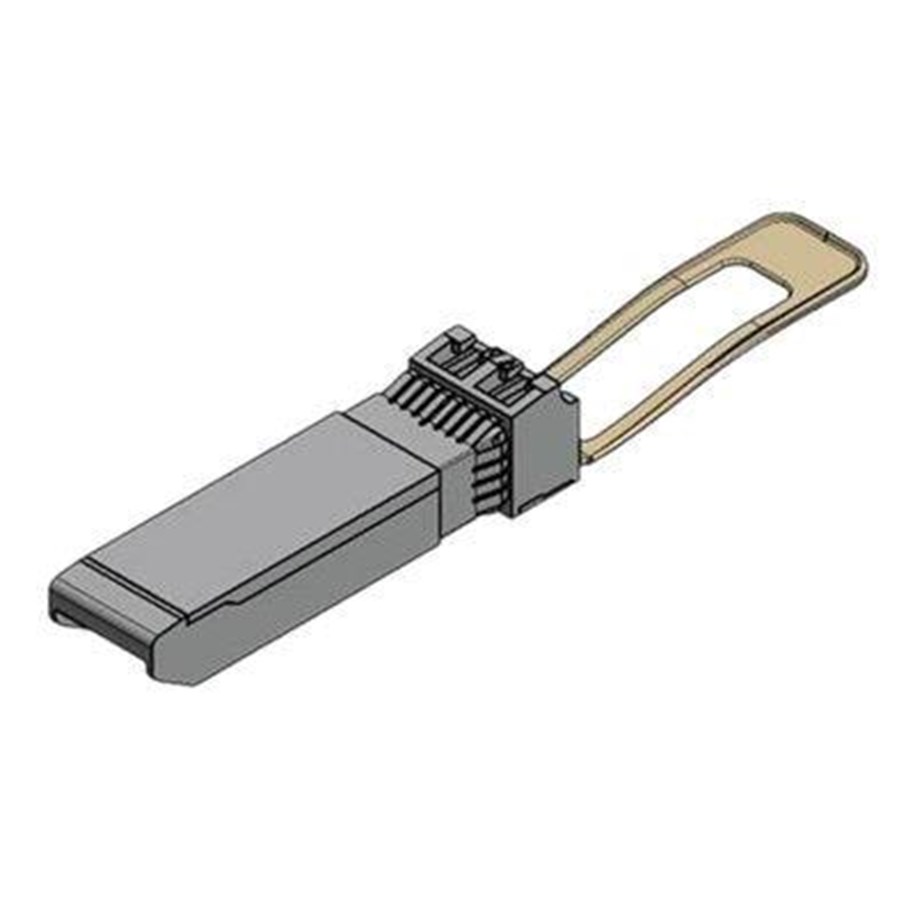

Mellanox Trans 25GbE SFP28 LC-LC 850nm SR up 100m
SFP28-transceivermodule, 25GbE, 25GBase-SR, 2 x LC multimodus, maximaal 100 m, 850 nm
134,58 €
111,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Mellanox MMA2P00-AS is a, pluggable SFP28 optical transceiver, designed for use in 25 Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over a pair of multi-mode (MMF) fibers, using a nominal wavelength of 850 nm, and is SFF-8402 compliant.The MMA2P00-AS has a standard SFP28 connector on the electrical side towards the host system supporting CAUI-1. The optical interface is composed of two optical channels/fibers, one in each direction, intended for a multi-mode optical cable connected via standard LC connectors. Each channel/ fiber operates at signaling rates up to 25.78125 GBd.
Producent
Productnummer
2915649
Model
MMA2P00-AS
EAN
7290108487022
Naar de website van de producent
Productbeschrijving
Mellanox MMA2P00-AS - SFP28-transceivermodule - 25GbE
Type apparaat
SFP28-transceivermodule - 2 x LC multimodus
Model
Insteekmodule
Bekabelingstype
25GBase-SR
Gegevensoverdrachtsnelheid
25 Gbps
Optische golflengte
850 nm
Protocol voor gegevenskoppeling
25GbE
Max. overdrachtsafstand
100 m
Afmetingen (BxDxH)
1.355 cm x 9.65 cm
Algemeen
Type apparaat
SFP28-transceivermodule
Model
Insteekmodule
Netwerk
Connectiviteit
Met bekabeling
Bekabelingstype
25GBase-SR
Protocol voor gegevenskoppeling
25GbE
Gegevensoverdrachtsnelheid
25 Gbps
Optische golflengte
850 nm
Max. overdrachtsafstand
100 m
Uitbreiding / Aansluiting
Interfaces
1 x Ethernet 25GBase-SR - LC multi-mode x 2
Diversen
Conformiteitsnormen
MSA SFF-8402, MSA SFF-8472, RoHS
Afmetingen & gewicht
Breedte
1.355 cm
Diepte
9.65 cm
Garantie van de fabrikant
Service & Support
Beperkte garantie - 1 jaar
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
