Productnummer: 3453532

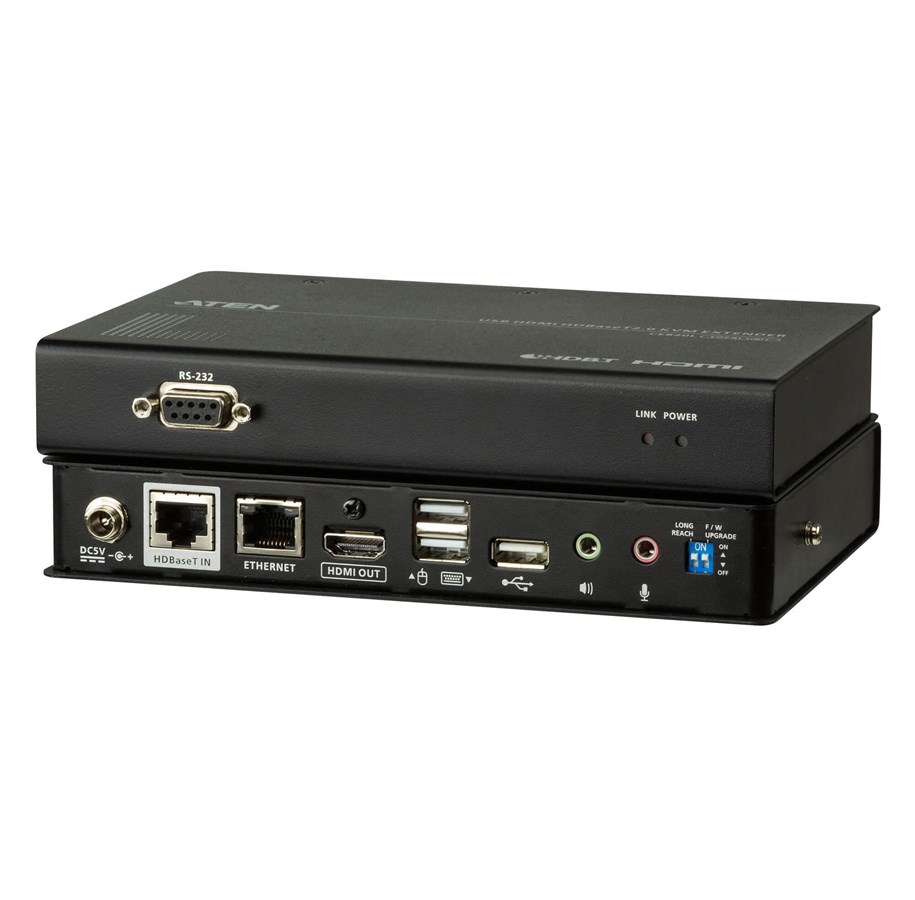

ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)

KVM / audio / serieel / USB uitbreider, HDBaseT 2.0, USB, maximaal 150 m

721,47 € 596,26 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd

The ATEN CE820-ATA KVM / audio / serial / USB extender is a comprehensive solution designed to meet the needs of demanding audiovisual and IT environments. This device supports high-resolution video up to 4096 x 2160 / 3840 x 2160 at 60 Hz, ensuring that high-quality content can be displayed without compromise. With a wide range of connectivity options, including HDMI, USB for keyboard and mouse, audio, and RS-232 interfaces, it offers flexibility for connecting various devices.In addition to its superior video capabilities, the CE820-ATA is built to protect your investment. It features advanced 15KV air-gap discharge and 8KV contact discharge ESD protectors, minimizing the risk of damage from electrical surges. The inclusion of HDBaseT Long Reach Mode allows for the extension of HDMI, USB, and control signals up to 150 m, making it perfect for large venues or situations where devices need to be remotely located. Encased in a durable metal housing, this extender is designed to withstand the rigors of daily use, ensuring a long service life and reliability.

Producent
Productnummer
3453532
Model
CE820-ATA-G
EAN
4710469341823
Naar de website van de producent
Productbeschrijving
ATEN CE820-ATA - KVM / audio / serieel / USB uitbreider - HDBaseT 2.0
Type apparaat
KVM / audio / serieel / USB uitbreider - USB
Model
Extern
Protocol voor gegevenskoppeling
HDBaseT 2.0
Max. overdrachtsafstand
150 m

Algemeen

Type apparaat
KVM / audio / serieel / USB uitbreider
Model
Extern

Netwerk

Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
HDBaseT 2.0
Toetsenbord / Muisinterface
USB
Max. resolutie
4096 x 2160 / 3840 x 2160 @ 60 Hz
Max. overdrachtsafstand
150 m
Statuslampjes
Voeding, video, koppeling
Voorzieningen
3D-ondersteuning, metalen behuizing, HDBaseT Long Reach Mode, 8 kV-ESD-bescherming (contactontlading), 15 kV-ESD-bescherming (luchtspleetontlading), EDID Buffer, ondersteuning voor diepe kleuren
Conformiteitsnormen
USB 2.0, HDCP 2.2

Uitbreiding / Aansluiting

Interfaces
1 x HDMI - 19 pin HDMI Type A
2 x USB-toetsenbord / USB-muis - Type A
1 x USB 2.0 - Type A
1 x audio - mini jack
1 x microfoon - mini jack
1 x RS-232 - DB-9

Diversen

Kabels meegeleverd
Toetsenbord / muis / video / audio / USB-kabelset - 1.8 m
Montagekit
Inclusief

Stroom

Voeding
Externe stroomadapter

Afmetingen & gewicht

Afmetingen (BxDxH) / gewicht
Lokale eenheid: 18.2 cm x 12.19 cm x 2.87 cm / 630 g
Afstandsbedieningseenheid: 18.2 cm x 12.19 cm x 2.87 cm / 650 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 80% RH (non-condensing)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
