Productnummer: 2852325

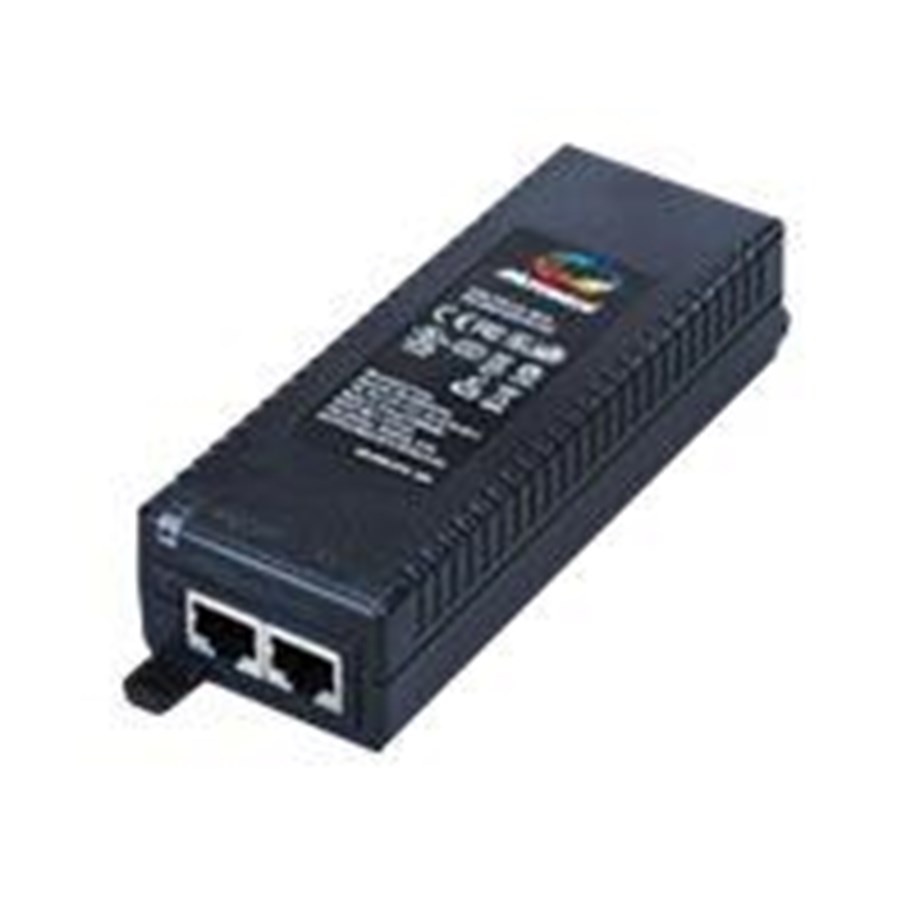

Microchip PoE Injector Single Midspan 1-port 30W
Stroomtoevoer, 100-240 Volt wisselstroom V, 30 watt, uitgangen: 1
67,34 €
55,65 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
Microchip's PD-9001GR is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the PD-9001GR enables remote power for a range of applications including 802.11ac Access Points, pan-tiltzoom (PTZ) cameras and video-phones. It complies with the IEEE 802.3at PoE+ standard and is backward compatible with IEEE802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11ac access points.
Producent
Productnummer
2852325
Model
PD-9001GR/AT/AC
EAN
5711783792239
Naar de website van de producent
Productbeschrijving
Microchip PD-9001GR/AT - stroomtoevoer - 30 watt
Type apparaat
Stroomtoevoer - extern
Gewicht
200 g
Input Voltage
100-240 Volt wisselstroom V
Output Voltage
55 V
Stroomcapaciteit
30 watt
Uitgangsaansluitingen
1 x RJ-45
Afmetingen (BxDxH)
5.18 cm x 14 cm x 3.1 cm
Algemeen
Type apparaat
Stroomtoevoer - extern
Voeding
Input Voltage
100-240 Volt wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x RJ-45
Output Voltage
55 V
Stroomcapaciteit
30 watt
Uitbreiding / Aansluiting
Interfaces
1 x Gigabit LAN - RJ-45
Diversen
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Functies
LED-indicators
Conformiteitsnormen
VCCI, EN55024, EN55022 Class B, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 Class B
Garantie van de fabrikant
Service & Support
Beperkte garantie - 1 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% (niet condenserend)
Afmetingen & gewicht
Breedte
5.18 cm
Diepte
14 cm
Hoogte
3.1 cm
Gewicht
200 g
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
