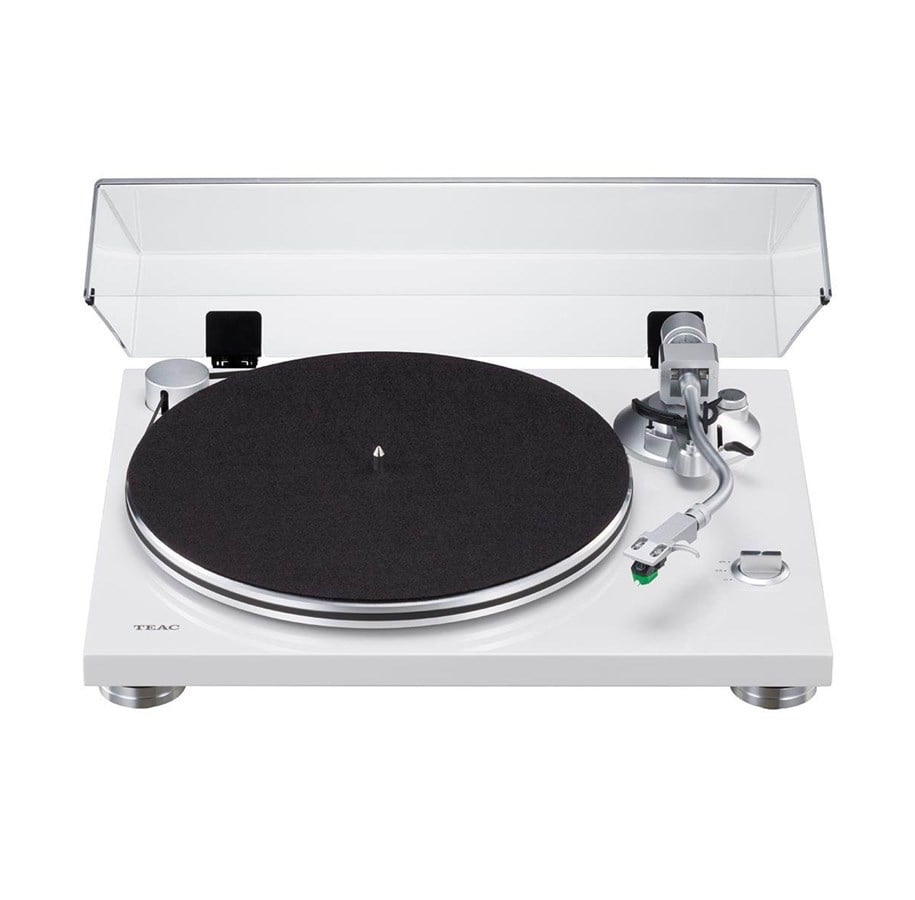

TEAC TN-3B-SE - Platenspeler Wit

Knife-edge, pivot-point tone-arm bearings
In collaboration with the SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-3B-SE's tonearm employs a knife-edge, pivot-point bearing. Unlike with conventional bearings, subtle movements with this tonearm will actually help deliver a more dynamic sound with excellent resolution. The S-shaped tonearm also employs a universal headshell fitting, allowing users to quickly and easily swap cartridges (from 14 - 23g / 0.5 - 0.8 oz.) / headshells.

Precision anti-skating and stylus-pressure adjustment
The static-balanced, S-shape tonearm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play vinyl discs.

Pre-installed VM-series cartridge
An audio-technica AT-VM95E cartridge with an elliptically shaped stylus tip comes pre-installed on the headshell for convenience. After you’ve opened the box, set up the platter, mount the headshell on the tonearm and start enjoying your records.

Built-in MM-type phono EQ amplifier
The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080 is employed to boost the low-level signals from the phono cartridge to LINE level.

External belt-drive with aluminium die-cast platter
A belt-drive arrangement is employed to minimise motor cogging effects by driving the outer rim of the platter (which has a larger diameter, mass and surface area).

Luxurious, multi-layer lacquer paint finish
All internal components are mounted on a robust and high-density MDF plinth for rigidity and deadening of vibration. Thanks to the sleek and stylish design, the TN-3B-SE looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.

33-1/3 and 45 rpm 2-speed turntable
The TN-3B-SE supports both 33-1/3 and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.

Insulating feet with excellent shock absorption
The insulating feet comprise a machined aluminium shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B-SE is very resistant to acoustic feedback.

Honeycomb-patterned bottom panel
In order to achieve sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimises unwanted vibrations.

• Belt-drive mechanism.
• 2-speed turntable supporting 33-⅓ and 45 rpm.
• Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC.
• Aluminum die-cast platter.
• Built-in PHONO EQ amplifier compatible with MM-type cartridges.
• Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage.
• Anti-skating mechanism.
• PHONO/LINE analog output (switchable).
• Gold-plated oxidation-resistant output connectors.
• Pre-installed AT-VM95E cartridge supplied by audio-technica.
• Rigid, high-density MDF plinth with multi-layered lacquer finish.
• Shock-absorbing insulating feet.
• GND terminal.
• RoHS compliant.
• Included Accessories:
• Felt Mat.
• EP Adapter.
• Counter Weight, Head-shell (AT-VM95E installed).
• Platter.
• Dust Cover.
• Hinges × 2.
• RCA Audio cable with GND terminal.
• AC Adapter (GPE053A-V120050).
• Owner's Manual (including Warranty Card).
