Productnummer: 2892756

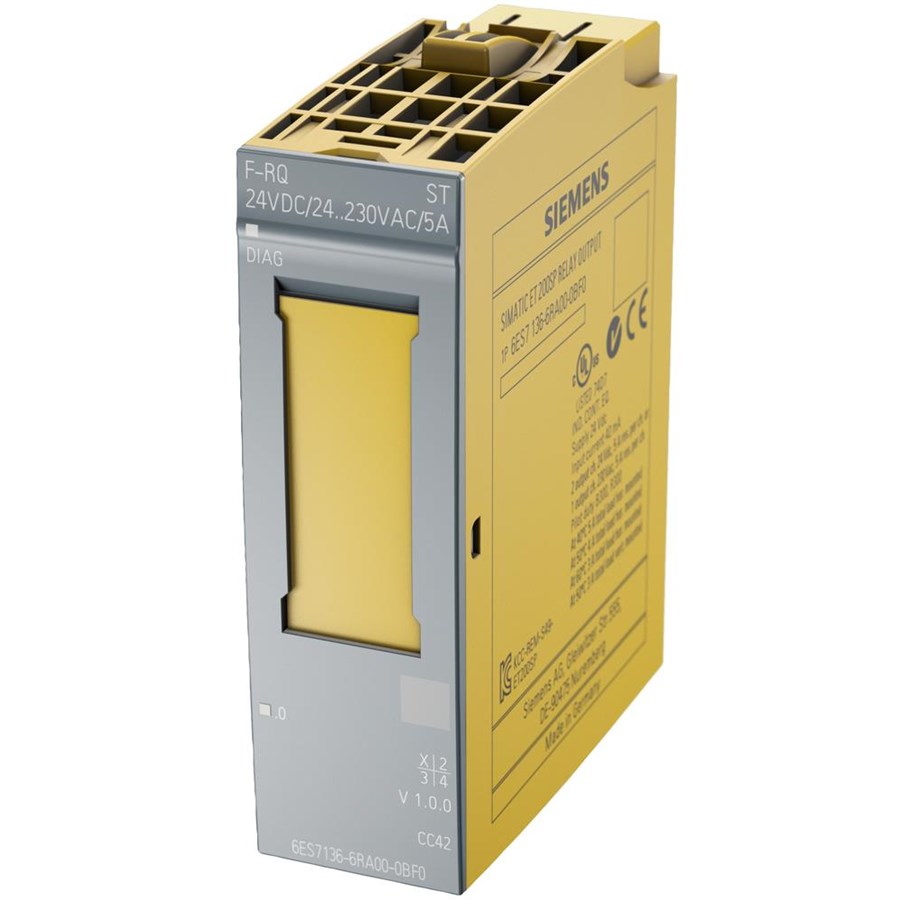

Siemens Et 200sp f-rq 1x24vdc/24..230vac/5a st 6es7136-6ra00-0bf0
Simatic dp, electron. module for et200sp, f-rq 1x24vdc/24..230vac/5a st, 20mm width, 1 relay output (2 no-contacts) total output current 5a, rated voltage dc 24v and ac 24 .. 230v, useable up to pl e (iso13849-1: 2008)/ sil 3 (iec61508: 2010) if controlled by a f-dq (e.g. 6es7136-6db00-0ca0)
125,76 €
103,93 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Electronic module ET 200SP, F-RQ 1X24VDC/24..230VAC/5A ST Product description: SIMATIC DP, electronic module for ET200SP, F-RQ 1X24VDC/24..230VAC/5A ST, width of 20MM, with one relay output (2 NO contacts) and a total output current of 5A. Nominal voltage is DC 24V and AC 24 ..230V. Suitable up to PL E (ISO13849-1:2008)/ SIL3 (IEC61508:2010) if controlled by an F-DQ (e.g.6ES7136-6DB00-0CA0). Technical specifications: Width:20.0 Height:73.0 Depth:58.0 Suitable for safety functions:YES
Producent
Productnummer
2892756
Model
6ES7136-6RA00-0BF0
EAN
4047623402596
