Productnummer: 3497765

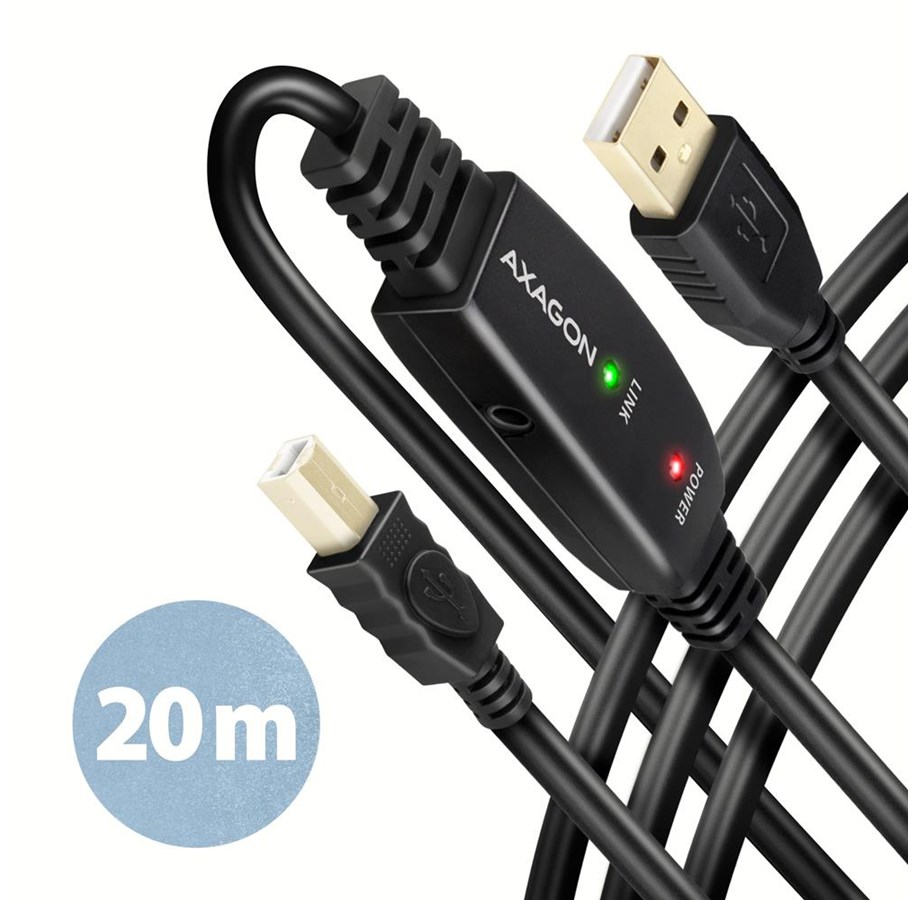

AXAGON ADR-220B USB 2.0 A-M -> B-M actieve verbindings-/repeaterkabel 20m - Kabel - Digitaal/Data USB-kabel
Actieve USB 2.0-repeaterkabel AXAGON ADR-220B verbindt een computer met USB-A met een USB-B-apparaat, versterkt het signaal en ondersteunt dataoverdracht op high speed, full speed en low speed.
Ontworpen voor printers, scanners, plotters en andere USB-B-apparaten; deze actieve verbindingskabel gebruikt een afgeschermde kabel en een compacte actieve behuizing voor installatie in kabelsystemen of elektrische installatiestrips.
- USB Type A mannelijke ingang voor computerverbinding
- USB Type B mannelijke uitgang voor verbinding met een extern USB-apparaat
- Transmissiesnelheden van 480, 12 en 1.5 Mbit/s
- USB-busvoeding met optionele extra voedingsingang
- Plug and Play- en Hot Plug-ondersteuning
- LED-indicatoren voor voeding en USB-apparaatverbinding
Met meegeleverde voedingskabel en brede ondersteuning voor besturingssystemen biedt het een praktische manier om USB-B-apparatuur op grotere afstand aan te sluiten.
29,11 €
24,06 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
With the active USB 2.0 connecting cable AXAGON ADR-220B, 20 meters long, you will be able to connect, for example, a printer, scanner, plotter or other USB-B device to your computer. The active USB repeater cable strengthens the passing signal and allows you to connect a significantly more distant USB device than the passive cables. The range of the cable can be further extended, for example, by using AXAGON ADR-210 USB extension cable
A great advantage of the ADR-220B extension is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem.
The remarkably compact body of the repeater cable allows trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference.
Input:
• USB 2.0 for connection to a computer
• USB Type A (M) male connector
Output:
• USB 2.0 for connecting a remote USB device
• USB Type B (M) male connector
• transmission rate 480 / 12 / 1.5 Mbit/s (high / full / low speed)
Power supply:
• Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).
• For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.
• The active part of the cable includes a connector (Ø 3.5 x 1.3 mm outer x internal diameter) for additional external power supply of 5V/ 1-2 A.
• The power cable USB A-M / 3.5 mm jack, 1.2 m long is included. The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16.
Other features:
• Fully compatible with USB 2.0 and backward compatible with USB 1.1.
• Full Plug and Play and Hot Plug support.
• Two LEDs indicating power and USB device connection.
• Behind the active USB cable, a common passive USB cable can also be used.
• Dimensions of active part with are 95 x 22 x 13 mm, cable length 20 m.
• Weight 674 g.
Supported OS:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher.
• Note: Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available.
Package contains:
• USB 2.0 A-M > B-M active repeater 20 m long,
• USB-A / 3.5 mm power cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box.
A great advantage of the ADR-220B extension is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem.
The remarkably compact body of the repeater cable allows trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference.
Input:
• USB 2.0 for connection to a computer
• USB Type A (M) male connector
Output:
• USB 2.0 for connecting a remote USB device
• USB Type B (M) male connector
• transmission rate 480 / 12 / 1.5 Mbit/s (high / full / low speed)
Power supply:
• Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).
• For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.
• The active part of the cable includes a connector (Ø 3.5 x 1.3 mm outer x internal diameter) for additional external power supply of 5V/ 1-2 A.
• The power cable USB A-M / 3.5 mm jack, 1.2 m long is included. The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16.
Other features:
• Fully compatible with USB 2.0 and backward compatible with USB 1.1.
• Full Plug and Play and Hot Plug support.
• Two LEDs indicating power and USB device connection.
• Behind the active USB cable, a common passive USB cable can also be used.
• Dimensions of active part with are 95 x 22 x 13 mm, cable length 20 m.
• Weight 674 g.
Supported OS:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher.
• Note: Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available.
Package contains:
• USB 2.0 A-M > B-M active repeater 20 m long,
• USB-A / 3.5 mm power cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box.
Producent
Productnummer
3497765
Model
ADR-220B
EAN
8595247907233
Naar de website van de producent
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
