Productnummer: 2881208

LevelOne GEMINI series

Netwerkbewakingscamera, openlucht, binnen, vandaal-/weerbestendig, kleur (Dag en nacht), 6 MP, 3072 x 2048, 720p, 1080p, gemotoriseerd, audio, LAN 10/100, MJPEG, H.264, H.265, 12 V gelijkspanning / PoE-klasse 4

480,55 € 397,15 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The LevelOne GEMINI series FCS-5212 is engineered for both indoor and outdoor environments, equipped to withstand extreme temperatures ranging from -30°C to 60°C and offers a humidity tolerance of 0 to 95% (non-condensing). This network surveillance camera features a powerful optical sensor with a resolution of up to 3072 x 2048 pixels, ensuring sharp and clear images in various lighting conditions, including a minimum illumination of just 0.01 lux. With advanced features like automatic focus adjustment, motorized zoom, and infrared night vision reaching up to 50 meters, it provides comprehensive surveillance capabilities around the clock. Enhanced by its IP67 and IK10 ratings, the FCS-5212 is designed to be both vandal-proof and weatherproof, making it a reliable choice for any security setup. Equipped with multiple networking protocols, including IPv4 and IPv6 support, the FCS-5212 offers seamless connectivity while supporting various video formats such as MJPEG, H.264, and H.265. Its built-in features like backlight compensation, digital image rotation, and smart detection make it suitable for various monitoring applications. Supporting smartphone monitoring, this model includes features like intrusion detection and privacy masking to ensure a secure and private user experience. Whether integrated into a new system or upgrading an existing setup, the LevelOne GEMINI series FCS-5212 is tailored for high security and performance.

Producent
Productnummer
2881208
Model
FCS-5212
EAN
4015867207772
Naar de website van de producent
Productbeschrijving

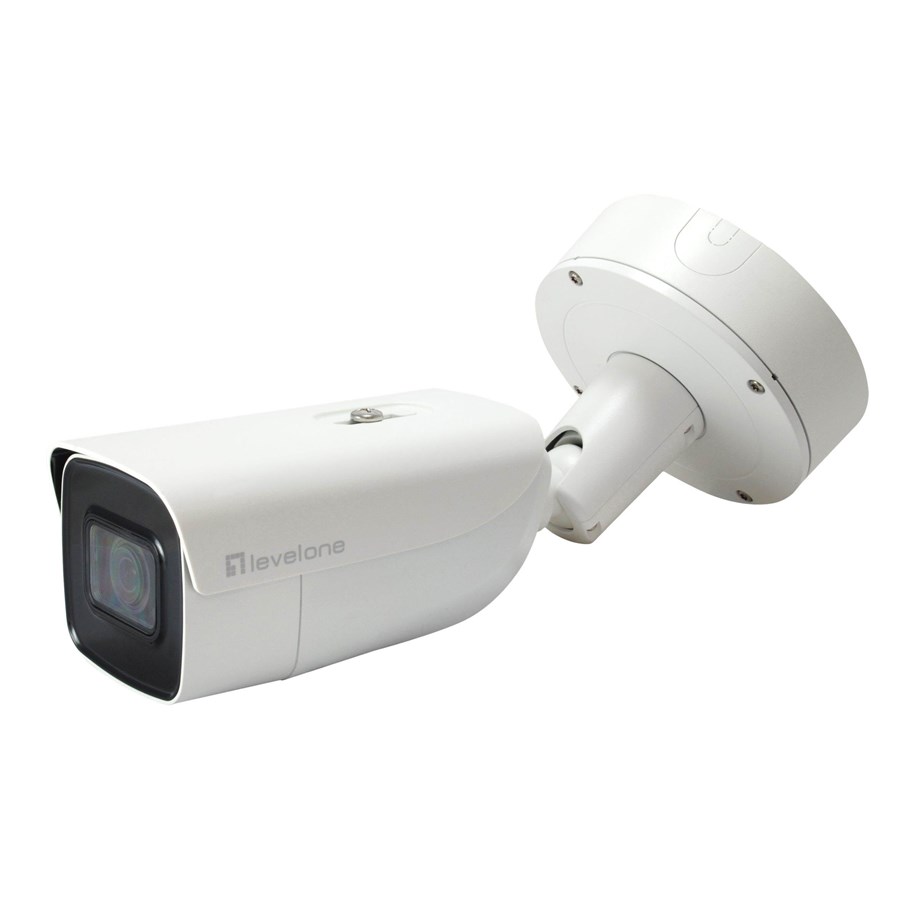

LevelOne GEMINI series FCS-5212 - netwerkbewakingscamera
Type apparaat
Netwerkbewakingscamera - vast - openlucht, binnen - vandaal-/weerbestendig
Audio
Ja
Afmetingen (BxDxH)
14.41 cm x 33.27 cm x 14.41 cm
Gewicht
1.893 kg
Kleur
Wit
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Optisch in-/uitzoomen
4.3 x
Max. resolutie
3072 x 2048
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Modi Video
720p, 1080p
Type optische sensor
PS CMOS - 1/2.9" - 6 MP
Minimale verlichting
0.01 lux - kleur - F1.2 - AGC on
0.018 lux - kleur - F1.6 - AGC on
0 lux - IR
Brandpuntsafstandregeling
Gemotoriseerde zoom
Brandpuntlengte
2.8 mm - 12 mm
Focusinstelling
Automatisch
Iris lens
F/1.6
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
12 V gelijkspanning / PoE-klasse 4
Voorzieningen
Achtergrondlichtcompensatie (BLC), scherpteregeling, digitale beeldrotatie, progressief scannen, regeling van verzadiging, helderheidsregeling, contrastregeling, spiegelen van het beeld, Wide Dynamic Range (WDR), gezichtsdetectie, infrarood cut-filter, privacybeschermingsfunctie, resetknop, wachtwoordbeveiliging, smartphonebewaking, drievoudige videostream, indringingsdetectie, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, detectie verwijderde objecten, detectie voor lijnoverschrijding, watermerk, hartslag, anti-flikkering, Internet Server Application Programming Interface (ISAPI), IP-adres filteren, 3D digitale ruisonderdrukking (DNR)
Omgevingsparameters (besturing)
-30 °C - 60 °C; 0 - 95% (niet condenserend) relatieve vochtigheidsgraad

Algemeen

Type apparaat
Netwerkbewakingscamera
Audio-ondersteuning
Ja
Audio-indelingen
PCM, G.726, G.711, G.722.1, MP2L2
Verbindingstechnologie
Bedraad
Breedte
14.41 cm
Diepte
33.27 cm
Hoogte
14.41 cm
Gewicht
1.893 kg

Camera

Type
Kleur - Dag en nacht - vast - openlucht, binnen - vandaal-/weerbestendig
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
3072 x 2048
Bewegingsdetectie
Ja
Modi Video
720p, 1080p
Digitaal in-/uitzoomen
8
Belichtingsbereik
1/3 sec. - 1/100000 sec.
Minimale verlichting
0.01 lux - kleur - F1.2 - AGC on
0.018 lux - kleur - F1.6 - AGC on
0 lux - IR
Infrarood LED's
Ja
Infrarood afstand
50 m
Video Capture
3072 x 2048 @ 20 fps
3072 x 1728 @ 20 fps
2944 x 1656 @ 20 fps
2560 x 1440 @ 30 fps
1920 x 1080 @ 30 fps
1280 x 720 @ 30 fps
Voorzieningen
Achtergrondlichtcompensatie (BLC), scherpteregeling, digitale beeldrotatie, progressief scannen, regeling van verzadiging, helderheidsregeling, contrastregeling, spiegelen van het beeld, Wide Dynamic Range (WDR), gezichtsdetectie, infrarood cut-filter, privacybeschermingsfunctie, resetknop, wachtwoordbeveiliging, smartphonebewaking, drievoudige videostream, indringingsdetectie, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, detectie verwijderde objecten, detectie voor lijnoverschrijding, watermerk, hartslag, anti-flikkering, Internet Server Application Programming Interface (ISAPI), IP-adres filteren, 3D digitale ruisonderdrukking (DNR)

Beeldsensor

Type
6 MP PS CMOS 1/2.9"

Lensconstructie

Type
Gemotoriseerde zoom
Optisch in-/uitzoomen
4.3 x
Brandpuntlengte
2.8 mm - 12 mm
Iris lens
F/1.6
Focusinstelling
Automatisch
Horizontaal gezichtsveld (graden)
27 - 88
Verticaal gezichtsveld (graden)
18 - 56
Diagonaal gezichtsveld (graden)
33 - 110

Interfaces

Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, PPPoE, IGMP, Samba
Aantal alarmingangen
1
Aantal alarmuitgangen
1

Uitbreiding / Aansluiting

Poorten
LAN/voeding - RJ-45
Audio line out
Audio line in
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart

Diversen

Meegeleverde accessoires
Schroevenset
Conformiteitsnormen
FCC, IP67, IK10, IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.1x
Kleur
Wit

Stroom

Vereisten voeding
12 V gelijkspanning / PoE-klasse 4
Voeding
18 Watt

Software / Systeemvereisten

Software meegeleverd
Stuurprogramma's & hulpprogramma's

Omgevingsparameters

Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
60 °C
Relatieve vochtigheidsgraad (besturing)
0 - 95% (niet condenserend)
