Productnummer: 3458177

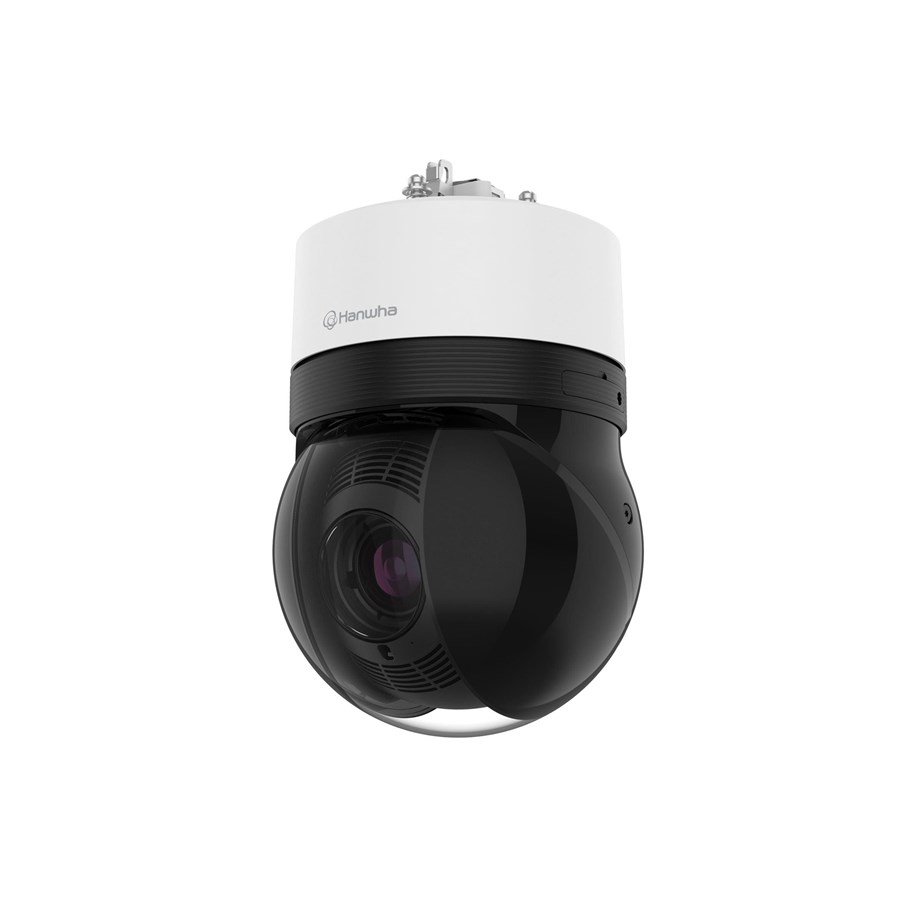

Hanwha Vision XNP-C7310R - network surveillance camera - dome
Netwerkbewakingscamera, PTZ, koepel, kleur (Dag en nacht), 4 MP, 2592 x 1520, automatische iris, gemotoriseerd, LAN 10/100, MJPEG, H.264, H.265, PoE ++
Het product is niet meer leverbaar
The Hanwha Vision XNP-C7310R network surveillance camera is engineered for exceptional performance in the most challenging environmental conditions. With an operating temperature range from -50°C to 55°C and humidity tolerance from 0 to 100% (condensing), it ensures continuous operation regardless of weather extremes. The camera boasts a high-definition 1/1.8" CMOS sensor with a total of 4 million pixels, delivering crisp and clear images. Its motorized zoom lens offers a wide range of focal lengths from 6.91 mm to 214.7 mm, accommodating various surveillance needs with precision and flexibility.Equipped with infrared LEDs, the XNP-C7310R extends night vision capabilities up to 300 m, ensuring reliable surveillance in complete darkness. The camera's suite of features, including Wide Dynamic Range (WDR), Samsung Super Noise Reduction (SSNR) V, and a variety of detection and analytics functions, such as motion, face, and intrusion detection, provides comprehensive security monitoring. Designed to meet the needs of high-security environments, the XNP-C7310R is a robust solution for critical surveillance applications.
Producent
Productnummer
3458177
Model
XNP-C7310R
EAN
8801089223159
Productbeschrijving
Hanwha Vision XNP-C7310R - netwerkbewakingscamera - koepel
Type apparaat
Netwerkbewakingscamera - pan / tilt / zoom - koepel
Afmetingen (BxDxH)
18.8 cm x 18.8 cm x 26.49 cm
Gewicht
4.4 kg
Kleur
Wit, RAL 9003
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Optisch in-/uitzoomen
31 x
Max. resolutie
2592 x 1520
Framesnelheid (max)
60 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/1.8" - 4 MP
Minimale verlichting
0.04 lux - kleur - F1.36 - 30 IRE - sluiter 1/30 sec
0.004 lux - Z/W - F1.36 - infrarode LED's uit
0 lux - Z/W - infrarode LED's aan
0.004 lux - Z/W - F1.36 - infrarode LED's uit
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Gemotoriseerde zoom
Brandpuntlengte
6.91 mm - 214.7 mm
Focusinstelling
Contrast bij één opname, automatisch (min. afstand 3 m)
Iris lens
F/1.36-4.6 - automatische iris (P-Iris)
Panbereik (graden)
360
Tiltbereik (graden)
-20 tot +90
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
PoE ++
Voorzieningen
Auto ICR, richting detectie, achtergrondlichtcompensatie (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), ingebouwde gyroscoop, Defog, bewegingsdetectie, privacybeschermingsfunctie, gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), omdraaien van het beeld, spiegelen van het beeld, Person Detection, gezichtsdetectie, Vehicle Detection, voertuigtypeclassificatie, kentekenplaatdetectie, Virtual Line detection, rondhangdetectie, indringingsdetectie, detectie in-uitgang, manipulatiedetectie, mistdetectie, schokdetectie, verschijnen / verdwijnen detectie, sound classification, network disconnection trigger, Handover, melding afbeelding naar FTP, melding afbeelding naar E-mail, vergrendeling gevolgd doel, automatisch tracken, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), ONVIF (profiel G)-steun, ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, ondersteunt ONVIF (Profile M), bescherming door uitstelling brute kracht, samengevatte verificatie, veilig opstarten, gesigneerde firmware, spin dry, ondersteuning voor WiseStream II, WiseStream III support, 802.1x-authenticatie
Omgevingsparameters (besturing)
-50 °C - 55 °C; 0 - 100% (condensing) relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Formaat
Koepel
Verbindingstechnologie
Bedraad
Breedte
18.8 cm
Diepte
18.8 cm
Hoogte
26.49 cm
Gewicht
4.4 kg
Camera
Type
Kleur - Dag en nacht - pan / tilt / zoom
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
2592 x 1520
Bewegingsdetectie
Ja
Digitaal in-/uitzoomen
32
Belichtingsbereik
2 sec. - 1/12000 sec.
Minimale verlichting
0.04 lux - kleur - F1.36 - 30 IRE - sluiter 1/30 sec
0.004 lux - Z/W - F1.36 - infrarode LED's uit
0 lux - Z/W - infrarode LED's aan
0.004 lux - Z/W - F1.36 - infrarode LED's uit
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
300 m
Resolutie digitale video-opname
2592 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Framesnelheid (max)
60 frames per seconde
RAM
4 GB
Flashgeheugen
512 MB
Voorzieningen
Auto ICR, richting detectie, achtergrondlichtcompensatie (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), ingebouwde gyroscoop, Defog, bewegingsdetectie, privacybeschermingsfunctie, gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), omdraaien van het beeld, spiegelen van het beeld, Person Detection, gezichtsdetectie, Vehicle Detection, voertuigtypeclassificatie, kentekenplaatdetectie, Virtual Line detection, rondhangdetectie, indringingsdetectie, detectie in-uitgang, manipulatiedetectie, mistdetectie, schokdetectie, verschijnen / verdwijnen detectie, sound classification, network disconnection trigger, Handover, melding afbeelding naar FTP, melding afbeelding naar E-mail, vergrendeling gevolgd doel, automatisch tracken, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), ONVIF (profiel G)-steun, ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, ondersteunt ONVIF (Profile M), bescherming door uitstelling brute kracht, samengevatte verificatie, veilig opstarten, gesigneerde firmware, spin dry, ondersteuning voor WiseStream II, WiseStream III support, 802.1x-authenticatie
Beeldsensor
Type
4 MP CMOS 1/1.8"
Lensconstructie
Type
Gemotoriseerde zoom
Optisch in-/uitzoomen
31 x
Brandpuntlengte
6.91 mm - 214.7 mm
Iris lens
F/1.36-4.6 automatische iris (P-Iris)
Focusinstelling
Contrast bij één opname, automatisch
Min focusafstand
3 m
Horizontaal gezichtsveld (graden)
2.54 - 59.4
Verticaal gezichtsveld (graden)
1.49 - 35.8
Diagonaal gezichtsveld (graden)
2.95 - 68.2
Pannen
Bereik (graden)
360
Snelheid (graden/sec)
Tot 550
Kanteling
Bereik (graden)
-20 tot +90
Snelheid (graden/sec)
Tot 550
Interfaces
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT
Uitbreiding / Aansluiting
Poorten
LAN/voeding - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Encryptie-algoritme
FIPS 140-2 Level 2
Diversen
Conformiteitsnormen
IP66, IP67, IK10, NEMA Type 4X, IEEE 802.1x, IEEE 802.3bt, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, CISPR-32 Class A, RCM, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NDAA
Kleur
Wit, RAL 9003
Stroom
Vereisten voeding
PoE ++
Voeding
23 watt
Omgevingsparameters
Min. gebruikstemperatuur
-50 °C
Max. gebruikstemperatuur
55 °C
Relatieve vochtigheidsgraad (besturing)
0 - 100% (condensing)
