Productnummer: 3458142

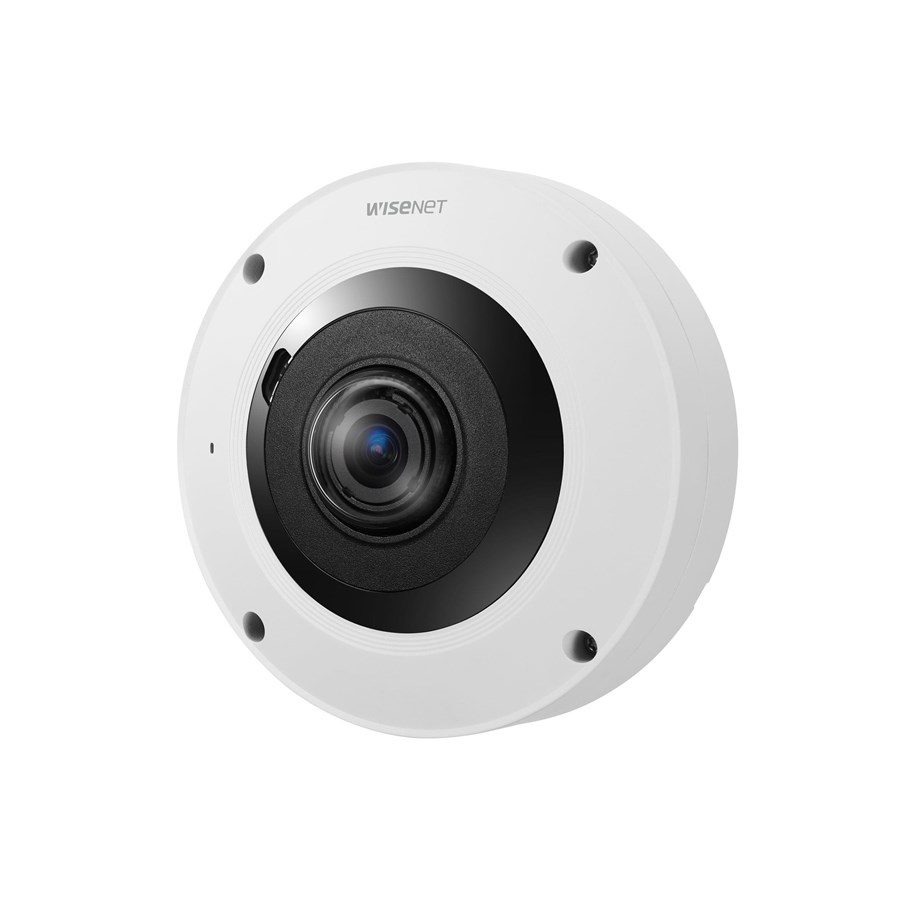

Hanwha Vision WiseNet X XNF-9013RV - network surveillance camera - fisheye
Netwerkbewakingscamera, visoog, openlucht, kleur (Dag en nacht), 12 MP, 3008 x 3008, vastgesteld brandpunt, audio, composiet, LAN 10/100, MJPEG, H.264, H.265, 12 V gelijkspanning / PoE-klasse 3
1.616,23 €
1.335,73 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
The Hanwha Vision WiseNet X XNF-9013RV network surveillance camera is engineered for durability and performance, offering a robust solution for outdoor monitoring. With its ability to operate in a wide range of temperatures and humidity levels, this camera is ideal for deployment in any environmental condition. The device's 187-degree wide-angle lens ensures expansive coverage with minimal blind spots, making it perfect for comprehensive area surveillance.Equipped with a 12 MP CMOS sensor and infrared LEDs, the XNF-9013RV delivers clear, high-resolution images around the clock, ensuring no detail goes unnoticed. The camera's advanced video analytics, including motion detection, intrusion detection, and people counting, provide users with valuable insights for security and operational efficiency. With support for various storage options and compliance with multiple standards, this camera is a versatile and reliable choice for securing premises.
Producent
Productnummer
3458142
Model
XNF-9013RV
EAN
8801089211095
Productbeschrijving
Hanwha Vision WiseNet X XNF-9013RV - netwerkbewakingscamera - visoog
Type apparaat
Netwerkbewakingscamera - vast - visoog - openlucht
Audio
Ja
Afmetingen (BxDxH)
16 cm x 16 cm x 7.2 cm
Gewicht
1.17 kg
Kleur
Wit, RAL 9003
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Max. resolutie
3008 x 3008
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/2.3" - 12 MP
Minimale verlichting
0.39 lux - kleur - F2.2 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
1.08 mm
Focusinstelling
(min. afstand 50 cm)
Iris lens
F/2.2
Interfaces
Composietvideo, Ethernet 10Base-T/100Base-TX
Voltage
12 V gelijkspanning / PoE-klasse 3
Voorzieningen
Achtergrondlichtcompensatie (BLC), omdraaien van het beeld, spiegelen van het beeld, Wide Dynamic Range (WDR), privacybeschermingsfunctie, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Cameramanipulatiedetectie, geluidsdetectie, Multicast Streaming, automatische versterkingsregeling, automatische witbalans, Defocus Detection, Extreme WDR, auto ICR, WiseNR II, Samsung Super Noise Reduction (SSNRV), bewegingsdetectie, gain control, witbalans, anti-flikkering, Objectdetectie, Virtual Line detection, detectie in-uitgang, verschijnen / verdwijnen detectie, indringingsdetectie, mistdetectie, sound classification, mensen tellen, wachtrijbeheer, Heat Map, melding afbeelding naar E-mail, melding afbeelding naar FTP, Handover, WiseIR, ondersteuning voor WiseStream II, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), IP-adres filteren, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, ondersteunt ONVIF (Profile M), harde koepel, TPM 2.0-module
Omgevingsparameters (besturing)
-40 °C - 60 °C; 0 - 95% RH relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Audio-ondersteuning
Ja
Audio-indelingen
G.726, ADPCM, AAC-LC, G.711, U-LAW
Formaat
Visoog
Verbindingstechnologie
Bedraad
Breedte
16 cm
Diepte
16 cm
Hoogte
7.2 cm
Gewicht
1.17 kg
Camera
Type
Kleur - Dag en nacht - vast - openlucht
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
3008 x 3008
Bewegingsdetectie
Ja
Belichtingsbereik
1/5 sec. - 1/12000 sec.
Minimale verlichting
0.39 lux - kleur - F2.2 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
13 m
Video Capture
3008 x 3008 @ 30 fps
RAM
4 GB
Flashgeheugen
512 MB
Voorzieningen
Achtergrondlichtcompensatie (BLC), omdraaien van het beeld, spiegelen van het beeld, Wide Dynamic Range (WDR), privacybeschermingsfunctie, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Cameramanipulatiedetectie, geluidsdetectie, Multicast Streaming, automatische versterkingsregeling, automatische witbalans, Defocus Detection, Extreme WDR, auto ICR, WiseNR II, Samsung Super Noise Reduction (SSNRV), bewegingsdetectie, gain control, witbalans, anti-flikkering, Objectdetectie, Virtual Line detection, detectie in-uitgang, verschijnen / verdwijnen detectie, indringingsdetectie, mistdetectie, sound classification, mensen tellen, wachtrijbeheer, Heat Map, melding afbeelding naar E-mail, melding afbeelding naar FTP, Handover, WiseIR, ondersteuning voor WiseStream II, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), IP-adres filteren, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, ondersteunt ONVIF (Profile M), harde koepel, TPM 2.0-module
Beeldsensor
Type
12 MP CMOS 1/2.3"
Lensconstructie
Type
Vastgesteld brandpunt
Brandpuntlengte
1.08 mm
Iris lens
F/2.2
Min focusafstand
50 cm
Horizontaal gezichtsveld (graden)
187
Verticaal gezichtsveld (graden)
187
Diagonaal gezichtsveld (graden)
187
Interfaces
Video
Composietvideo
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP
Uitbreiding / Aansluiting
Poorten
Composietvideo - BNC
USB - Micro-USB Type B
Audio line-in/microfoon
Audio line out
LAN/voeding - RJ-45
USB - Micro-USB Type B
Audio line-in/microfoon
Audio line out
LAN/voeding - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Diversen
Conformiteitsnormen
FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835, UL 62368-1, IEC/EN 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA250 Type 4X, IEEE 802.3af, IEEE 802.1x, NDAA, FIPS 140-2
Kleur
Wit, RAL 9003
Stroom
Vereisten voeding
12 V gelijkspanning / PoE-klasse 3
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
60 °C
Relatieve vochtigheidsgraad (besturing)
0 - 95% RH
