Productnummer: 3458088

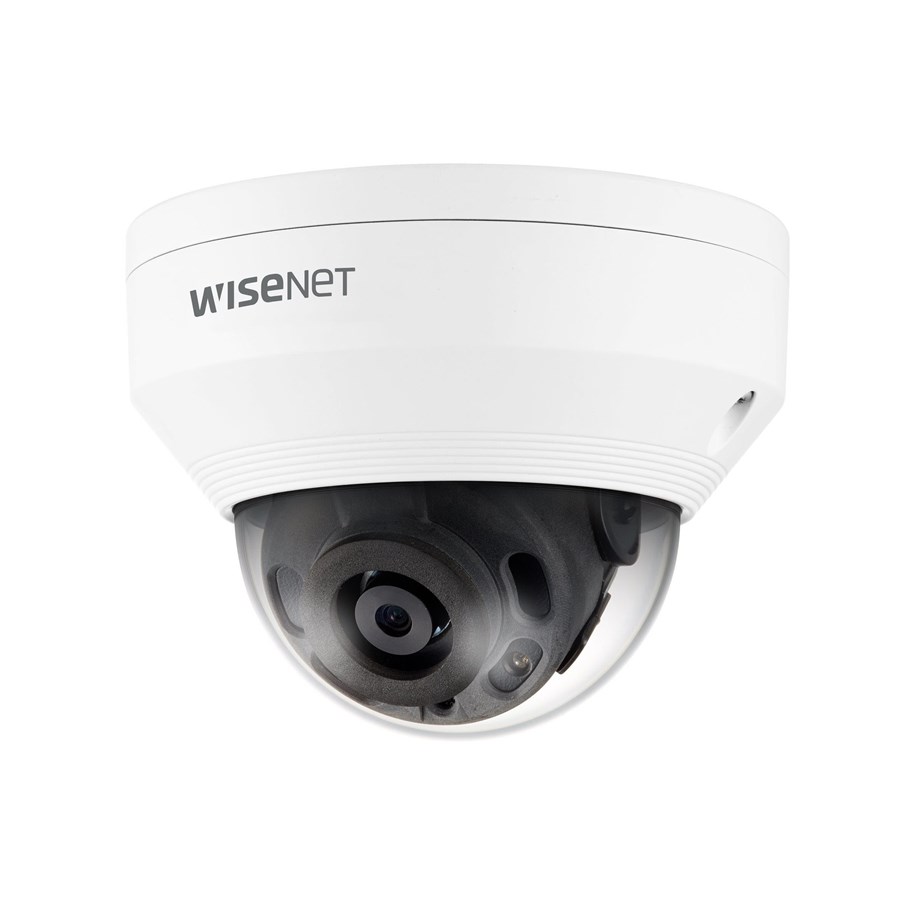

Hanwha Vision WiseNet Q QNV-7022R - network surveillance camera - dome
Netwerkbewakingscamera, koepel, binnen, openlucht, stofbestendig / waterbestendig / vandaalbestendig, kleur (Dag en nacht), 4 MP, 2560 x 1440, kaartmontage, automatische iris, vastgesteld brandpunt, audio, composiet, LAN 10/100, MJPEG, H.264, H.265, 12 V gelijkspanning / PoE-klasse 3
438,93 €
362,75 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The Hanwha Vision WiseNet Q QNV-7022R is a network surveillance camera designed to offer high image quality and robust performance in a variety of environments. Featuring a durable design with IP66 and IK10 ratings, it ensures protection against dust, water, and impacts, making it suitable for both indoor and outdoor installations. With a 1/3" CMOS sensor and resolutions up to 2560 x 1440, along with features such as Wide Dynamic Range (WDR) and Samsung Super Noise Reduction (SSNR), it delivers clear, detailed images under diverse lighting conditions. The camera's infrared LEDs provide up to 25 m of visibility in complete darkness, ensuring reliable surveillance day and night.Equipped with Intelligent Video Analysis (IVA), including motion and intrusion detection, the QNV-7022R enhances security efficiency and reduces false alarms. Its support for a wide range of network protocols and video formats, including H.264 and H.265, offers flexible connectivity and integration options. TAA compliance and adherence to standards like IEEE 802.1x and IEEE 802.3af further attest to its reliability and suitability for various applications, from retail to critical infrastructure. Choose the Hanwha Vision WiseNet Q QNV-7022R for a comprehensive surveillance solution that meets the demands of modern security challenges.
Producent
Productnummer
3458088
Model
QNV-7022R
EAN
8801089202628
Productbeschrijving
Hanwha Vision WiseNet Q QNV-7022R - netwerkbewakingscamera - koepel
Type apparaat
Netwerkbewakingscamera - vast - koepel - binnen, openlucht - stofbestendig / waterbestendig / vandaalbestendig
Audio
Ja
Afmetingen (BxDxH)
12.03 cm x 12.03 cm x 9.17 cm
Gewicht
510 g
Kleur
Wit, RAL 9003
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Max. resolutie
2560 x 1440
Framesnelheid (max)
15 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/3" - 4 MP
Minimale verlichting
0.15 lux - kleur - F1.6 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
4 mm
Lensmontage
Kaartmontage
Iris lens
F/1.6 - automatische iris (DC)
Panbereik (graden)
0 tot 350
Tiltbereik (graden)
0 tot 67
Interfaces
Composietvideo, Ethernet 10Base-T/100Base-TX
Voltage
12 V gelijkspanning / PoE-klasse 3
Voorzieningen
Achtergrondlichtcompensatie (BLC), progressief scannen, Wide Dynamic Range (WDR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, Intelligent Video Analysis (IVA), manipulatiedetectie, lensvervormingscorrectie, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, automatische versterkingsregeling, automatische witbalans, Defocus Detection, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, Samsung Super Noise Reduction (SSNR), WiseStream Smart Codec
Omgevingsparameters (besturing)
-30 °C - 55 °C; 0 - 90% relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Audio-ondersteuning
Ja
Formaat
Koepel
Verbindingstechnologie
Bedraad
Breedte
12.03 cm
Diepte
12.03 cm
Hoogte
9.17 cm
Gewicht
510 g
Camera
Type
Kleur - Dag en nacht - vast - binnen, openlucht - stofbestendig / waterbestendig / vandaalbestendig
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
2560 x 1440
Bewegingsdetectie
Ja
Minimale verlichting
0.15 lux - kleur - F1.6 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
25 m
Resolutie digitale video-opname
1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 2304 x 1296, 2560 x 1440, 800 x 448
Framesnelheid (max)
15 frames per seconde
Voorzieningen
Achtergrondlichtcompensatie (BLC), progressief scannen, Wide Dynamic Range (WDR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, Intelligent Video Analysis (IVA), manipulatiedetectie, lensvervormingscorrectie, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, automatische versterkingsregeling, automatische witbalans, Defocus Detection, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, Samsung Super Noise Reduction (SSNR), WiseStream Smart Codec
Beeldsensor
Type
4 MP CMOS 1/3"
Lensconstructie
Type
Kaartmontage - vastgesteld brandpunt
Brandpuntlengte
4 mm
Iris lens
F/1.6 automatische iris (DC)
Horizontaal gezichtsveld (graden)
78.2
Verticaal gezichtsveld (graden)
41.2
Diagonaal gezichtsveld (graden)
92
Pannen
Bereik (graden)
0 tot 350
Kanteling
Bereik (graden)
0 tot 67
Interfaces
Video
Composietvideo
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, PIM-SM
Aantal alarmingangen
1
Aantal alarmuitgangen
1
Uitbreiding / Aansluiting
Poorten
Composietvideo
Audio line-in/microfoon
LAN/voeding - RJ-45
Audio line-in/microfoon
LAN/voeding - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Diversen
Conformiteitsnormen
IK10, IP66, IEEE 802.3af, IEEE 802.1x, EN 62676-4
Kleur
Wit, RAL 9003
Stroom
Vereisten voeding
12 V gelijkspanning / PoE-klasse 3
Voeding
8.1 watt
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
55 °C
Relatieve vochtigheidsgraad (besturing)
0 - 90%
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
