Productnummer: 3457987

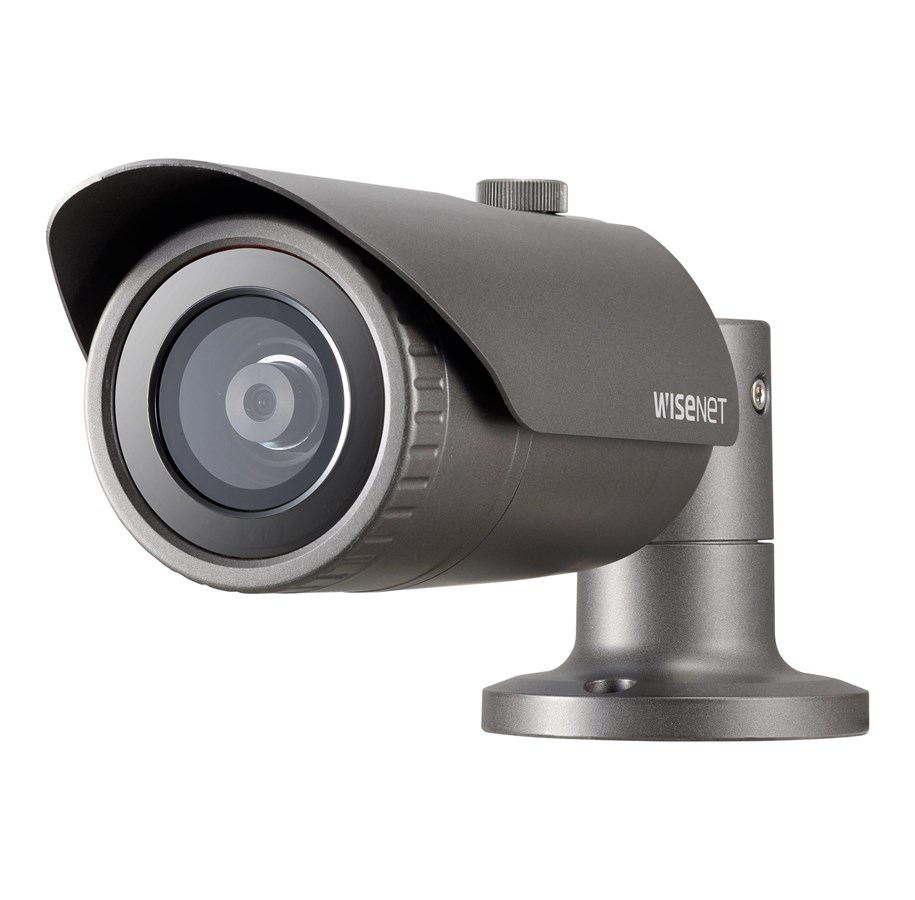

Hanwha Vision WiseNet Q QNO-8020R - network surveillance camera
Netwerkbewakingscamera, kleur (Dag en nacht), 5 MP, 2592 x 1944, vastgesteld brandpunt, composiet, LAN 10/100, MJPEG, H.264, H.265, PoE Class 3
491,53 €
406,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The Hanwha Vision WiseNet Q QNO-8020R network surveillance camera is engineered for durability and performance, offering high-quality imaging and advanced security features. With its ability to operate in extreme temperatures and high humidity, it's suitable for challenging outdoor environments. The camera's CMOS optical sensor and fixed focal lens provide sharp, detailed images, while infrared LEDs ensure clear night vision up to 25 m. Flexible storage options are available through support for microSD, microSDHC, and microSDXC cards. Networking capabilities are extensive, with support for a wide range of protocols to ensure seamless integration. Enhanced security features such as motion detection, tamper-detection, and IP address filtering help safeguard your premises. Additionally, the camera's Power over Ethernet (PoE) capability simplifies installation by reducing cable clutter. Whether for business or residential security, the Hanwha Vision WiseNet Q QNO-8020R offers a reliable, high-performance surveillance solution.
Producent
Productnummer
3457987
Model
QNO-8020R
EAN
8801089164223
Productbeschrijving
Hanwha Vision WiseNet Q QNO-8020R - netwerkbewakingscamera
Type apparaat
Netwerkbewakingscamera - vast
Afmetingen (BxDxH)
7 cm x 7 cm x 24.6 cm
Gewicht
680 g
Kleur
Donkergrijs
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht - NTSC, PAL
Max. resolutie
2592 x 1944
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/2.8" - 5 MP
Minimale verlichting
0.15 lux - kleur - F1.6 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
4 mm
Iris lens
F/1.6
Panbereik (graden)
0 tot 350
Tiltbereik (graden)
0 tot 67
Interfaces
Composietvideo, Ethernet 10Base-T/100Base-TX
Voltage
PoE Class 3
Voorzieningen
Achtergrondlichtcompensatie (BLC), Wide Dynamic Range (WDR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), manipulatiedetectie, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, automatische versterkingsregeling, automatische witbalans, Defocus Detection, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, Samsung Super Noise Reduction (SSNR), ondersteuning voor WiseStream II, IP-adres filteren, aluminium behuizing, ONVIF (T-profiel) -ondersteuning, direction detection
Omgevingsparameters (besturing)
-30 °C - 55 °C; 0 - 90% relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Verbindingstechnologie
Bedraad
Breedte
7 cm
Diepte
7 cm
Hoogte
24.6 cm
Gewicht
680 g
Camera
Type
Kleur - Dag en nacht - vast
Video-indeling
NTSC, PAL
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
2592 x 1944
Bewegingsdetectie
Ja
Belichtingsbereik
1/5 sec. - 1/12000 sec.
Minimale verlichting
0.15 lux - kleur - F1.6 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
25 m
Resolutie digitale video-opname
1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 2592 x 1944, 800 x 448
Framesnelheid (max)
30 frames per seconde
Voorzieningen
Achtergrondlichtcompensatie (BLC), Wide Dynamic Range (WDR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), manipulatiedetectie, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, automatische versterkingsregeling, automatische witbalans, Defocus Detection, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, Samsung Super Noise Reduction (SSNR), ondersteuning voor WiseStream II, IP-adres filteren, aluminium behuizing, ONVIF (T-profiel) -ondersteuning, direction detection
Beeldsensor
Type
5 MP CMOS 1/2.8"
Effectieve pixels
2592 x 1944
Lensconstructie
Type
Vastgesteld brandpunt
Brandpuntlengte
4 mm
Iris lens
F/1.6
Horizontaal gezichtsveld (graden)
79.8
Verticaal gezichtsveld (graden)
58.1
Diagonaal gezichtsveld (graden)
105.9
Pannen
Bereik (graden)
0 tot 350
Kanteling
Bereik (graden)
0 tot 67
Interfaces
Video
Composietvideo
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP
Aantal alarmingangen
1
Aantal alarmuitgangen
1
Uitbreiding / Aansluiting
Poorten
Composietvideo
LAN/voeding - RJ-45
LAN/voeding - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Diversen
Conformiteitsnormen
FCC, cULus, IK10, IP66, EAC, IEEE 802.3af, IEEE 802.1x
Kleur
Donkergrijs
Stroom
Vereisten voeding
PoE Class 3
Voeding
7.5 Watt
Software / Systeemvereisten
Benodigd besturingssysteem
Microsoft Windows 7 / 8.1 / 10, Apple MacOS X 10.10 - 10.14
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
55 °C
Relatieve vochtigheidsgraad (besturing)
0 - 90%
