Productnummer: 3457993

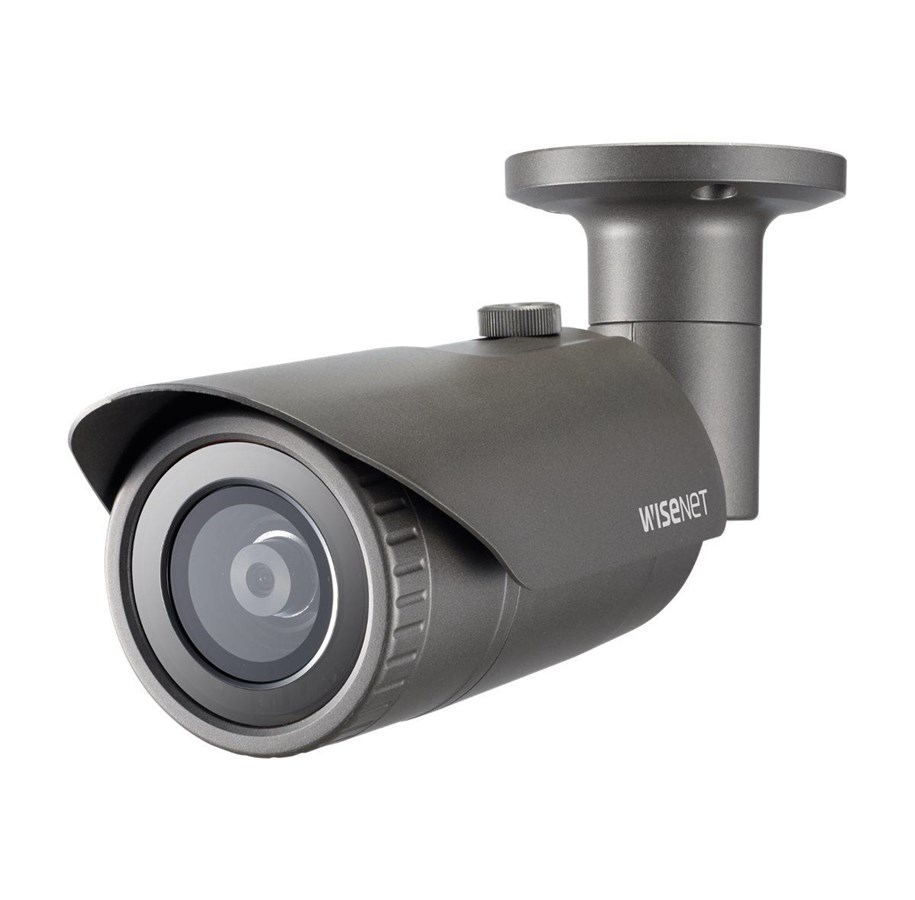

Hanwha Vision WiseNet Q QNO-7012R - network surveillance camera - bullet
Netwerkbewakingscamera, kogel, openlucht, dustproof / waterproof / impact resistant, kleur (Dag en nacht), 4 MP, 2560 x 1440, vastgesteld brandpunt, audio, composiet, LAN 10/100, MJPEG, H.264, H.265, 12 V gelijkspanning / PoE-klasse 3
438,93 €
362,75 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The Hanwha Vision WiseNet Q QNO-7012R network surveillance camera is engineered for durability and performance, offering high-resolution video surveillance in a robust design. With its dustproof, waterproof, and impact-resistant construction, it stands up to any environmental challenge while providing reliable monitoring around the clock. The camera features a 1/3" CMOS sensor, delivering clear and detailed images at resolutions up to 2560 x 1440. Its wide angular field of view, combined with imaging technologies like wide dynamic range and lens distortion compensation, ensures comprehensive coverage and high-quality footage under diverse lighting conditions.Equipped with infrared LEDs, the camera offers excellent night vision capabilities, ensuring visibility up to 20 m even in total darkness. It also boasts a suite of surveillance features, including motion detection, defocus detection, and tamper-detection, for enhanced security. The Hanwha Vision WiseNet Q QNO-7012R supports a broad range of network protocols and ONVIF profiles for seamless integration into existing systems. Its low power consumption and support for PoE make it an efficient choice for any surveillance setup.
Producent
Productnummer
3457993
Model
QNO-7012R
EAN
8801089202345
Productbeschrijving
Hanwha Vision WiseNet Q QNO-7012R - netwerkbewakingscamera - kogel
Type apparaat
Netwerkbewakingscamera - vast - kogel - openlucht - dustproof / waterproof / impact resistant
Audio
Ja
Afmetingen (BxDxH)
7 cm x 24.6 cm x 7 cm
Gewicht
700 g
Kleur
Donkergrijs
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Max. resolutie
2560 x 1440
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/3" - 4 MP
Minimale verlichting
0.15 lux - kleur - F2.0 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
2.8 mm
Focusinstelling
Vaste focus
Iris lens
F/2.0
Interfaces
Composietvideo, Ethernet 10Base-T/100Base-TX
Voltage
12 V gelijkspanning / PoE-klasse 3
Voorzieningen
Achtergrondlichtcompensatie (BLC), omdraaien van het beeld, spiegelen van het beeld, Wide Dynamic Range (WDR), Samsung Super Noise Reduction (SSNR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, automatische versterkingsregeling, automatische witbalans, Lens Distortion Compensation (LDC), Hallway View, anti-flikkering, Defocus Detection, richting detectie, detectie in-uitgang, manipulatiedetectie, Virtual Line detection, melding afbeelding naar E-mail, melding afbeelding naar FTP, Handover, alarmfunctie, auto ICR, ondersteuning voor WiseStream II, WiseStream Smart Codec, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, Multicast Streaming, samengevatte verificatie, IP-adres filteren, registratie gebruikerstoegang, Unicast Streaming
Omgevingsparameters (besturing)
-40 °C - 55 °C; 0 - 95% RH relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Audio-ondersteuning
Ja
Audio-indelingen
G.726, ADPCM, G.711u
Formaat
Kogel
Verbindingstechnologie
Bedraad
Breedte
7 cm
Diepte
24.6 cm
Hoogte
7 cm
Gewicht
700 g
Camera
Type
Kleur - Dag en nacht - vast - openlucht - dustproof / waterproof / impact resistant
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
2560 x 1440
Bewegingsdetectie
Ja
Belichtingsbereik
1/5 sec. - 1/12000 sec.
Minimale verlichting
0.15 lux - kleur - F2.0 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
20 m
Resolutie digitale video-opname
2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Framesnelheid (max)
30 frames per seconde
RAM
512 MB
Voorzieningen
Achtergrondlichtcompensatie (BLC), omdraaien van het beeld, spiegelen van het beeld, Wide Dynamic Range (WDR), Samsung Super Noise Reduction (SSNR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, automatische versterkingsregeling, automatische witbalans, Lens Distortion Compensation (LDC), Hallway View, anti-flikkering, Defocus Detection, richting detectie, detectie in-uitgang, manipulatiedetectie, Virtual Line detection, melding afbeelding naar E-mail, melding afbeelding naar FTP, Handover, alarmfunctie, auto ICR, ondersteuning voor WiseStream II, WiseStream Smart Codec, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, Multicast Streaming, samengevatte verificatie, IP-adres filteren, registratie gebruikerstoegang, Unicast Streaming
Beeldsensor
Type
4 MP CMOS 1/3"
Lensconstructie
Type
Vastgesteld brandpunt
Brandpuntlengte
2.8 mm
Iris lens
F/2.0
Focusinstelling
Vaste focus
Horizontaal gezichtsveld (graden)
107.5
Verticaal gezichtsveld (graden)
59.7
Diagonaal gezichtsveld (graden)
122
Interfaces
Video
Composietvideo
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
IPv4, IPv6, TCP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, PPPoE, UDP/IP
Aantal alarmingangen
1
Aantal alarmuitgangen
1
Uitbreiding / Aansluiting
Poorten
LAN/voeding - RJ-45
Composietvideo - BNC
Audio line in
Composietvideo - BNC
Audio line in
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Diversen
Conformiteitsnormen
IEEE 802.1x, IEEE 802.3af, IP66, IK10, NDAA
Kleur
Donkergrijs
Stroom
Vereisten voeding
12 V gelijkspanning / PoE-klasse 3
Voeding
9.1 watt
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
55 °C
Relatieve vochtigheidsgraad (besturing)
0 - 95% RH
