Productnummer: 3458127

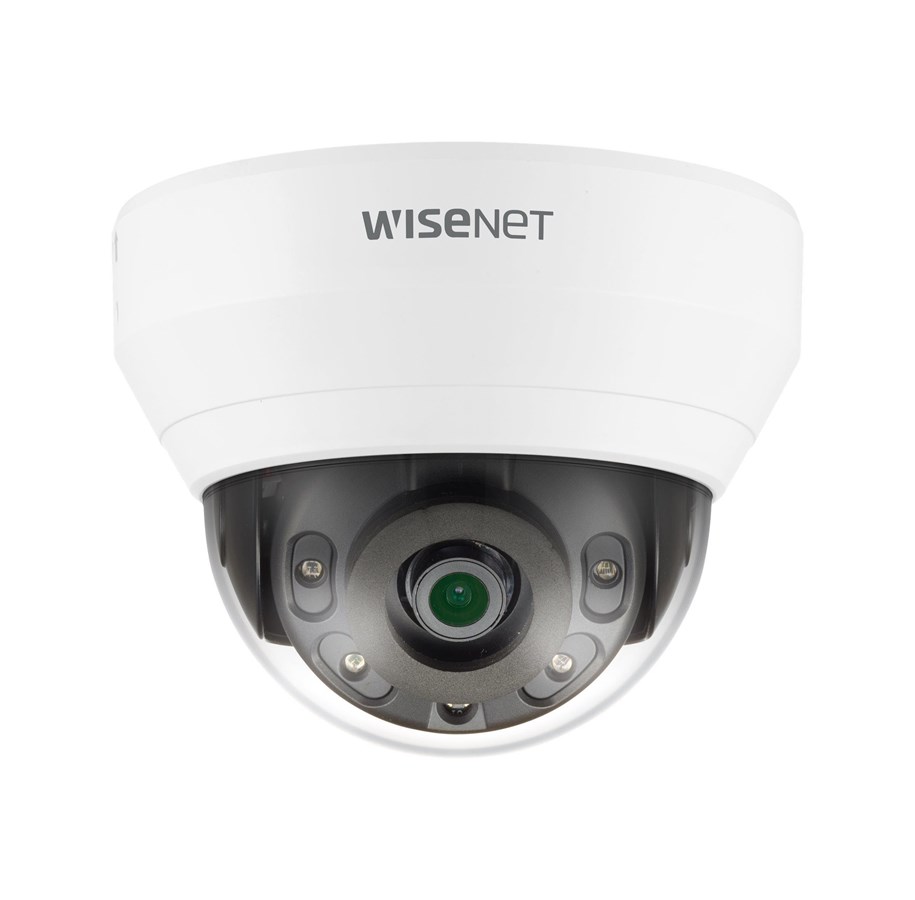

Hanwha Vision WiseNet Q QND-6012R1 - network surveillance camera - dome
Netwerkbewakingscamera, koepel, kleur (Dag en nacht), 2 MP, 1920 x 1080, vastgesteld brandpunt, composiet, LAN 10/100, H.265, H.264, MJPEG, 12 V gelijkspanning / PoE-klasse 3
316,45 €
261,53 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
The Hanwha Vision WiseNet Q model QND-6012R1 is engineered for comprehensive security monitoring. This network surveillance camera delivers high-definition video quality with a 1920 x 1080 resolution at 30 frames per second, capturing every detail with clarity. It features a wide angular field of view, reaching up to 134.5° diagonally, to cover extensive areas, reducing the need for multiple cameras. With infrared LEDs, the camera provides clear night vision up to 20 meters, ensuring reliable security at all times. Its sophisticated monitoring options, including motion detection and tamper detection, make it suitable for sensitive areas. The camera's compatibility with a wide range of network protocols and ONVIF profiles allows for easy integration into existing security systems, offering flexibility and ease of use for both business and residential applications.
Producent
Productnummer
3458127
Model
QND-6012R1
EAN
8801089208620
Productbeschrijving
Hanwha Vision WiseNet Q QND-6012R1 - netwerkbewakingscamera - koepel
Type apparaat
Netwerkbewakingscamera - vast - koepel
Afmetingen (BxDxH)
11 cm x 11 cm x 8.6 cm
Gewicht
255 g
Kleur
Wit, RAL 9003
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht - NTSC, PAL
Max. resolutie
1920 x 1080
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/2.8" - 2 MP
Minimale verlichting
0.03 lux - kleur - F2.0 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
2.8 mm
Focusinstelling
(min. afstand 0.5 m)
Iris lens
F/2.0
Panbereik (graden)
0 tot 350
Tiltbereik (graden)
0 tot 67
Interfaces
Composietvideo, Ethernet 10Base-T/100Base-TX
Voltage
12 V gelijkspanning / PoE-klasse 3
Voorzieningen
Bewegingsdetectie, manipulatiedetectie, Defocus Detection, Hallway View, Lens Distortion Compensation (LDC), achtergrondlichtcompensatie (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), privacybeschermingsfunctie, automatische versterkingsregeling, automatische witbalans, omdraaien van het beeld, spiegelen van het beeld, Directional Detection, technologie voor bewegingsdetectie, Virtual Line detection, ondersteuning voor WiseStream II, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, IP-adres filteren, ONVIF (profiel G)-steun, ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning
Omgevingsparameters (besturing)
-10 °C - 55 °C; 0 - 90% relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Formaat
Koepel
Verbindingstechnologie
Bedraad
Breedte
11 cm
Diepte
11 cm
Hoogte
8.6 cm
Gewicht
255 g
Camera
Type
Kleur - Dag en nacht - vast
Video-indeling
NTSC, PAL
Digitale video-indeling
H.265, H.264, MJPEG
Max digitale videoresolutie
1920 x 1080
Bewegingsdetectie
Ja
Belichtingsbereik
1/5 sec. - 1/12000 sec.
Minimale verlichting
0.03 lux - kleur - F2.0 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
20 m
Video Capture
1920 x 1080 @ 30 fps
RAM
512 MB
Flashgeheugen
256 MB
Voorzieningen
Bewegingsdetectie, manipulatiedetectie, Defocus Detection, Hallway View, Lens Distortion Compensation (LDC), achtergrondlichtcompensatie (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), privacybeschermingsfunctie, automatische versterkingsregeling, automatische witbalans, omdraaien van het beeld, spiegelen van het beeld, Directional Detection, technologie voor bewegingsdetectie, Virtual Line detection, ondersteuning voor WiseStream II, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, IP-adres filteren, ONVIF (profiel G)-steun, ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning
Beeldsensor
Type
2 MP CMOS 1/2.8"
Lensconstructie
Type
Vastgesteld brandpunt
Brandpuntlengte
2.8 mm
Iris lens
F/2.0
Min focusafstand
0.5 m
Horizontaal gezichtsveld (graden)
113.7
Verticaal gezichtsveld (graden)
61.5
Diagonaal gezichtsveld (graden)
134.5
Pannen
Bereik (graden)
0 tot 350
Kanteling
Bereik (graden)
0 tot 67
Interfaces
Video
Composietvideo
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, EAP
Aantal alarmingangen
1
Aantal alarmuitgangen
1
Uitbreiding / Aansluiting
Poorten
Composietvideo
LAN/voeding - RJ-45
LAN/voeding - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Diversen
Conformiteitsnormen
IEEE 802.1x, IEEE 802.3af
Kleur
Wit, RAL 9003
Stroom
Vereisten voeding
12 V gelijkspanning / PoE-klasse 3
Voeding
7.4 watt
Omgevingsparameters
Min. gebruikstemperatuur
-10 °C
Max. gebruikstemperatuur
55 °C
Relatieve vochtigheidsgraad (besturing)
0 - 90%
