Productnummer: 3458090

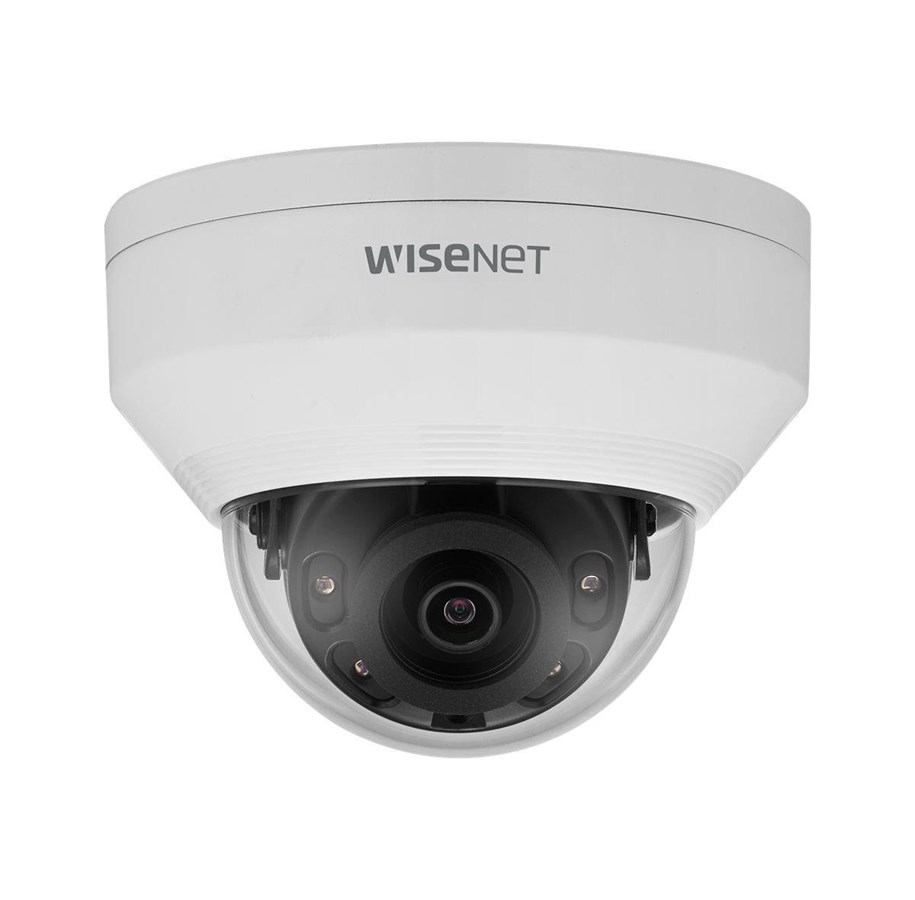

Hanwha Vision WiseNet ANV-L7012R - network surveillance camera - dome
Netwerkbewakingscamera, pan / tilt, koepel, binnen, openlucht, bestand tegen vandalisme, kleur (Dag en nacht), 4 MP, 2560 x 1440, vastgesteld brandpunt, LAN 10/100, H.264, H.265, MJPEG, PoE Class 3
299,14 €
247,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The Hanwha Vision WiseNet ANV-L7012R network surveillance camera is engineered to meet the requirements of modern security environments. Offering a wide 114.6-degree field of view, this camera captures extensive areas, reducing the need for multiple cameras and ensuring comprehensive surveillance. Its high-resolution 4 million pixel CMOS sensor provides exceptional image clarity, making it easier to identify details and monitor areas effectively.Designed for versatility, the ANV-L7012R features robust day and night functionality, with infrared LEDs that illuminate up to 20 m for clear footage in complete darkness. This capability, combined with advanced video analytics such as motion detection and Wide Dynamic Range (WDR), enables effective monitoring in any lighting condition. The camera's durable construction, adhering to IK10 and IP66 standards, ensures reliable performance in both indoor and outdoor settings, resisting vandalism and weather impacts.With support for network protocols and video formats, including H.265 and MJPEG, the ANV-L7012R integrates seamlessly into existing surveillance systems, offering efficient bandwidth management and storage solutions. Its suite of features, like WiseStream II, enhances video quality while minimizing data size, making it an ideal choice for secure, high-quality surveillance.
Producent
Productnummer
3458090
Model
ANV-L7012R
EAN
8801089228628
Productbeschrijving
Hanwha Vision WiseNet ANV-L7012R - netwerkbewakingscamera - koepel
Type apparaat
Netwerkbewakingscamera - pan / tilt - koepel - binnen, openlucht - bestand tegen vandalisme
Type camerbevestiging
Plafondbevestiging
Afmetingen (BxDxH)
12.03 cm x 12.03 cm x 9.17 cm
Gewicht
410 g
Kleur
Wit
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Max. resolutie
2560 x 1440
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/3" - 4 MP
Minimale verlichting
0.13 lux - kleur - F1.6 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
3 mm
Focusinstelling
Vaste focus (min. afstand 1.1 m)
Iris lens
F/1.6
Panbereik (graden)
0 tot 350
Tiltbereik (graden)
0 tot 67
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
PoE Class 3
Voorzieningen
Achtergrondlichtcompensatie (BLC), Samsung Super Dynamic Range (SSDR), Wide Dynamic Range (WDR), auto ICR, privacybeschermingsfunctie, technologie voor bewegingsdetectie, Lens Distortion Compensation (LDC), omdraaien van het beeld, spiegelen van het beeld, automatische versterkingsregeling, automatische witbalans, manipulatiedetectie, Hallway View, Multicast Streaming, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, anti-flikkering, Virtual Line detection, melding afbeelding naar FTP, melding afbeelding naar E-mail, trigger-opname, Unicast Streaming, Defocus Detection, IP-adres filteren, digitale ruisreductie, Handover, Directional Detection, kruislijndetectie, samengevatte verificatie, registratie gebruikerstoegang, ondersteuning voor WiseStream II
Omgevingsparameters (besturing)
-30 °C - 55 °C; 0 - 95% RH relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Formaat
Koepel
Type camerbevestiging
Plafondbevestiging
Verbindingstechnologie
Bedraad
Breedte
12.03 cm
Diepte
12.03 cm
Hoogte
9.17 cm
Gewicht
410 g
Camera
Type
Kleur - Dag en nacht - pan / tilt - binnen, openlucht - bestand tegen vandalisme
Digitale video-indeling
H.264, H.265, MJPEG
Max digitale videoresolutie
2560 x 1440
Bewegingsdetectie
Ja
Belichtingsbereik
1/5 sec. - 1/12000 sec.
Minimale verlichting
0.13 lux - kleur - F1.6 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
20 m
Video Capture
2560 x 1440 @ 30 fps
1920 x 1080 @ 30 fps
1280 x 960 @ 30 fps
1280 x 720 @ 30 fps
800 x 600 @ 30 fps
800 x 448 @ 30 fps
720 x 576 @ 30 fps
720 x 480 @ 30 fps
640 x 480 @ 30 fps
640 x 360 @ 30 fps
320 x 240 @ 30 fps
1920 x 1080 @ 30 fps
1280 x 960 @ 30 fps
1280 x 720 @ 30 fps
800 x 600 @ 30 fps
800 x 448 @ 30 fps
720 x 576 @ 30 fps
720 x 480 @ 30 fps
640 x 480 @ 30 fps
640 x 360 @ 30 fps
320 x 240 @ 30 fps
RAM
512 MB
Flashgeheugen
256 MB
Voorzieningen
Achtergrondlichtcompensatie (BLC), Samsung Super Dynamic Range (SSDR), Wide Dynamic Range (WDR), auto ICR, privacybeschermingsfunctie, technologie voor bewegingsdetectie, Lens Distortion Compensation (LDC), omdraaien van het beeld, spiegelen van het beeld, automatische versterkingsregeling, automatische witbalans, manipulatiedetectie, Hallway View, Multicast Streaming, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, anti-flikkering, Virtual Line detection, melding afbeelding naar FTP, melding afbeelding naar E-mail, trigger-opname, Unicast Streaming, Defocus Detection, IP-adres filteren, digitale ruisreductie, Handover, Directional Detection, kruislijndetectie, samengevatte verificatie, registratie gebruikerstoegang, ondersteuning voor WiseStream II
Beeldsensor
Type
4 MP CMOS 1/3"
Lensconstructie
Type
Vastgesteld brandpunt
Brandpuntlengte
3 mm
Iris lens
F/1.6
Focusinstelling
Vaste focus
Min focusafstand
1.1 m
Horizontaal gezichtsveld (graden)
98.3
Verticaal gezichtsveld (graden)
54.2
Diagonaal gezichtsveld (graden)
114.6
Pannen
Bereik (graden)
0 tot 350
Kanteling
Bereik (graden)
0 tot 67
Interfaces
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM
Uitbreiding / Aansluiting
Poorten
LAN/voeding - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Diversen
Conformiteitsnormen
IP66, IEEE 802.3af, IK10, IEEE 802.1x
Kleur
Wit
Stroom
Vereisten voeding
PoE Class 3
Voeding
5.7 Watt
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
55 °C
Relatieve vochtigheidsgraad (besturing)
0 - 95% RH
