Productnummer: 3458012

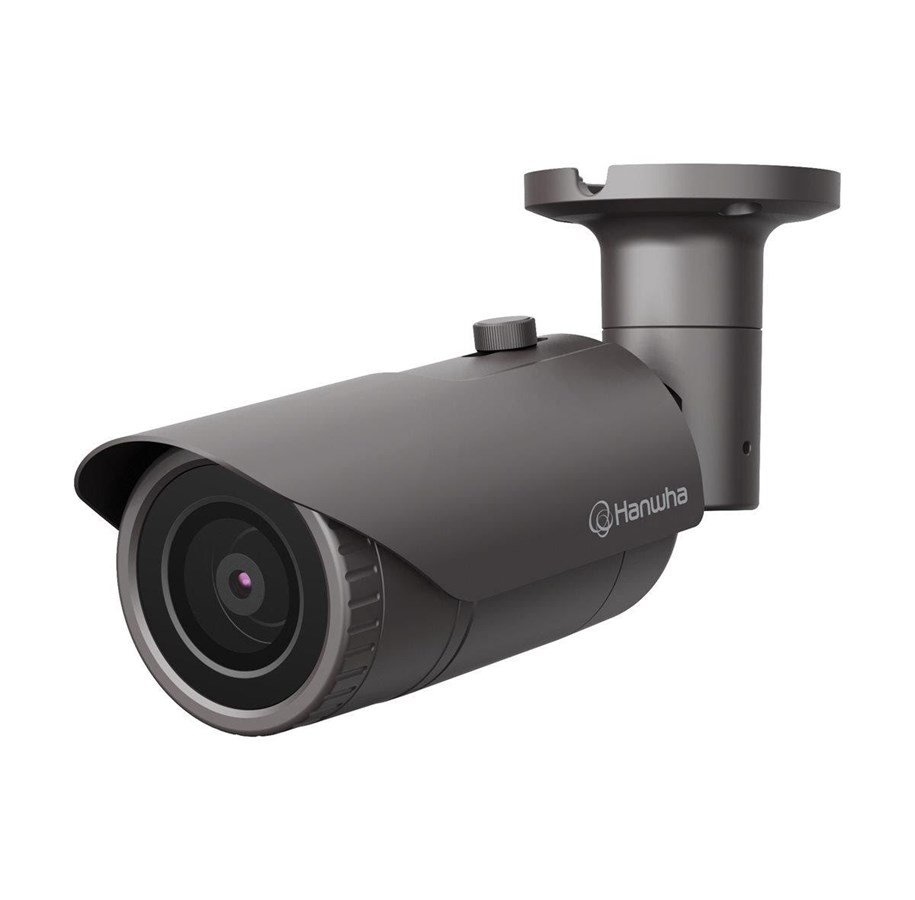

Hanwha Vision QNO-6012R1 - network surveillance camera - bullet
Netwerkbewakingscamera, kogel, kleur (Dag en nacht), 2 MP, 1920 x 1080, vastgesteld brandpunt, composiet, LAN 10/100, MJPEG, H.264, H.265, 12 V gelijkspanning / PoE-klasse 3
378,28 €
312,63 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
The Hanwha Vision QNO-6012R1 is built to withstand diverse environmental conditions with an operating temperature range from -30°C to 55°C and humidity tolerance of 0 to 90% RH. This network surveillance camera features a robust construction compliant with IK10 and IP66 standards to ensure durability and reliability in various settings. It is powered by PoE, consuming just 7 W, making it an efficient choice for surveillance needs. With a 2 MP CMOS optical sensor, it delivers high-definition video capture at a resolution of 1920 x 1080 pixels and supports multiple video formats, including H.264 and H.265. Additionally, the camera is equipped with infrared LEDs that provide visibility up to 20 m even in low-light conditions, making it suitable for day and night surveillance.This model incorporates advanced features such as Wide Dynamic Range (WDR), motion detection, and smart codec technology to enhance performance in challenging environments. With robust networking capabilities, the camera supports various protocols, ensuring versatile integration into existing systems. The included features like privacy mask function, alarm inputs and outputs, and email alerts enhance security management effectively, providing priorities for safety monitoring. The Hanwha Vision QNO-6012R1 is a reliable choice for comprehensive surveillance, combining versatile technology with practical usability.
Producent
Productnummer
3458012
Model
QNO-6012R1
EAN
8801089209030
Productbeschrijving
Hanwha Vision QNO-6012R1 - netwerkbewakingscamera - kogel
Type apparaat
Netwerkbewakingscamera - vast - kogel
Afmetingen (BxDxH)
7 cm x 7 cm x 24.6 cm
Gewicht
700 g
Kleur
Donkergrijs
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Max. resolutie
1920 x 1080
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
CMOS - 1/2.8" - 2 MP
Minimale verlichting
0.03 lux - kleur - F2.0 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
2.8 mm
Focusinstelling
(min. afstand 50 cm)
Iris lens
F/2.0
Panbereik (graden)
0 tot 360
Tiltbereik (graden)
0 tot 100
Interfaces
Composietvideo, Ethernet 10Base-T/100Base-TX
Voltage
12 V gelijkspanning / PoE-klasse 3
Voorzieningen
Achtergrondlichtcompensatie (BLC), omdraaien van het beeld, spiegelen van het beeld, Wide Dynamic Range (WDR), Samsung Super Noise Reduction (SSNR), Samsung Super Dynamic Range (SSDR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), handmatige witbalans, Lens Distortion Compensation (LDC), anti-flikkering, Hallway View, manipulatiedetectie, Defocus Detection, indringingsdetectie, enter area detection, exit detection, detectie voor lijnoverschrijding, network disconnection, alarm event, FTP waarschuwingen, waarschuwingen per e-mail, Handover, Virtual Line detection, Smart Codec, ondersteuning voor WiseStream II, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, firmware encryptie, samengevatte verificatie, bescherming door uitstelling brute kracht, 802.1x authentication, IP-adres filteren
Omgevingsparameters (besturing)
-30 °C - 55 °C; 0 - 90% RH relatieve vochtigheidsgraad
Algemeen
Type apparaat
Netwerkbewakingscamera
Formaat
Kogel
Verbindingstechnologie
Bedraad
Breedte
7 cm
Diepte
7 cm
Hoogte
24.6 cm
Gewicht
700 g
Camera
Type
Kleur - Dag en nacht - vast
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
1920 x 1080
Bewegingsdetectie
Ja
Belichtingsbereik
1/5 sec. - 1/12000 sec.
Minimale verlichting
0.03 lux - kleur - F2.0 - sluiter 1/30 sec
0 lux - Z/W - infrarode LED's aan
0 lux - Z/W - infrarode LED's aan
Infrarood LED's
Ja
Infrarood afstand
20 m
Video Capture
1920 x 1080 @ 30 fps
RAM
512 MB
Flashgeheugen
256 MB
Voorzieningen
Achtergrondlichtcompensatie (BLC), omdraaien van het beeld, spiegelen van het beeld, Wide Dynamic Range (WDR), Samsung Super Noise Reduction (SSNR), Samsung Super Dynamic Range (SSDR), technologie voor bewegingsdetectie, privacybeschermingsfunctie, gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), handmatige witbalans, Lens Distortion Compensation (LDC), anti-flikkering, Hallway View, manipulatiedetectie, Defocus Detection, indringingsdetectie, enter area detection, exit detection, detectie voor lijnoverschrijding, network disconnection, alarm event, FTP waarschuwingen, waarschuwingen per e-mail, Handover, Virtual Line detection, Smart Codec, ondersteuning voor WiseStream II, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, ONVIF (S-profiel)-steun, ONVIF (profiel G)-steun, ONVIF (T-profiel) -ondersteuning, firmware encryptie, samengevatte verificatie, bescherming door uitstelling brute kracht, 802.1x authentication, IP-adres filteren
Beeldsensor
Type
2 MP CMOS 1/2.8"
Effectieve pixels
1920 x 1080
Lensconstructie
Type
Vastgesteld brandpunt
Brandpuntlengte
2.8 mm
Iris lens
F/2.0
Min focusafstand
50 cm
Horizontaal gezichtsveld (graden)
114
Verticaal gezichtsveld (graden)
62
Diagonaal gezichtsveld (graden)
135
Pannen
Bereik (graden)
0 tot 360
Kanteling
Bereik (graden)
0 tot 100
Interfaces
Video
Composietvideo
Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SUNAPI, SRTP
Aantal alarmingangen
1
Aantal alarmuitgangen
1
Uitbreiding / Aansluiting
Poorten
Composietvideo
LAN/voeding - RJ-45
LAN/voeding - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Encryptie-algoritme
EAP-TLS, EAP-LEAP, MSCHAPv2
Diversen
Conformiteitsnormen
IP66, IK10, IEEE 802.3af, EN 62676-4
Kleur
Donkergrijs
Stroom
Vereisten voeding
12 V gelijkspanning / PoE-klasse 3
Voeding
7 Watt
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
55 °C
Relatieve vochtigheidsgraad (besturing)
0 - 90% RH
