Productnummer: 3162007

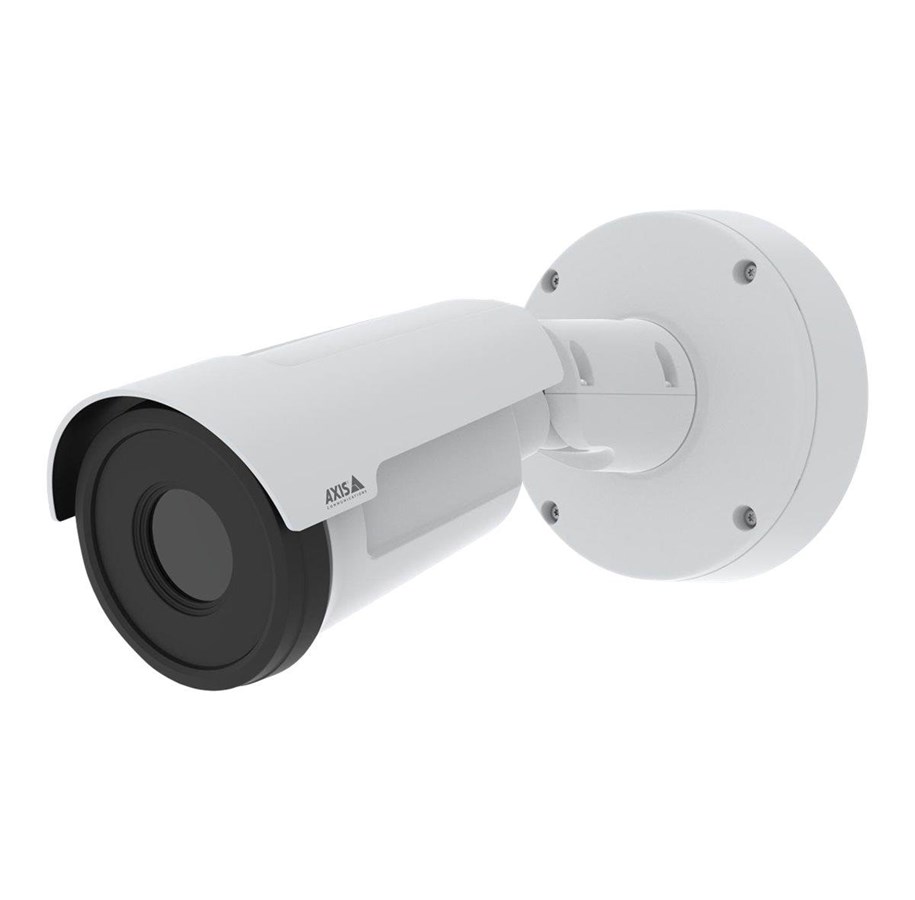

Axis Q1961-TE
Thermische netwerkcamera, openlucht, bestand tegen stoten / corrosie, 768 x 576, vastgesteld brandpunt, audio, GbE, H.264B, H.264M, H.264H, H.265, MJPEG, DC 10, 28 V / PoE klasse 3, TAA Compliant
5.120,02 €
4.231,42 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
The AXIS Q1961-TE thermal network camera is a reliable surveillance solution designed for performance in demanding environments. With its ability to operate in extreme temperatures and comply with numerous standards for durability and resistance, this camera is suitable for industrial, outdoor, and high-security areas. It features an uncooled micro bolometer optical sensor for clear thermal imaging, essential for detecting threats and ensuring safety around the clock. The camera's security features, including audio detection and an active tampering alarm, provide an additional layer of security. Moreover, its deep learning processing unit enables sophisticated analytics for accurate monitoring and threat detection. With flexible storage options and comprehensive network protocol support, the AXIS Q1961-TE is versatile and can be adapted to various surveillance needs, making it an invaluable asset for protecting premises and ensuring operational continuity.
Producent
Productnummer
3162007
Model
02174-001
EAN
5715063028810
Naar de website van de producent
Productbeschrijving
AXIS Q1961-TE - thermische netwerkcamera - TAA Compliant
Type apparaat
Thermische netwerkcamera - vast - openlucht - bestand tegen stoten / corrosie
Audio
Ja: tweeweg-audio via rand-tot-randtechnologie
Afmetingen (BxDxH)
13.2 cm x 27.2 cm x 13.2 cm
Gewicht
1.4 kg
Kleur
Wit, NCS S 1002-B
Verbindingstechnologie
Bedraad
Max. resolutie
768 x 576
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
Niet-gekoelde micro-bolometer
Brandpuntsafstandregeling
Vastgesteld brandpunt
Brandpuntlengte
7 mm
Focusinstelling
(min. afstand 1.3 m)
Iris lens
F/1.18
Interfaces
Ethernet 10Base-T/100Base-TX/1000Base-T
Voltage
DC 10 - 28 V / PoE klasse 3
Voorzieningen
Thermische gevoeligheid 40 mK (NETD), spectrale respons 8 - 14 μm, temperatuurmeter locatie, detectie voor 10 temperatuurzones, verwerkingseenheid voor diep leren (DLPU), regeling temperatuur object -40 °C tot 350 °C, Adaptive Bitrate (ABR), multi-bitsnelheid (MBR), Variable Bitrate (VBR), indicator videostreaming, Zipstream-technologie, beeldrotatie 180°, beeldrotatie 270°, beeldrotatie 90°, helderheidsregeling, compressie, contrastregeling, doorgangsmodus, elektronische beeldstabilisatie, blootstellingszone, spiegelen van het beeld, foto-overlapping, meerdere kleurenpaletten, polygoon privacy-masker, scherpteregeling, tekst-overlay, automatische versterkingsregeling, luidsprekerkoppeling netwerk, simplex audio, half duplex audio, ONVIF (profiel G)-steun, ondersteunt ONVIF (Profile M), ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, VAPIX-ondersteuning, geluidsdetectie, Pixel Counter Support, tijdige melding brandpreventie, actief antiknoeialarm, bescherming door uitstelling brute kracht, samengevatte verificatie, encryptie geheugenkaart, wachtwoordbeveiliging, gesigneerde firmware, identiteit Axis-apparaat, Axis Edge Vault, veilig opstarten, veilige sleutelbewaarplaats, signed video, isothermisch palet, Trusted Platform Module (TPM)
Conform TAA
Ja
Omgevingsparameters (besturing)
-40 °C - 60 °C; 10 - 100% RH (condensing) relatieve vochtigheidsgraad
Algemeen
Type apparaat
Thermische netwerkcamera
Audio-ondersteuning
Ja: tweeweg-audio via rand-tot-randtechnologie
Audio-indelingen
LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS
Verbindingstechnologie
Bedraad
Breedte
13.2 cm
Diepte
27.2 cm
Hoogte
13.2 cm
Gewicht
1.4 kg
Lokalisatie
Argentinië, Australië, China, Europese Unie, Japan, Korea, Verenigd Koninkrijk, Verenigde Staten
Camera
Type
- vast - openlucht - bestand tegen stoten / corrosie
Digitale video-indeling
H.264B, H.264M, H.264H, H.265, MJPEG
Max digitale videoresolutie
768 x 576
Bewegingsdetectie
Ja
Framesnelheid (max)
30 frames per seconde
RAM
2 GB
Flashgeheugen
8 GB
Voorzieningen
Thermische gevoeligheid 40 mK (NETD), spectrale respons 8 - 14 μm, temperatuurmeter locatie, detectie voor 10 temperatuurzones, verwerkingseenheid voor diep leren (DLPU), regeling temperatuur object -40 °C tot 350 °C, Adaptive Bitrate (ABR), multi-bitsnelheid (MBR), Variable Bitrate (VBR), indicator videostreaming, Zipstream-technologie, beeldrotatie 180°, beeldrotatie 270°, beeldrotatie 90°, helderheidsregeling, compressie, contrastregeling, doorgangsmodus, elektronische beeldstabilisatie, blootstellingszone, spiegelen van het beeld, foto-overlapping, meerdere kleurenpaletten, polygoon privacy-masker, scherpteregeling, tekst-overlay, automatische versterkingsregeling, luidsprekerkoppeling netwerk, simplex audio, half duplex audio, ONVIF (profiel G)-steun, ondersteunt ONVIF (Profile M), ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, VAPIX-ondersteuning, geluidsdetectie, Pixel Counter Support, tijdige melding brandpreventie, actief antiknoeialarm, bescherming door uitstelling brute kracht, samengevatte verificatie, encryptie geheugenkaart, wachtwoordbeveiliging, gesigneerde firmware, identiteit Axis-apparaat, Axis Edge Vault, veilig opstarten, veilige sleutelbewaarplaats, signed video, isothermisch palet, Trusted Platform Module (TPM)
Beeldsensor
Type
Niet-gekoelde micro-bolometer
Effectieve pixels
384 x 288
Lensconstructie
Type
Vastgesteld brandpunt
Brandpuntlengte
7 mm
Iris lens
F/1.18
Min focusafstand
1.3 m
Horizontaal gezichtsveld (graden)
55
Interfaces
Netwerkinterface
Ethernet 10Base-T/100Base-TX/1000Base-T
Netwerkprotocollen
IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Aantal alarmingangen
1
Aantal alarmuitgangen
1
Uitbreiding / Aansluiting
Poorten
LAN/voeding - RJ-45
Audio line-in/microfoon - 3,5 mm aansluiting
Audio line-in/microfoon - 3,5 mm aansluiting
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Diversen
Meegeleverde accessoires
Sjabloon voor boorgaten, L-torsiesleutel, klemmenblokverbindingen, aansluitingsbescherming, kabelafdichtingen, verificatiesleutel eigenaar
Conform TAA
Ja
Conformiteitsnormen
CSA, UL/cUL, UKCA, KC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 62236-4, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 method B, MIL-STD 810H 501.7, MIL-STD 810H 502.7, MIL-STD 810H 505.7, MIL-STD 810H 506.6, MIL-STD 810H 507.6, MIL-STD 810H 509.7, MIL-STD 810H 510.7, MIL-STD 810H 514.8, MIL-STD 810H 516.8, MIL-STD 810H 521.4, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, EAL 4+, FIPS 140-2 niveau 2, IEEE 802.1x, IEEE 802.1ar, X.509, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-vrij, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907
Kleur
Wit, NCS S 1002-B
Stroom
Vereisten voeding
DC 10 - 28 V / PoE klasse 3
Software / Systeemvereisten
Software meegeleverd
AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard
Garantie van de fabrikant
Service & Support
Beperkte garantie - 5 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
60 °C
Relatieve vochtigheidsgraad (besturing)
10 - 100% RH (condensing)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
