Productnummer: 3268033

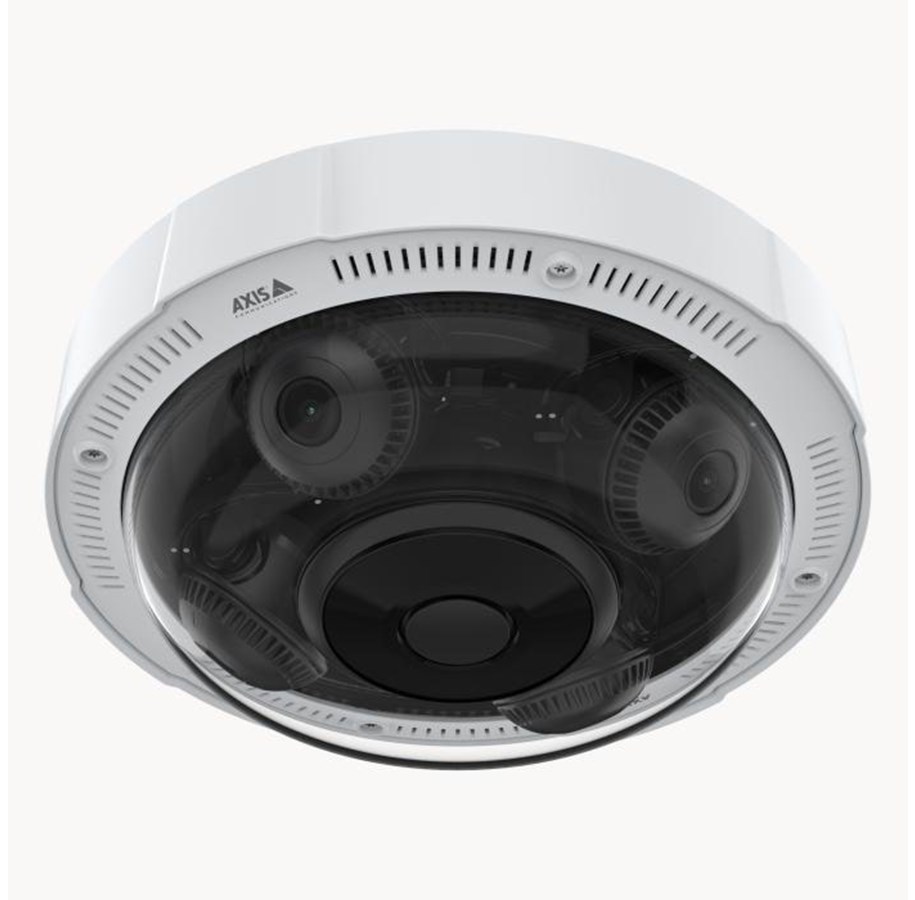

Axis P3737-PLE Panoramic AI-powered 4x5 MP multidirectional Camera
Axis P3737-PLE Dome IP-beveiligingscamera Binnen & buiten 2688 x 1944 Pixels Plafond
2.125,86 €
1.756,91 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Producent
Productnummer
3268033
Model
02634-001
EAN
7331021080638
Naar de website van de producent
Productbeschrijving
AXIS P37 Series P3737-PLE - panoramische netwerkcamera - koepel - TAA Compliant
Type apparaat
Panoramische netwerkcamera - multisensor - koepel - openlucht - fraudebestendig / weerbestendig
Audio
Ja: tweeweg-audio via optionele audio- en I/O-aansluiting, koppeling luidspreker
Afmetingen (BxDxH)
25.5 cm x 25.5 cm x 9.2 cm
Gewicht
2 kg
Kleur
Wit, NCS S 1002-B
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Optisch in-/uitzoomen
2.5 x
Max. resolutie
2592 x 1944
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
PS RGB CMOS - 4 x 1/2.7" - 4 x 5 MP
Minimale verlichting
0.19 lux - kleur - F1.9 - 50 IRE
0 lux - Z/W - F1.9 - 50 IRE
0 lux - IR
0 lux - Z/W - F1.9 - 50 IRE
0 lux - IR
Brandpuntsafstandregeling
Vari-focal
Brandpuntlengte
3.2 mm - 8.1 mm
Focusinstelling
(min. afstand 0.5 m)
Iris lens
F/1.9-3.2 - vaste iris
Panbereik (graden)
-90 tot +90
Tiltbereik (graden)
25 to 95
Interfaces
Ethernet 10Base-T/100Base-TX/1000Base-T
Voltage
PoE Plus Class 4
Voorzieningen
IR-gecorrigeerde lens, zoom op afstand, scherpstellen op afstand, infrarood cut-filter, verwerkingseenheid voor diep leren (DLPU), Zipstream-technologie, Variable Bitrate (VBR), Adaptive Bitrate (ABR), multi-bitsnelheid (MBR), lage latentie-modus, indicator videostreaming, Forensic WDR, 2D Noise Reduction Technology, 3D-lawaaiverminderingstechnologie, dag-nachtgrens, tone mapping, correctie tonnvormige vervorming, tekst-overlay, foto-overlapping, dynamische tekst, privacybeschermingsfunctie, polygoon privacy-masker, Lightfinder-technologie, OptimizedIR, ONVIF (profiel G)-steun, ondersteunt ONVIF (Profile M), ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, Pixel Counter Support, scene metadata, gesigneerde firmware, bescherming door uitstelling brute kracht, samengevatte verificatie, wachtwoordbeveiliging, Axis Edge Vault, identiteit Axis-apparaat, veilige sleutelbewaarplaats, signed video, veilig opstarten, IP-adres filteren
Conform TAA
Ja
Omgevingsparameters (besturing)
-30 °C - 50 °C; 10 - 100% RH (condensing) relatieve vochtigheidsgraad
Algemeen
Type apparaat
Panoramische netwerkcamera
Audio-ondersteuning
Ja: tweeweg-audio via optionele audio- en I/O-aansluiting, koppeling luidspreker
Formaat
Koepel
Verbindingstechnologie
Bedraad
Breedte
25.5 cm
Diepte
25.5 cm
Hoogte
9.2 cm
Gewicht
2 kg
Lokalisatie
Argentinië, Australië, Brazilië, China, Europa, Japan, Korea, Verenigd Koninkrijk, Verenigde Staten
Camera
Type
Kleur - Dag en nacht - multisensor - openlucht - fraudebestendig / weerbestendig
Digitale video-indeling
H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC
Max digitale videoresolutie
2592 x 1944
Bewegingsdetectie
Ja
Belichtingsbereik
1/5 sec. - 1/50000 sec.
Minimale verlichting
0.19 lux - kleur - F1.9 - 50 IRE
0 lux - Z/W - F1.9 - 50 IRE
0 lux - IR
0 lux - Z/W - F1.9 - 50 IRE
0 lux - IR
Infrarood LED's
Ja
Infrarood afstand
15 m
Video Capture
2592 x 1944 @ 20 fps
2560 x 1440 @ 25/30 fps
2560 x 1440 @ 25/30 fps
RAM
4 GB
Flashgeheugen
8 GB
Voorzieningen
IR-gecorrigeerde lens, zoom op afstand, scherpstellen op afstand, infrarood cut-filter, verwerkingseenheid voor diep leren (DLPU), Zipstream-technologie, Variable Bitrate (VBR), Adaptive Bitrate (ABR), multi-bitsnelheid (MBR), lage latentie-modus, indicator videostreaming, Forensic WDR, 2D Noise Reduction Technology, 3D-lawaaiverminderingstechnologie, dag-nachtgrens, tone mapping, correctie tonnvormige vervorming, tekst-overlay, foto-overlapping, dynamische tekst, privacybeschermingsfunctie, polygoon privacy-masker, Lightfinder-technologie, OptimizedIR, ONVIF (profiel G)-steun, ondersteunt ONVIF (Profile M), ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, Pixel Counter Support, scene metadata, gesigneerde firmware, bescherming door uitstelling brute kracht, samengevatte verificatie, wachtwoordbeveiliging, Axis Edge Vault, identiteit Axis-apparaat, veilige sleutelbewaarplaats, signed video, veilig opstarten, IP-adres filteren
Beeldsensor
Type
4 x 5 MP PS RGB CMOS 4 x 1/2.7"
Lensconstructie
Type
Vari-focal
Optisch in-/uitzoomen
2.5 x
Brandpuntlengte
3.2 mm - 8.1 mm
Iris lens
F/1.9-3.2 vaste iris
Min focusafstand
0.5 m
Horizontaal gezichtsveld (graden)
37 - 99
Verticaal gezichtsveld (graden)
28 - 70
Diagonaal gezichtsveld (graden)
47 - 134
Pannen
Bereik (graden)
-90 tot +90
Kanteling
Bereik (graden)
25 to 95
Interfaces
Netwerkinterface
Ethernet 10Base-T/100Base-TX/1000Base-T
Netwerkprotocollen
IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Uitbreiding / Aansluiting
Poorten
LAN - RJ-45
Ondersteunde geheugenkaarten
microSD-kaart, microSDHC-kaart, microSDXC-kaart
Encryptie-algoritme
TLS 1.2, TLS 1.3
Diversen
Meegeleverde accessoires
Aansluitingsbescherming, kabelafdichtingen
Conform TAA
Ja
Conformiteitsnormen
IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, BFR-vrij, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907
Kleur
Wit, NCS S 1002-B
Stroom
Vereisten voeding
PoE Plus Class 4
Voeding
13.25 Watt
Software / Systeemvereisten
Software meegeleverd
AXIS Object Analytics, AXIS Video Motion Detection
Garantie van de fabrikant
Service & Support
Beperkte garantie - 5 jaar
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
50 °C
Relatieve vochtigheidsgraad (besturing)
10 - 100% RH (condensing)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
