Productnummer: 3525071

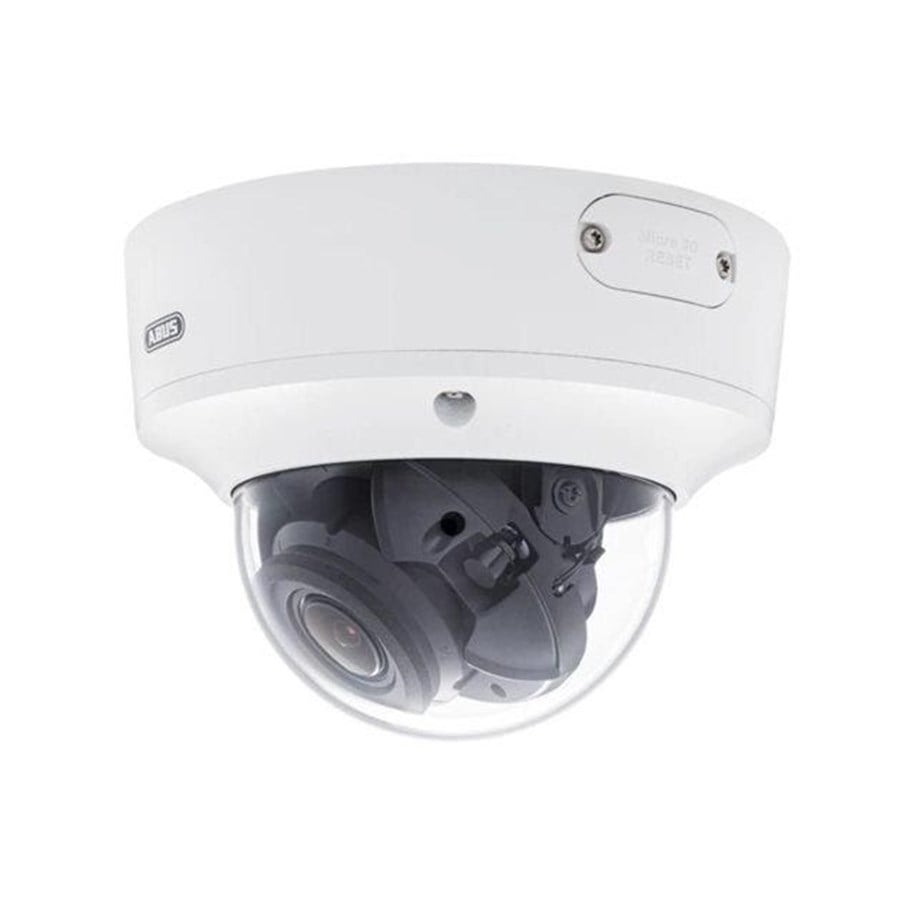

ABUS IPCB78521 - network surveillance camera - dome

Netwerkbewakingscamera, koepel, openlucht, stof / vandalisme / waterbestendig, kleur (Dag en nacht), 8 MP, 3840 x 2160, gemotoriseerd, audio, LAN 10/100, MJPEG, H.264, H.265, 12 V gelijkstroom / PoE (power over ethernet)

474,51 € 392,16 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The ABUS IPCB78521 network surveillance camera is designed for both indoor and outdoor monitoring, featuring robust construction that is dust, vandal, and waterproof. This camera operates efficiently in a wide range of environmental conditions, with a minimum operating temperature of -30 °C and a maximum of 60 °C, all while being capable of functioning in 0 to 95% humidity levels. It utilizes a powerful 8,000,000 pixel PS CMOS sensor, delivering video resolutions up to 3840 x 2160, ensuring clear and detailed surveillance footage. Equipped with motorized zoom capabilities, the IPCB78521 allows for a range of focal lengths from 2.8 mm to 12 mm, with an angular field of view up to 108 degrees horizontally. The camera supports various network protocols for seamless integration and features such as email alerts, motion detection, and infrared mode with a distance of 40 m, making it an efficient option for any security system. Additionally, its NVR-ready functionality enhances versatility, allowing for easy connection to network video recorders for additional surveillance options.

Producent
Productnummer
3525071
Model
IPCB78521
EAN
4043158193602
Productbeschrijving
ABUS IPCB78521 - netwerkbewakingscamera - koepel
Type apparaat
Netwerkbewakingscamera - vast - koepel - openlucht - stof / vandalisme / waterbestendig
Audio
Ja
Type camerbevestiging
Plafondbevestiging
Afmetingen (BxDxH)
15.4 cm x 15.4 cm x 11.2 cm
Gewicht
900 g
Verbindingstechnologie
Bedraad
Camera
Kleur - Dag en nacht
Optisch in-/uitzoomen
4.2 x
Max. resolutie
3840 x 2160
Framesnelheid (max)
30 frames per seconde
Bewegingsdetectie
Ja
Type optische sensor
PS CMOS - 1/1.8" - 8 MP
Minimale verlichting
0.003 lux - kleur
0 lux - IR
Brandpuntsafstandregeling
Gemotoriseerde zoom
Brandpuntlengte
2.8 mm - 12 mm
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
12 V gelijkstroom / PoE (power over ethernet)
Voorzieningen
Waarschuwingen per e-mail, NAS alerts, FTP waarschuwingen, geluidsalarm, ONVIF (profiel G)-steun, ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, NVR-Ready, Wide Dynamic Range (WDR), achtergrondlichtcompensatie (BLC), Highlight Compensation (HLC)
Omgevingsparameters (besturing)
-30 °C - 60 °C; 0 - 95% relatieve vochtigheidsgraad

Algemeen

Type apparaat
Netwerkbewakingscamera
Audio-ondersteuning
Ja
Formaat
Koepel
Type camerbevestiging
Plafondbevestiging
Verbindingstechnologie
Bedraad
Breedte
15.4 cm
Diepte
15.4 cm
Hoogte
11.2 cm
Gewicht
900 g

Camera

Type
Kleur - Dag en nacht - vast - openlucht - stof / vandalisme / waterbestendig
Digitale video-indeling
MJPEG, H.264, H.265
Max digitale videoresolutie
3840 x 2160
Bewegingsdetectie
Ja
Belichtingsbereik
1/3 sec. - 1/100000 sec.
Minimale verlichting
0.003 lux - kleur
0 lux - IR
Infrarood LED's
2
Infrarood afstand
40 m
Resolutie digitale video-opname
1280 x 720, 3840 x 2160, 640 x 480
Framesnelheid (max)
30 frames per seconde
Voorzieningen
Waarschuwingen per e-mail, NAS alerts, FTP waarschuwingen, geluidsalarm, ONVIF (profiel G)-steun, ONVIF (S-profiel)-steun, ONVIF (T-profiel) -ondersteuning, NVR-Ready, Wide Dynamic Range (WDR), achtergrondlichtcompensatie (BLC), Highlight Compensation (HLC)

Beeldsensor

Type
8 MP PS CMOS 1/1.8"
Effectieve pixels
3840 x 2160

Lensconstructie

Type
Gemotoriseerde zoom
Optisch in-/uitzoomen
4.2 x
Brandpuntlengte
2.8 mm - 12 mm
Horizontaal gezichtsveld (graden)
45 - 108
Verticaal gezichtsveld (graden)
26 - 58

Interfaces

Netwerkinterface
Ethernet 10Base-T/100Base-TX
Netwerkprotocollen
IPv4, IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, P2P, QOS, IGMP, Bonjour, PPPoE

Uitbreiding / Aansluiting

Poorten
LAN/voeding - RJ-45
Composietvideo
Audio line in
Audio line out
Ondersteunde geheugenkaarten
microSD-kaart

Diversen

Conformiteitsnormen
IP67, IK10, IEEE 802.3af

Stroom

Vereisten voeding
12 V gelijkstroom / PoE (power over ethernet)

Omgevingsparameters

Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
60 °C
Relatieve vochtigheidsgraad (besturing)
0 - 95%
