Productnummer: 3466913

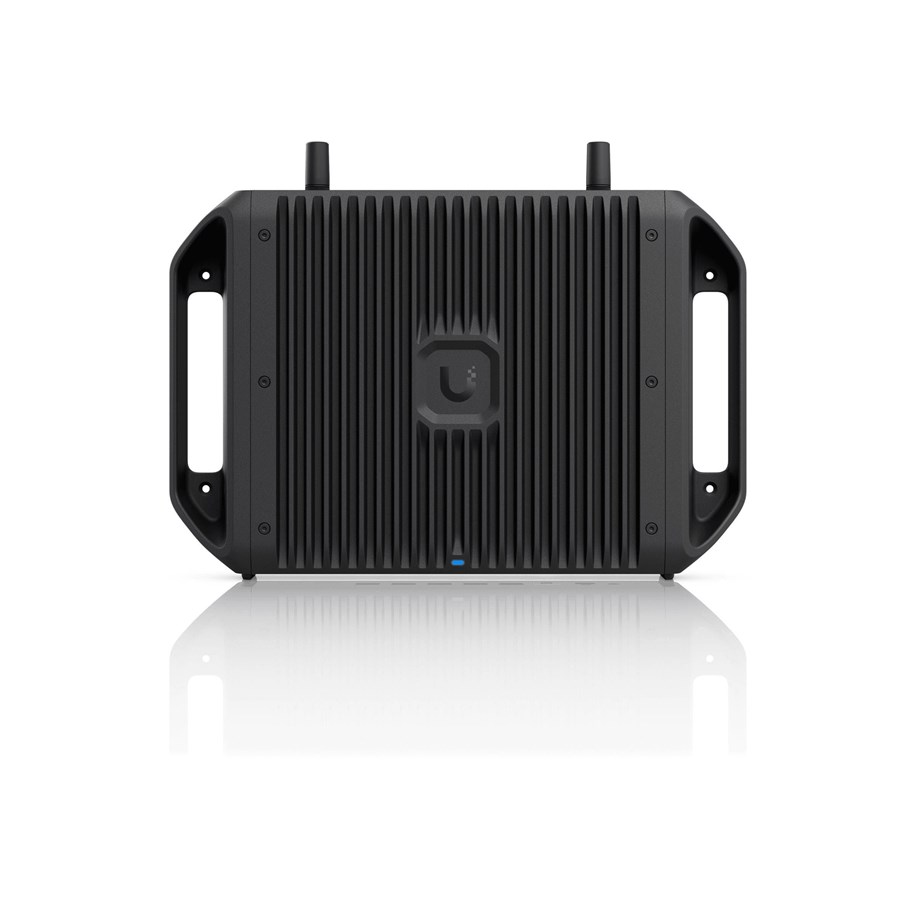

Ubiquiti UniFi - gateway - industrial - Wi-Fi 7 Bluetooth - cloud-managed
Gateway, industrieel, 9 poorten, 10GbE, 2.5GbE, Wi-Fi 7, Wi-Fi 7, Bluetooth, 2.4 GHz, 5 GHz, beheerd in Cloud, wandmontage, voor P/N: UACC-UCG-Industrial-RM
622,42 €
514,40 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Inclusief oplader
The Ubiquiti UniFi UCG-Industrial is a versatile network device engineered for dynamic industrial environments. With the ability to manage over 50 devices, including cameras and hubs, it supports a substantial number of concurrent users, making it ideal for busy settings. The network performance ensures reliable connections and coverage area of up to 115 sq.m, enabling seamless connectivity whether wired or wireless.Designed to withstand extreme temperatures, this device operates efficiently in environments ranging from -30°C to 50°C with a humidity range of 5-95%. It features an internal antenna with two units, ensuring solid performance while being wall mountable for convenient installation. The UCG-Industrial offers a wide array of networking protocols, including Wi-Fi 6 and Wi-Fi 7, along with robust security measures, making it a reliable choice for businesses looking to enhance their network infrastructure.
Producent
Productnummer
3466913
Model
UCG-Industrial
EAN
810177162827
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Ubiquiti UniFi - gateway - industrieel - Wi-Fi 7, Bluetooth - beheerd in Cloud
Type apparaat
Gateway
Formfactor
Wandmontage
Lokalisatie
Verenigde Staten
Processor
ARM Quad Core Cortex-A73 - 2.2 GHz
Flashgeheugen
3 GB
Aantal poorten
9
Protocol voor gegevenskoppeling
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth
Frequentieband
2.4 GHz, 5 GHz
Prestaties
IPS-verwerking: 5 Gbps
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Capaciteit
Beheerde apparaten: 50+
Beheerde camera's: 28
Beheerde hubs: 50
Gelijktijdige gebruikers: 500+
Beheerde camera's: 28
Beheerde hubs: 50
Gelijktijdige gebruikers: 500+
Meegeleverde accessoires
Voet
Ondersteund Power Over Ethernet (PoE)
PoE++
Stroom
100-240 Volt wisselstroom V
Afmetingen (BxDxH)
30.79 cm x 20.35 cm x 4.37 cm
Gewicht
2.4 kg
Ontworpen voor
P/N: UACC-UCG-Industrial-RM
Algemeen
Type apparaat
Gateway
Breedte
30.79 cm
Diepte
20.35 cm
Hoogte
4.37 cm
Gewicht
2.4 kg
Lokalisatie
Verenigde Staten
Processor / Geheugen / Opslag
Processoren geïnstalleerd
ARM Quad Core Cortex-A73 2.2 GHz
Flashgeheugen
3 GB
Netwerk
Model
Wandmontage
Aantal poorten
9
Connectiviteit
Met bekabeling, draadloos
Protocol voor gegevenskoppeling
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth
Beheerd in Cloud
Ja
Frequentieband
2.4 GHz, 5 GHz
Max. afdekgebied
Tot 115 m²
Prestaties
IPS-verwerking: 5 Gbps
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Maximale gegevenssnelheid (2,4 GHz): 688 Mbps
Maximale gegevenssnelheid (5 GHz): 4,3 Gbps
Capaciteit
Beheerde apparaten: 50+
Beheerde camera's: 28
Beheerde hubs: 50
Gelijktijdige gebruikers: 500+
Beheerde camera's: 28
Beheerde hubs: 50
Gelijktijdige gebruikers: 500+
Statuslampjes
Ethernetlink/activiteit, microSD, SFP+, simstatus, systeem
Voorzieningen
Firewall-beveiliging, toepassing-bewuste laag 7 firewall, DPI & verkeersidentificatie, zone-gebaseerde firewall geavanceerde filtering, inhoud filteren, Intrusion Prevention System (IPS), Intrusion Detection System (IDS), advertentieblokkering, QoS, IGMP proxy, reset-knop, zonder ventilator, 270 W PoE-energietoewijzing
Authentificatiemethode
RADIUS, RADSEC
Conformiteitsnormen
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Antenne
Antenne
Intern
Hoeveelheid antennes
2
Communicatie
Ondersteunde flash-geheugenkaarten
microSD
Uitbreiding / Aansluiting
Interfaces
1 x 10 Gigabit Ethernet - SFP+ (WAN)
1 x 10 Gigabit Ethernet - RJ-45 (WAN)
1 x 2.5 GBase-T - RJ-45 (WAN)
2 x 2.5 GBase-T (PoE+) - RJ-45
2 x 2.5 GBase-T (PoE+++) - RJ-45
1 x 10GBase-T (PoE+++) - RJ-45
1 x 10 Gigabit Ethernet - SFP+
1 x 10 Gigabit Ethernet - RJ-45 (WAN)
1 x 2.5 GBase-T - RJ-45 (WAN)
2 x 2.5 GBase-T (PoE+) - RJ-45
2 x 2.5 GBase-T (PoE+++) - RJ-45
1 x 10GBase-T (PoE+++) - RJ-45
1 x 10 Gigabit Ethernet - SFP+
Diversen
Meegeleverde accessoires
Voet
Conformiteitsnormen
IC, FCC, NDAA
Stroom
Ondersteund Power Over Ethernet (PoE)
PoE++
Voeding
Interne stroomvoorziening
Vereiste netspanning
100-240 Volt wisselstroom V
Omgevingsparameters
Min. gebruikstemperatuur
-30 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Informatie over Compatibiliteit
Ontworpen voor
P/N: UACC-UCG-Industrial-RM
