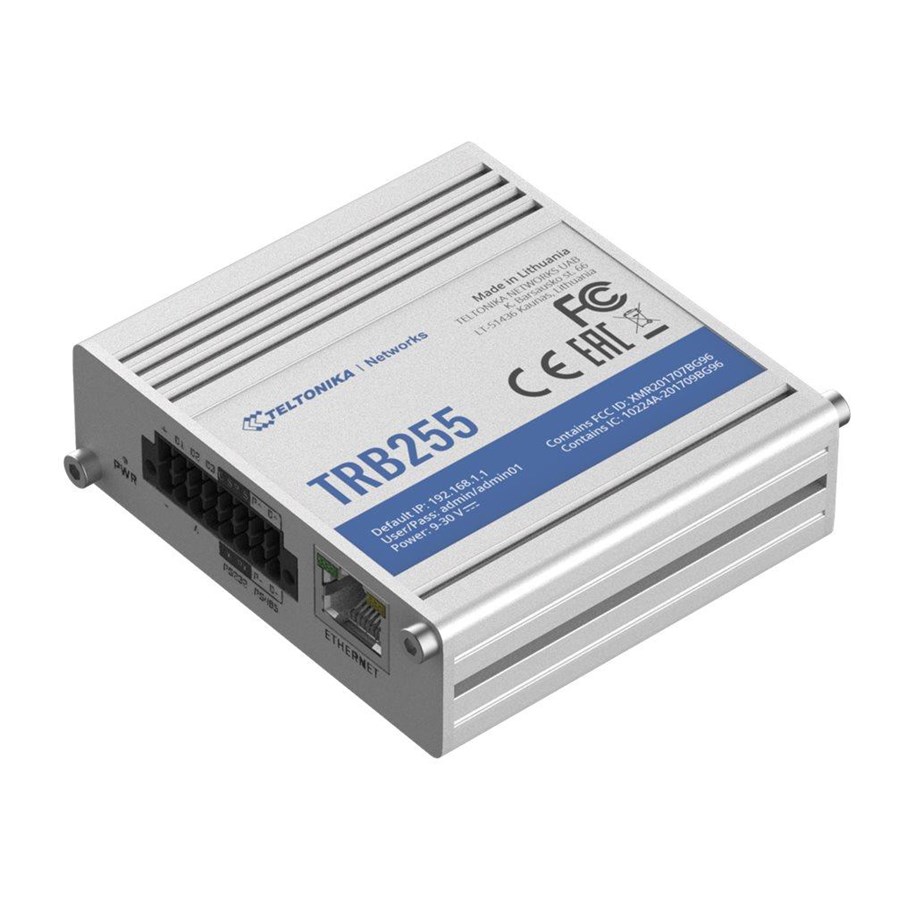

Teltonika TRB255 - gateway
Gateway, 100Mb LAN, RS-232, RS-485, LTE, 4G, gelijkstroom
149,08 €
123,21 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
TRB255 can be used to integrate modern and legacy industrial equipment into one solution via RS232, RS485, and Ethernet interfaces. This industrial LTE Cat M1 and NB-IoT gateway is backward compatible to EGPRS (2G) networks. It can still be used with 2G network, however in case it gets shut down, there is a possibility to switch to LPWAN connectivity options.
TRB255 has a wide range of industrial and networking features such as Modbus, SMS control, Firewall, OpenVPN and more. This product is compatible with the Teltonika Networks Remote Management System (RMS).
TRB255 has a wide range of industrial and networking features such as Modbus, SMS control, Firewall, OpenVPN and more. This product is compatible with the Teltonika Networks Remote Management System (RMS).
Producent
Productnummer
2915284
Model
TRB255000000
EAN
4779027312767
Productbeschrijving
Teltonika TRB255 - gateway - LTE
Type apparaat
Gateway
Formfactor
Extern
Processor
1 x Qualcomm QCA9531 - 650 MHz
RAM
64 MB
Flashgeheugen
16 MB
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, RS-232, RS-485
Mobiele breedbandtoegang
Ja
Generatie
4G
Mobiele protocol
LTE
Meegeleverde accessoires
GNSS-antenne, LTE-antenne, inbussleutel
Stroom
DC 9 - 30 V
Afmetingen (BxDxH)
8.3 cm x 7.42 cm x 2.5 cm
Gewicht
165 g
Algemeen
Type apparaat
Gateway
Ingebouwde apparaten
Beidou, QZSS, GPS / GLONASS / Galileo
Breedte
8.3 cm
Diepte
7.42 cm
Hoogte
2.5 cm
Gewicht
165 g
Processor / Geheugen / Opslag
Processoren geïnstalleerd
1 x Qualcomm QCA9531 650 MHz
Max. aantal ondersteund
1
RAM
64 MB
Flashgeheugen
16 MB
Netwerk
Model
Extern
Connectiviteit
Draadloos, met bekabeling
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, RS-232, RS-485
Netwerk-/transportprotocol
TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, ARP, SMTP, FTP, DHCP, DNS, HTTP, HTTPs, IPv4, IPv6
Routingprotocol
Statische IP-routing
Protocol voor beheer op afstand
Telnet, HTTP, HTTPS, SSH, SSH-2, CLI, JSON-RPC, Modbus, DHCP, MQTT
Statuslampjes
Voeding, 4G, 2G, signalering, gegevens
Voorzieningen
Datatransport, firewall-beveiliging, DHCP-ondersteuning, NAT-ondersteuning, VPN-ondersteuning, auto-uplink (auto MDI/MDI-X), MAC adresfiltering, firmware die kan worden opgewaardeerd, IPSec NAT-Traversal (NAT-T), doorgeschakelde poorten, reset-knop, DHCP relay, monteerbaar op DIN-rails, statische routing, Firmware Over-the-Air (FOTA), SMS afstandsbediening, systeemlogboek, ondersteuning IP-veiligheid (IPSec), DMZ-ondersteuning, brugmodus, OpenVPN-client, OpenVPN-server, Teltonika Remote Management System (RMS), aluminium behuizing, MQTT-ondersteuning
Encryptie-algoritme
DES, drievoudige DES-codering, TLS, SSL 3.0, 128-bits AES, 192-bits AES, 256-bits AES, IKEv2, IKEv1
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, X.509
Antenne
Antenne
Kan extern worden losgemaakt
Hoeveelheid antennes
2
Communicatie
Mobiele breedbandtoegang
Ja
Generatie
4G
Mobiele protocol
LTE
Internet of Things (IoT)
Geschikt voor Internet of Things (IoT)
Ja
Communicatietechnologieën
LTE Cat M1
Uitbreiding / Aansluiting
Uitbreidingssleuven
2 (totaal) / 2 (vrij) x simkaart
Interfaces
1 x RS-485 - eindblok
2 x antenne - SMA
1 x RS-232 - eindblok
1 x netwerk - RJ-45
2 x antenne - SMA
1 x RS-232 - eindblok
1 x netwerk - RJ-45
Diversen
Meegeleverde accessoires
GNSS-antenne, LTE-antenne, inbussleutel
Kabels meegeleverd
1 x netwerkkabel - 1.5 m
Conformiteitsnormen
RoHS, X.509
Stroom
Voeding
Externe stroomadapter
Vereiste netspanning
DC 9 - 30 V
Energieverbruik tijdens gebruik
5 Watt
