Productnummer: 2551491

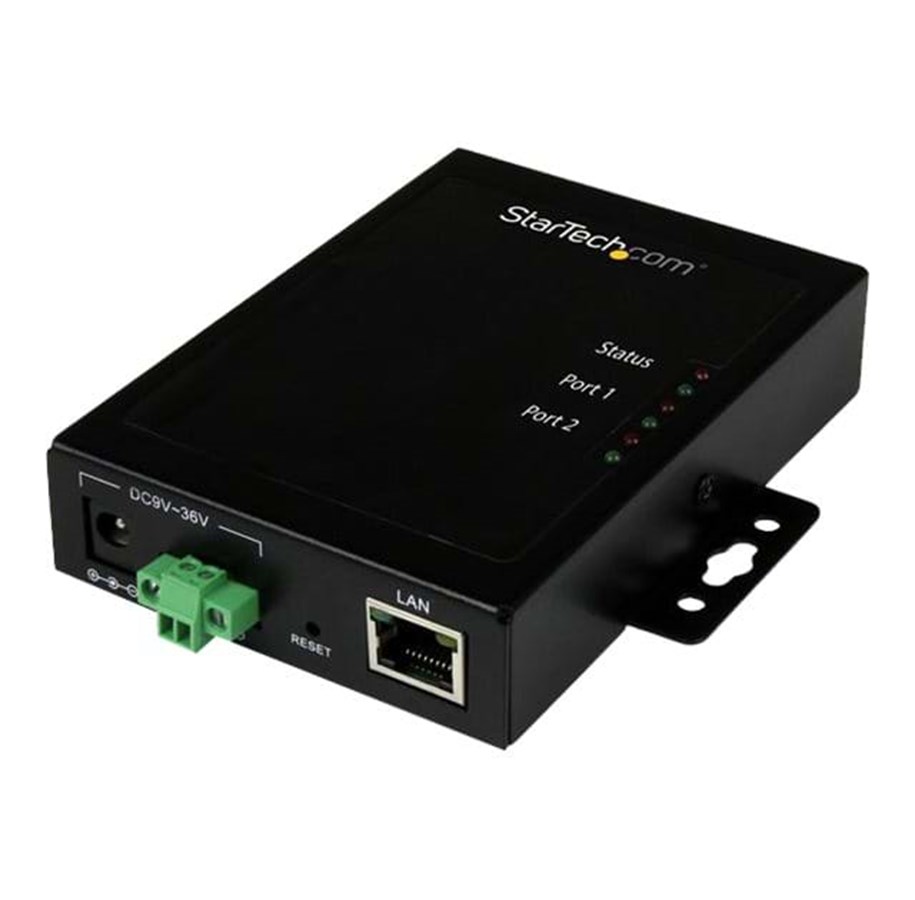

StarTech.com 2 Port Serial-to-IP Ethernet Device Server

RS232, Metal and Mountable, Serial Device Server, RS232 Serial-Over-IP (NETRS2322P), Device server, 2 ports, 100Mb LAN, RS-232, AC 120/230 V / DC 9, 36 V, in wall

256,90 € 212,31 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
Inclusief oplader
Charger included

Connect, configure and manage two remote RS232 serial devices, over an IP network. This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it's perfect for factory and industrial settings.If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.

Producent
Productnummer
2551491
Model
NETRS2322P
EAN
0065030864145
Naar de website van de producent
Productbeschrijving
Startech 2 Poorts Serieel naar IP Ethernet apparaatserver - RS232 - metaal en monteerbaar - RS232 Serieel over IP - apparaatserver
Type apparaat
Apparaatserver
Formfactor
Voor inbouwmontage
Lokalisatie
Australië, Noord-Amerika, Verenigd Koninkrijk, Europa
Aantal poorten
2
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, RS-232
Meegeleverde accessoires
Stroomverdelingsblok
Benodigd besturingssysteem
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Stroom
120/230V wisselstroom / 9-36V gelijkstroom
Stroomredundantie
Ja
Afmetingen (BxDxH)
8 cm x 11.3 cm x 2.5 cm
Gewicht
310 g

Algemeen

Type apparaat
Apparaatserver
Breedte
8 cm
Diepte
11.3 cm
Hoogte
2.5 cm
Gewicht
310 g
Kleur bijvoegsel
Zwart
Lokalisatie
Australië, Noord-Amerika, Verenigd Koninkrijk, Europa

Netwerk

Model
Voor inbouwmontage
Aantal poorten
2
Connectiviteit
Met bekabeling
Gegevensoverdrachtsnelheid
460.8 Kbps
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, RS-232
Netwerk-/transportprotocol
TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP
Protocol voor beheer op afstand
Telnet
Statuslampjes
Status, LAN, link/activiteit
Voorzieningen
Full-duplexcapaciteit, automatische onderhandeling, auto-uplink (auto MDI/MDI-X), 15 KV Electrostatic Discharge Protection, reset-knop, 8 KV Contact Electrostatic Discharge Protection
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u

Uitbreiding / Aansluiting

Interfaces
2 x RS-232 - DB-9
1 x 100Base-TX - RJ-45

Diversen

Meegeleverde accessoires
Stroomverdelingsblok
Conformiteitsnormen
FCC, RoHS, WEEE, RCM

Stroom

Voeding
Externe stroomadapter
Stroomredundantie
Ja
Vereiste netspanning
120/230V wisselstroom / 9-36V gelijkstroom

Software / Systeemvereisten

Software meegeleverd
Stuurprogramma's & hulpprogramma's, Virtual COM-software (alleen Windows)
Benodigd besturingssysteem
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
85 °C

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
