Productnummer: 3514999

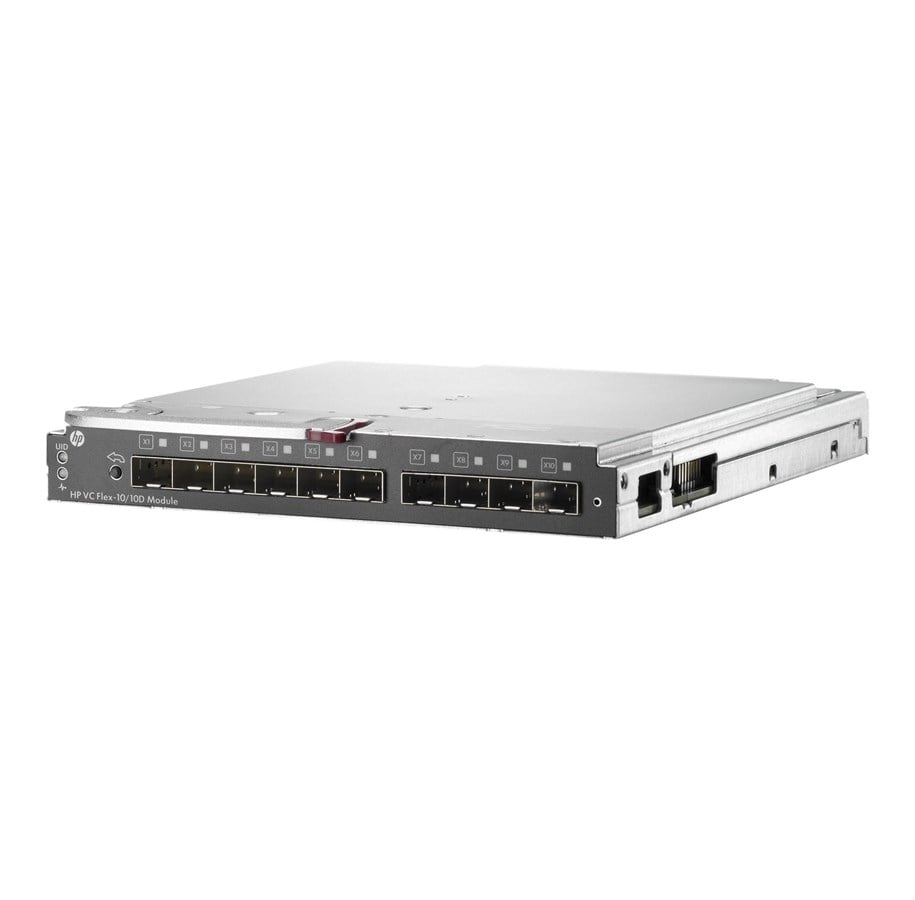

HP E Virtual Connect Flex-10/10D Module
Ontlastingtoestel voor belasting, 10GbE, insteekmodule, voor P/N: 681844-B21#ABA, 681844-B21#ABJ, 681844-B21#ACF, 681844-B21#AKM, 681844-B22, AD361DR
735,70 €
608,02 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 5 - 6 werkdagen levertijd
Simplify and make your data center change-ready. The HPE Virtual Connect Flex-10/10D module for c-Class BladeSystem allows administrators to fine-tune network bandwidth at the server edge. VC Flex-10/10D modules converge traffic over high speed 10 Gb connections to servers with HPE FlexFabric adapters. Each module provides four adjustable connections to each 10 Gb server port. Eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to an upstream FCoE bridge. Avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and fiber channel switches, extension modules, cables and software licenses. Virtual connect wire-once connection management is built-in, enabling server adds, moves, and replacement in minutes instead of days.
Producent
Productnummer
3514999
Model
639852-001
EAN
5711045738555
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
HPE Virtual Connect Flex-10/10D Module - ontlastingtoestel voor belasting
Type apparaat
Ontlastingtoestel voor belasting
Formfactor
Insteekmodule
Protocol voor gegevenskoppeling
10 Gigabit Ethernet
Capaciteit
MAC-adressen: 128000
IGMP-groepen: 1000
IGMP-groepen: 1000
Afmetingen (BxDxH)
9.279 cm x 26.77 cm x 2.794 cm
Gewicht
1.27 kg
Ontworpen voor
P/N: 508664-B21, 508665-B21, 508665R-B21, 536841-B21, 658960-S21, 681840-B21, 681842-B21, 681842R-B21, 681844-B21, 681844-B21#ABA, 681844-B21#ABJ, 681844-B21#ACF, 681844-B21#AKM, 681844-B21#B19, 681844-B22, 696908-B21, 696909-B21, 763850-B21, AD361D, AD361DR
Algemeen
Type apparaat
Ontlastingtoestel voor belasting
Breedte
9.279 cm
Diepte
26.77 cm
Hoogte
2.794 cm
Gewicht
1.27 kg
Netwerk
Model
Insteekmodule
Connectiviteit
Met bekabeling
Gegevensoverdrachtsnelheid
10 Gbps
Protocol voor gegevenskoppeling
10 Gigabit Ethernet
Netwerk-/transportprotocol
iSCSI
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, SNMP 2, CLI
Communicatiemodus
Full duplex
Capaciteit
MAC-adressen: 128000
IGMP-groepen: 1000
IGMP-groepen: 1000
Voorzieningen
LDAP-ondersteuning, VLAN-ondersteuning, IGMP-spionage, beheerbaar, stapelbaar, firmware die kan worden opgewaardeerd, Jumbo Frames ondersteuning, Link Aggregation Control Protocol (LACP)
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS, TACACS+
Conformiteitsnormen
IEEE 802.2, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3aq
Uitbreiding / Aansluiting
Interfaces
16 x 10Gb Ethernet
10 x 10Gb Ethernet
4 x 10Gb Ethernet
1 x management
1 x management
10 x 10Gb Ethernet
4 x 10Gb Ethernet
1 x management
1 x management
Diversen
Conformiteitsnormen
FCC klasse A-gecertificeerd, UL, TUV, CISPR 22 Klasse A, cUL, CB, FCC Part 15, UL 60950-1, EN 60950-1, WEEE, MIC Class A, CSA C22.2 No. 60950-1, AS/NZS 3548 Klasse A, VCCI Class A, EN 55022 Class A
Software / Systeemvereisten
Software meegeleverd
HP Virtual Connect Manager
Omgevingsparameters
Min. gebruikstemperatuur
10 °C
Max. gebruikstemperatuur
35 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Informatie over Compatibiliteit
Ontworpen voor
P/N: 508664-B21, 508665-B21, 508665R-B21, 536841-B21, 658960-S21, 681840-B21, 681842-B21, 681842R-B21, 681844-B21, 681844-B21#ABA, 681844-B21#ABJ, 681844-B21#ACF, 681844-B21#AKM, 681844-B21#B19, 681844-B22, 696908-B21, 696909-B21, 763850-B21, AD361D, AD361DR
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
