Productnummer: 2803788

Digi PortServer TS 4

Apparaatserver, 4 poorten, 100Mb LAN, RS-232, PPP

684,57 € 565,76 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The PortServer TS 2/4 family delivers simple, reliable and cost-effective network connectivity for multiple serial devices. It addresses the growing need to connect individual devices to the network over industry standard Ethernet in many applications - including retail/point-of-sale, building control and medical point-of-care.Part of Digi's broad device server offering, PortServer TS 2/4 delivers standard serial-to-Ethernet connectivity and is ideal for applications requiring COM ports, serial tunneling, or where TCP Socket, UDP Socket, or UDP Multicast functionality is needed. Digi's patented RealPort technology delivers the industry's most robust, reliable and versatile COM port control and management. RealPort makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing software applications to work with networked device servers instead of requiring a host adapter.

Producent
Productnummer
2803788
Model
70002045
Naar de website van de producent
Productbeschrijving

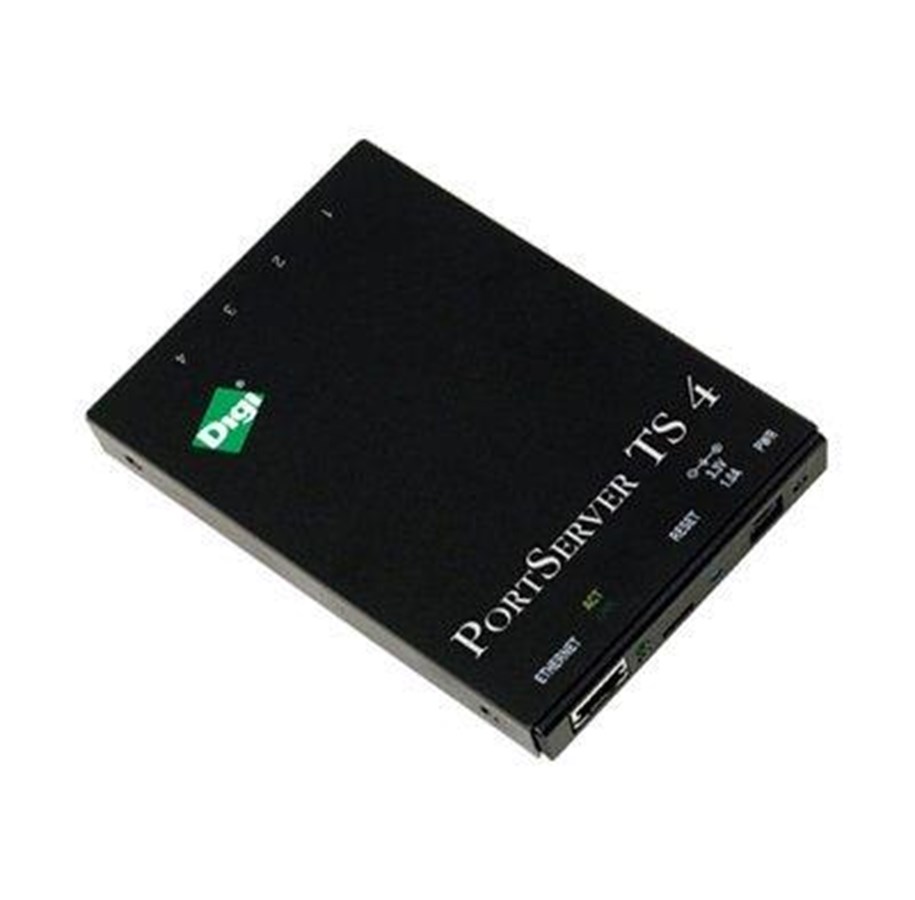

Digi PortServer TS 4 - apparaatserver
Type apparaat
Apparaatserver
Formfactor
Extern
Aantal poorten
4
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, RS-232, PPP
Benodigd besturingssysteem
SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, Compaq Tru64 UNIX, HP-UX, Linux, Microsoft Windows NT, Microsoft Windows 98/ME, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003
Stroom
120/230 V wisselstroom
Afmetingen (BxDxH)
8.5 cm x 2.4 cm x 13.3 cm
Gewicht
64 g

Algemeen

Type apparaat
Apparaatserver
Breedte
8.5 cm
Diepte
2.4 cm
Hoogte
13.3 cm
Gewicht
64 g

Netwerk

Model
Extern
Aantal poorten
4
Connectiviteit
Met bekabeling
Gegevensoverdrachtsnelheid
230 Kbps
Protocol voor gegevenskoppeling
Ethernet, Fast Ethernet, RS-232, PPP
Netwerk-/transportprotocol
TCP/IP, UDP/IP
Protocol voor beheer op afstand
SNMP, Telnet, HTTP
Statuslampjes
Voeding, link/activiteit
Voorzieningen
Datatransport, DHCP-ondersteuning, RARP-ondersteuning, beheerbaar, RealPort-technologie

Uitbreiding / Aansluiting

Interfaces
1 x 100Base-TX - RJ-45
4 x RS-232 - RJ-45

Diversen

Conformiteitsnormen
EN 60950, UL 1950, CSA 22.2 No. 950, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, AS/NZS 3548

Stroom

Voeding
Externe stroomadapter
Vereiste netspanning
120/230 V wisselstroom

Software / Systeemvereisten

Benodigd besturingssysteem
SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, Compaq Tru64 UNIX, HP-UX, Linux, Microsoft Windows NT, Microsoft Windows 98/ME, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
60 °C
Luchtvochtigheidsgraad bij gebruik
5 - 90%

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
